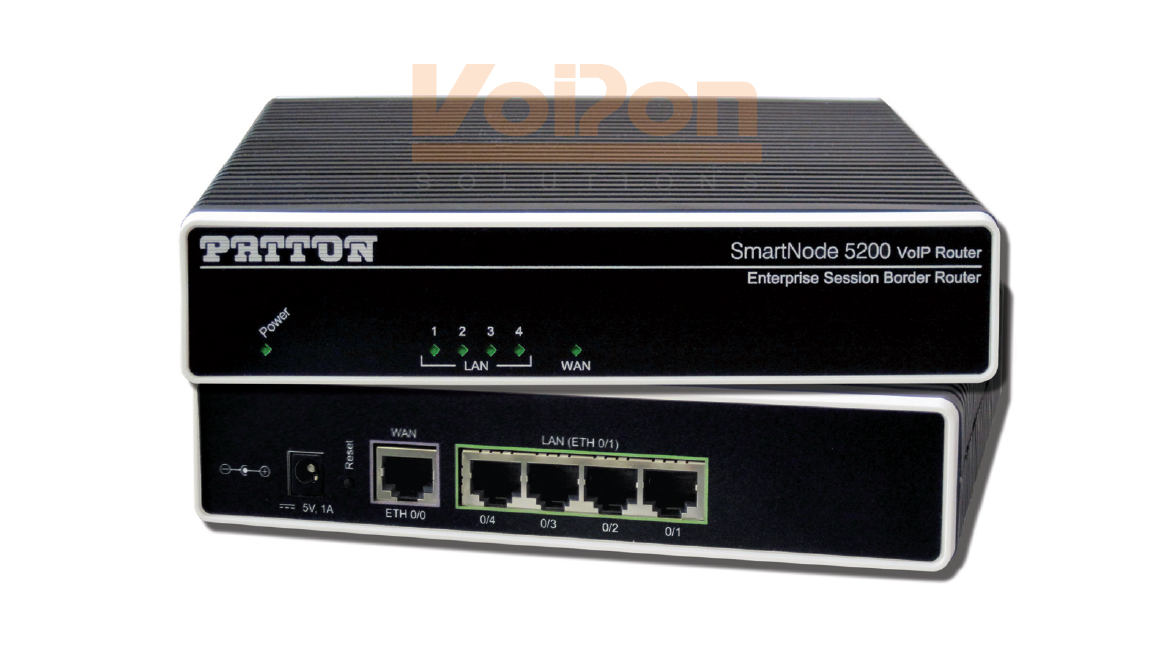

Patton SmartNode 5200 Session Border Router

Write Review  No reviews

Share Tweet

£908.30 exc. VAT £1,089.96 inc. VAT Select currency Quantity Shipping

Availability: Discontinued

SmartNode 5200 Enterprise Session Border Router

• IP Routing--RIP v1/v2, VRRP, Policy Based Routing, Loopback Interface.
• VPN Tunnels--Standard IPsec with AH and ESP ensures maximum protection when traversing unsecured networks.
• Strong Encryption--DES, 3DES, and AES offer standards-based encryption algorithms from 56 to 256 bits.
• QoS/CoS Profiles--Configurable burst tolerance, bandwidth guarantees plus reduce per flow traffic jitter as required by the application
• Configurable Security Profiles--Built-in IP address and IP port filtering, ACLs and DoS attack detection creates a comprehensive security environment.
• Enhanced IP services--DNS resolver and relay, NAT/NAPT, dynamic DNS, and DHCP server, ease integration.
• 10/100 Ethernet--One 10/100 WAN Ethernet port and four 10/100 LAN Ethernet ports

Applications

Application Diagram

The SN5200 enables Universal SIP Trunking and provides a single Integrated Access Device with features like IP Routing, Redundancy, Security and a SIP registrar for survivability. The Enterprise can use a single conduit for both its voice and data traffic thus making the most cost efficient use of its resources. By using two SN5200 with VRRP enabled an Enterprise could connect to two ITSP and provide for failover incase the primary SIP provider trunk has a problem.

• 1 10/100BaseT WAN port, 4 10/100 LAN Ethernet Ports
• Complete IP Access Router
• DHCP Client & server
• Packet Fragmentation
• Static Firewall
• NAT, NAPT RFC 1631 Access Control Lists
• DMZ Port


Quality of Service

• DownStreamQoS™
• Voice priority
• Traffic management, shaping and policing
• IEEE 802.1p, TOS, DiffServ labeling
• IEEE 802.1Q, VLAN tag insertion/deletion (4096 VLAN IDs, multiple VLAN support

• SIPv2
• SIP call transfer, redirect
• DTMF in-band & out-of-band
• All tones programmable (dial, ringing, busy)

• Web/HTTP, CLI with local console and remote Telnet access
• TFTP configuration & firmware loading
• SNMP MIB II and product MIB
• Secure autoprovisioning for both firmware and unit/subscriber configuration
• Built-in diagnostic tools (trace, debug, call generator)

• Regular expression based call routing and number manipulation
• Number blocking
• Short-dialing
• Digit collection, distribution and hunt groups
• transparent line extension

• CODEC G.711 a-law/mu-law, G.723, G.729ab
• G.726, G.727. T.38 fax relay
• G.711 transparent fax and bypass

• CPU Motorola MPC875 @ 133 MHz
• Memory 32MB SDRAM/8MB Flash
