Availability: In stock

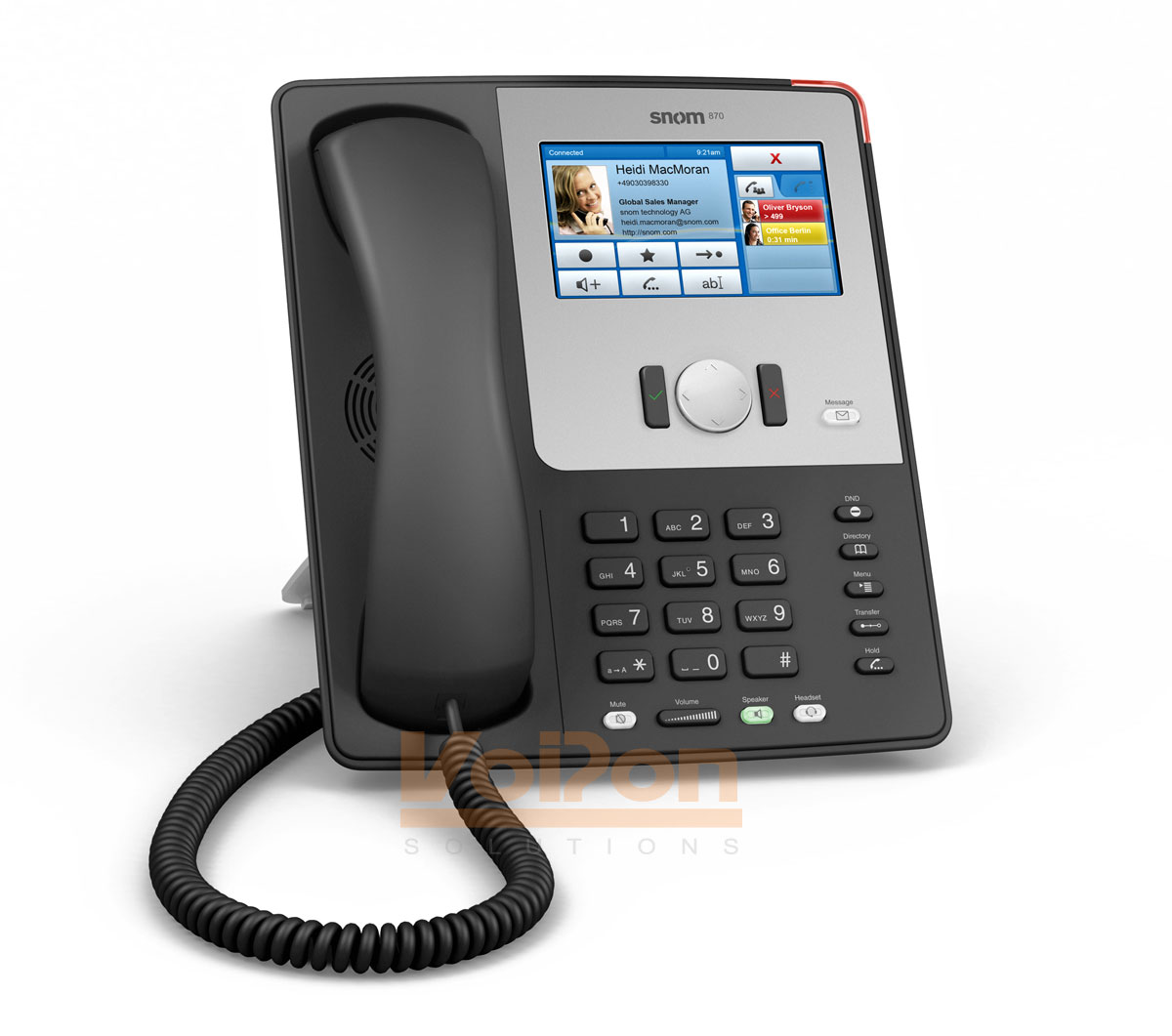

The snom 870 VoIP telephone is the latest in modern communication, designed for maximum ease of use. The big hi-res colour screen is larger than on the 820 and offers improved technical spec.
The new screen design allows snom 870 users to easily handle complex tasks like swapping calls or creating conference calls for three callers via a simple "drag and drop"arrangement.
Colour Choice
The Snom 870 is available in black or white. Please click to enlarge images below:

Benefits of the Snom 870
|
|
Structured address book ensures each caller can be quickly identified; more space for extra information such as company name, e-mail and other items. The control elements on the screen are created for active call handling, so the correct contact is selected, even in multiple call situations.
|
|
|
|
|
|
Audio quality on the snom 870 is of the high standard that snom customers expect:
- Wide-band audio with silence suppression and voice activity detection.
- Integrated XML mini browser in snom 870 provides wide range of additional applications. - Whether it be the control of an external usb device or to access the latest share prices, the snom 870 offers buckets of space for extras.
|
|
|
|
|
|
The snom 870 is ready for every situation. Normal power supply, Power over Ethernet (PoE) or WLAN via USB - the snom 870 can fit into any working environment. Secure connection via VPN, TLS and SRTP prevents the recording of data. |
|
|
|
|
|
The dual 33° or 55° angle sturdy metal footstand makes all control elements easily visible and accessible from almost any angle. |
|
|
|
|
|
Security is important in the Snom 870 - features like secure VPN, TLS and SRTP
are integrated into the 870's firmware.
|
|
|
|
|
|
The snom 870 offers a huge range of business-specific functions:
- 3-party conferencing
- Polyphonic ringtones
- Up to twelve different SIP identities.
- User interface of the snom 870 designed for clear and intuitive operation
|
|
|
|
|
|
Phone keys arranged to see and reach from almost any angle, whether or not the snom 870 is placed with the footstand in the high or low position.
|
|
|
|
|
|
Polished look and feel as a result of cooperation with
renowned German industrial designers. The new look of the snom 870 was designed to the highest expectations in
functionality and timeless beauty.
|
|
|
|
Please note that all Snom Phones come with a Power Adaptor and are PoE compatible
Note: The Snom 870 is interoperable with Windows OCS. Please see the following links:
Main Features of the Snom 870
- 4.3" TFT touch screen with 24 bit colour depth
- Easy to use, intuitive user interface
- Wideband Audio
- Gigabit Ethernet Switch
- 2 x Typ A, USB - WLAN ready
- Snom Flexor CTI, snom OCS edition ready
- Power over Ethernet (PoE)
- SIP RFC3261
- Security: SIPS/SRTP, TLS
- STUN, ENUM, NAT, ICE
- National Language Support
- XML Mini Browser
Technical Data
General Features
- Weight: approx. 920g (690g without stand)
- Certificates: FCC Class B, CE Mark
- Security: IEC 60950-1:2001, CB test certificate: DE 2-008417
- 1 x LAN, 1 x PC: RJ45 (Ethernet)
- Voltage: 5V DC
- Ethernet: Gigabit Switch, 2 Ports
- Power over Ethernet (PoE): IEEE 802.3af, class 1
- Handset: RJ-4P4C connection
- Headset: RJ4P4C connection
- USB: 2 x type A
User Interface
- High resolution TFT touchscreen colour display
- 4.3", 480 x 272 pixels, 24 bits colour depth
- 29 Keys, 5 LEDs
- 12 virtual freely programmable and 12 variable function keys
- Comfortable and intuitive menu structure
- Call indication with LED
- Caller identification (by display picture)
- LED display for missed and recieved calls and messages
- Extended address book with import and export function
- Speed dialing
- Local dial plan
- List of missed, recieved and incoming calls (each 100 entries)
- Indication of held calls
- Clock with automatic time change, call time indication
- Call rejection (black list)
- Blocking of anonymous callers possible
- Swappping of all calls during an ongoing call
- Auto answer
- Selection of ring tones, VIP tones, integration of customized ring tones
- URL dialing
- National Language Support
- Mute Function
- Hands-free talking (full-duplex)
- Keyboard lock
Additional Features
- WLAN binding via USB Stick
- Hold
- Blind and Attended Transfer
- Hold music (via PBX)
- Redirection
- 3-way Conference on the phone
- Parking, pick-up (via PBX)
- Call back (Busy/Unreachable)
- Client Matter Code (CMC)
- Swap Calls
- Automatic Redial
- Group call anouncements
- Simultaneous use of multiple audio output devices
- snom Flexor CT and snom OCS edition ready
Web Server
- Built in HTTP, HTTPS server
- Remote configuration / Provisioning
- Dialing via Web browser
- Password protection
- Diagnosis (traces, logging, Syslog)
Security, Quality of Service (Qos)
- HTTPS Server/Client
- Transport Layer Security (TLS)
- SRTP (RFC3711), SIPS
- RTCP
- VLAN (802.1 pq)
Codecs and Audio
- Wideband Audio
- G.711 A-Law, µlaw
- G.729A, G.723.1 G.726
- GSM 6.10 (full rate)
- G.722
- Silence Suppression / Voice Activity Detection (VAD)
SIP
- RFC3261 compliant
- UDP, TCP and TLS
- Digest Authentication
- "Loose routing" and "Strict routing" (RFC3262)
- Error code indication
- "Reliability of provisional responses"
- PRACK (RFC3262)
- "Early media support"
- DNS SRV (RFC3263), redundant server support
- "Offer/Answer" (RFC3264)
- "Message Waiting Indication" (RFC3842, "Subscription for MWI events (RFC3265)
- "Dial-state monitoring" (RFC4235)
- DTMF (multi-frequency dial tones) as well as DTMF via SIP INFO
- STUN client (NAT traversal)
- "Event list subscription report" (RFC4662)
- "Bridged Line Appearance (BLA)"
- "Auto provisioning with PnP"
- "Presence/Buddy-list feature"
- "Busy lamp field support (BLF)
Installation
- Automatic software updates
- Automatic loading of setting via HTTP/HTTPS/TFTP
- Completely configurable through Web access
- Static IP, DHCP support
- NTP
Snom IP Phones Comparison Table
|
| Model |
Colours
|
Display Type
|
PoE
|
SIP IDs
|
Large LEDs incoming calls
|
Program
Keys
w/ LEDs
|
EXT
Keyboard
|
Screen Brand
|
Upright Stand
|
Wireless headset adaptor
|
|
Snom 300
 |
B&W
|
Two-line, 16 chars.
|
Y
|
4
|
N
|
6
|
N
|
N
|
Y
|
N
|
|
Snom 320
 |
B&W
|
Hinged two-line char. display with graphical field
|
Y
|
12
|
N
|
12
|
Y
|
N
|
Y
|
Y
|
|
Snom 360
 |
B&W
|
Hinged, backlit graphic display (128x64 px)
|
Y
|
12
|
N
|
12
|
Y
|
Y
|
Y
|
Y
|
|
Snom 370
|
B&W
|
Hinged, backlit, hi-def graphic display (240x128 px)
|
Y
|
12
|
Y
|
12
|
Y
|
Y
|
Y
|
Y
|
|
Snom 821
 |
B&W
|
TFT colour display (3.5 inches, 320*240 pixels)
|
Y
|
4
Prgm
16 Custom
|
Y
|
12
|
N
|
Y
|
Adjustable
foot stand (High or Low Position)
|
Y
|
|
Snom 870
 |
B&W
|
TFT touch screen colour display (4.2 inches, 480*272 pixels, 25 bit colour depth)
|
Y
|
4
Prgm
16 Custom
|
Y
|
12
|
N
|
Y
|
Adjustable
foot stand (High or Low Position)
|
Y
|
