Voipon IAX Trunk on Zycoo ZX Series IPPBX
You are required to create two trunks on a Zycoo ZX Series IPPBX to enable inbound and outbound calls to be routed correctly.
On the Zycoo unit go to Basic – Trunks – Add Trunks

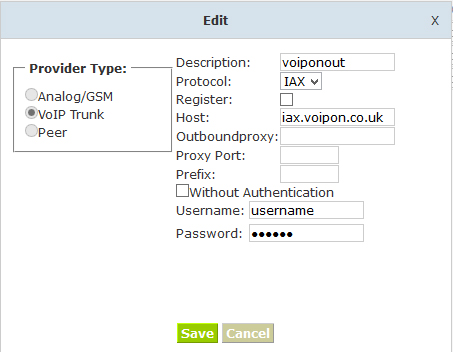

Configure an outbound trunk as below entering your voipon username (e.g. 72222) and password in the appropriate fields.

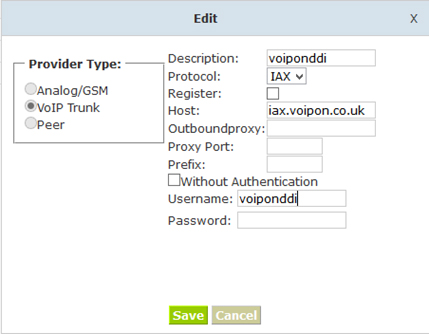

Save and apply the changes and create a second trunk as below. This is required as inbound calls originate from multiple different ip addresses. IMPORTANT NOTE……The description and username should be your voipon and DDI number. Leave password blank.
You are now required to create an outbound rule.
Go to – Basic – Outbound Routes – Add a Dial Rule

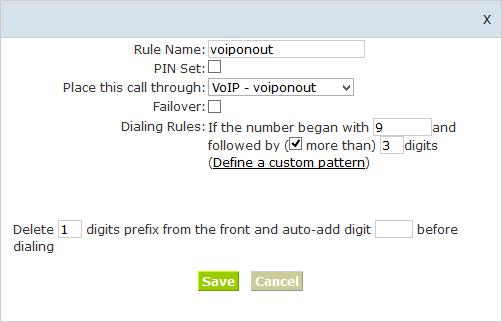

Below is an example where we have stipulated that any number starting with 9 that has more than 3 characters will use the voipon outbound trunk. It also instructs the Zycoo unit to remove the first digit before passing the calls to the voipon service.
Please note that the voipon IAX service expects dialled numbers in the following example format - 4477955xxxxx
Finally you are required to create an inbound rule. Go to Inbound Control – Inbound Routes.

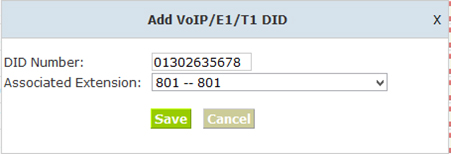

On the VoIP DID’s create DID rules for your voipon iax number.
