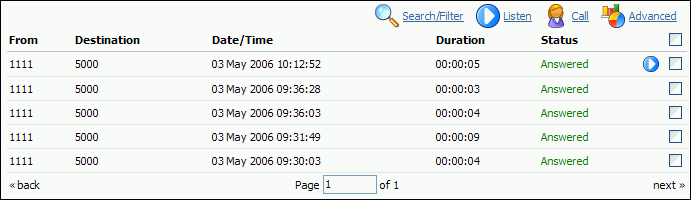

CDR (Call Detail Records) for all placed or received calls on the system. In addition to normal operation an authorized user is able to perform additional actions such as extensive search, listen to recorded calls, call any destinations listed and access advanced features.

In this chapter we will cover:

- Search/Filter

- Listen

- Call

- Advanced

From:

Extension number call was made from

Example: 1111

Field Type: Display

Destination:

Extension number call was made to

Example: 5000

Field Type: Display

Date/Time:

Date and time when call was made

Example: 03 May 2006 10:12:52

Field Type: Display

Duration:

Call duration displayed as Hours:Minutes:Seconds

Example: 00:00:09

Field Type: Display

Status:

Displays call status

Example: Answered

Field Type: Display

This icon is displayed once a call is recorded and 'Delete' or 'Listen' enhanced service is active

This is a box used with the CDR commands to select a desired call

NOTE: Disk Space Used By Call Recording:

With continuously tone 60 seconds:

With continuously silent tone (without sound) 60 seconds:
