Yealink MVC400 S4B/Microsoft Teams Rooms System (YL-MVC400-GEN2)
The Yealink MVC400 is a native and easy-to-use video conferencing solution specially designed for Microsoft Teams rooms. MVC 400 features the native Microsoft Teams-tailored user interface that is easy to be operated with close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join. Together with 8 MEMS microphone arrays and 133 ° field of view, its AI technologies, including face detection, sound localisation and speaker tracking, provide users with high-quality call experience in full-duplex mode. The package includes a high-performance MCore, a touch panel MTouch II, and a USB video bar UVC40, the MVC400 is the optimum choice for small meeting rooms.
Yealink MVC400 Key Features
- Easy Deployment
- 20 MP Camera
- Auto Framing
- Speaker Tracking
- Electric Lens Cap
- 8x e-PTZ Camera
- Device Management

Native Microsoft Teams-Tailored User Interface, Smooth Conference Experience
The native Microsoft Teams-tailored user interface offers a one-touch meeting join. Designed with the idea of multi-function all-in-one, the MTouch II touch panel allows you to easily perform call control, camera control, content sharing and other functions. The MTouch Ⅱ has a built-in Human Motion Sensor that the conference system can automatically wake up and you can immediately start the conference.

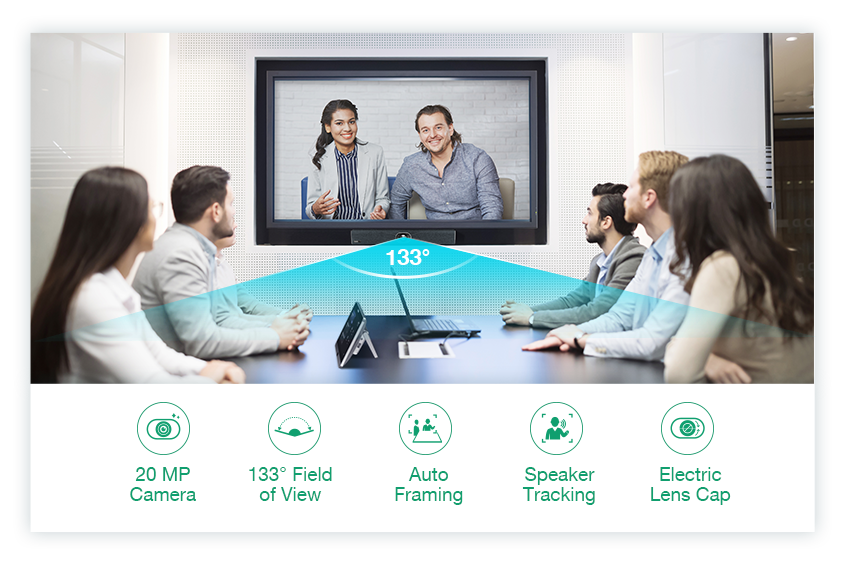

Smart Video Conferencing with AI Technology
Featuring AI technology, including Auto Framing and Speaker Tracking, the UVC40 not only supports framing the groups automatically according to the number and the position of the participants, but also automatically zooms in the speaker without adjusting the camera, enhancing the user focus on the conference.

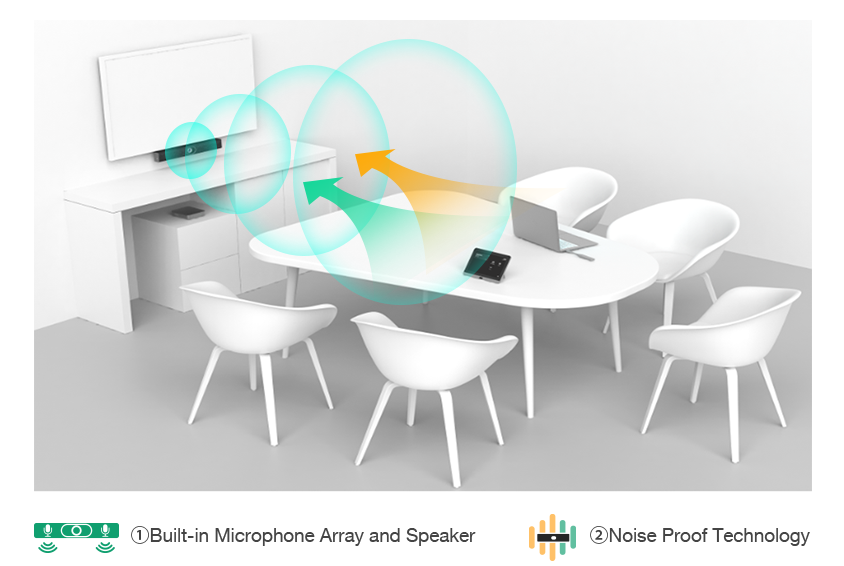

Precise Sound Localisation, Full-Duplex Experience
The 8 MEMS microphone arrays make the UVC40 have stronger noise-proofing ability and dereverberation. The new upgraded beamforming algorithm, together with technology of processing acoustic echo cancellation and dereverberation, brings high quality full-duplex calling and offering more precise voice pickup.

Secure Conference with Electric Lens Cap
The camera’s electric lens cap automatically opens when the video conference starts and remains closed when not in use, securing your conference privacy.

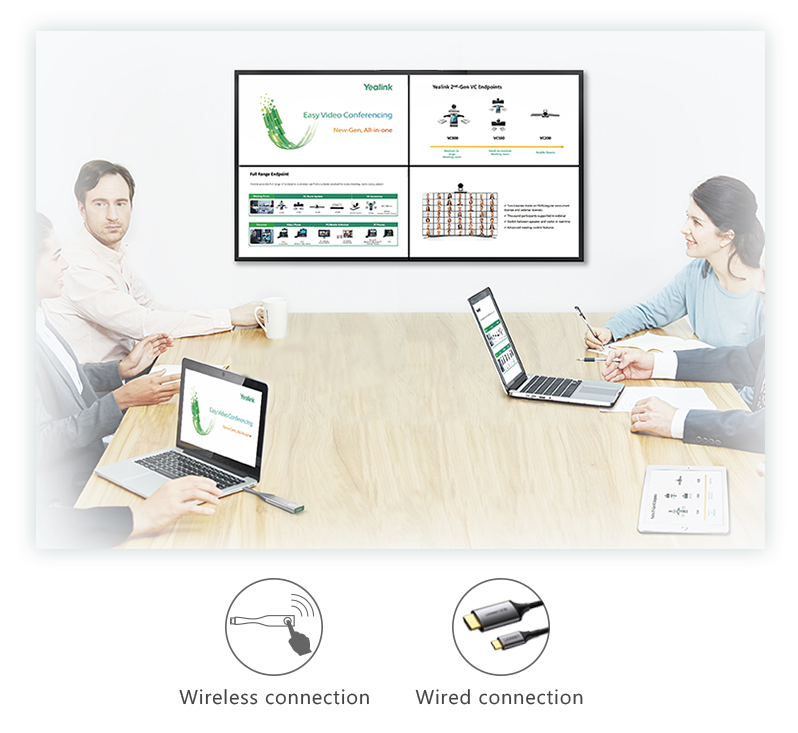

Content Sharing in Real Time
The unique wireless content sharing solution provides participants with maximum flexibility, With a high resolution of 1080P / 30 frames, it provides users with a better content sharing experience. The wired content sharing is also available by connecting to the USB-C port or HDMI port.

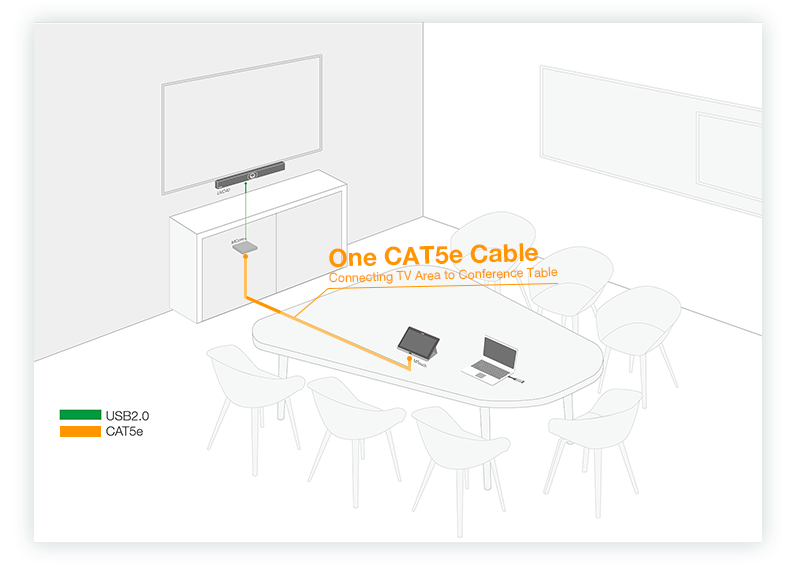

Simple to Deploy, Easy to Use
With the VCH port, MCore is specially designed for small meeting rooms. Its all-in-one design with the feature of cable management ensure the stability of the wired connection, and the most appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e is enough to connect the TV area and the conference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifies the deployment but also effectively reduces deployment costs.

Remote Device Management
This solution supports Yealink Device Management Platform/Cloud Service, whereby you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video devices peripherals on this platform remotely.

Yealink MVC400 Technical Specifications

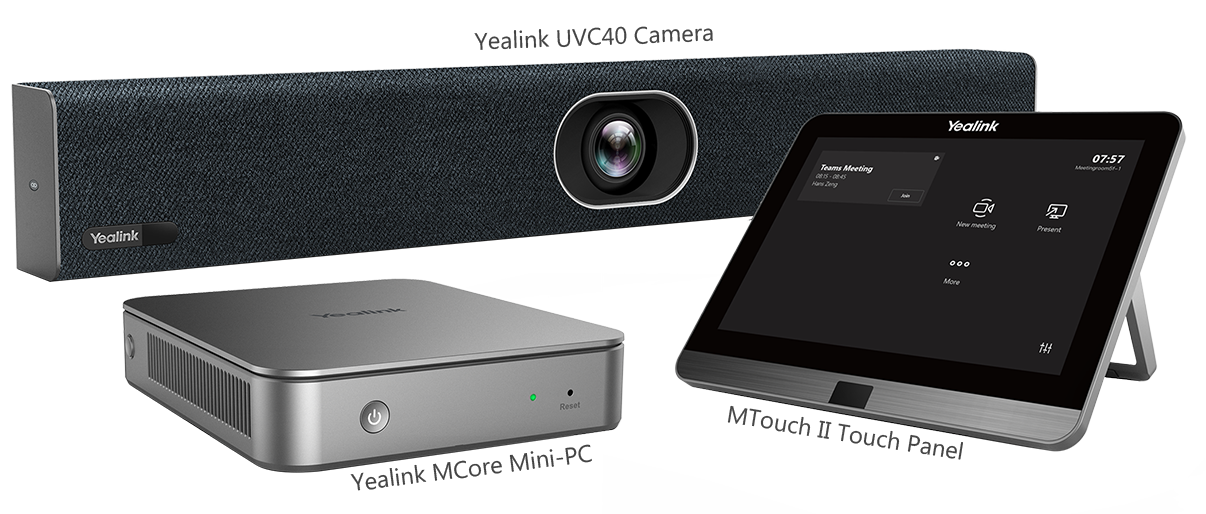

Package Content
- MCore Mini-PC
- MTouch II touch panel
- UVC40 USB video bar
Preload
- Windows 10 IoT Enterprise X64
- Windows 10 IoT Enterprise License
- Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
- Yeallink RoomConnect
MCore Mini-PC
- 8th-gen Intel® QUAD-CORE i5
- Memory: 8GB (2 x 4GB)
- Storage: 128GB SSD
- 2 x HDMI video output with CEC supported
- Bluetooth and WiFi
- 1 x Yealink VCH port (RJ45), connect to MTouch II
- 4 x USB3.0 Type-A
- 1 x 10/100/1000M Ethernet port
- 1 x Power port
- 1 x Security lock slot
- Integrated cable management
MTouch II Touch Panel
- 8-inch IPS screen
- 1280 x 800 resolution
- 10-point capacitive touch screen
- 3.5mm headset jack
- Human Motion Sensor
- Angle adjustable bracket (28° ~ 50°)
- 1080P/30FPS FHD for sharing
- Support wired and wireless content sharing
- Built-in WiFi AP for Yealink wireless presentation device
- HDMI/USB-C video input
UVC40 USB Video Bar
- 20 MP Camera
- 8x e-PTZ camera
- Field of view (diagonal): 133°
- Auto Framing
- Speaker Tracking
- AI Face Enhancement
- Camera presets
- Built-in 8 MEMS microphone array
- Yealink Noise Proof Technology
- Beamforming directed voice pickup technology
- Full-deplex technology
- Echo cancellation technology
- 1 x Line-in (3.5mm)
- 1 x Yealink Microphone port (RJ-45)
- 1 x USB 3.0 Type-B
- 1 x USB 2.0 Type-A
- 1 x Power port
- 1 x Security lock slot
- 1 x Reset slot
- 1 x 2.5m USB 2.0 cable
Package Features
- N.W/CTN: 6.4 Kg
- G.W/CTN: 7.6 Kg
- Carton Meas: 685mm x 356mm x 285mm
Product Dimension (W.D.H)
- MTouch II: 202mm x 151mm x 100mm N.W/CTN: 1kg
- MCore: 168mm x 197mm x 39mm N.W/CTN: 1.35kg
- UVC40: 600mm x 68mm x 82mm N.W/CTN: 2.56kg
