Grandstream GDS3710 IP Door Entry System

Grandstream GDS3710 IP Door Entry System
Grandstream GDS3710 IP Door Entry System
Grandstream GDS3710 IP Door Entry System
Grandstream GDS3710 IP Door Entry System
Grandstream GDS3710 IP Door Entry System
00 Reviews
No reviews
In Stock
In stock for next day delivery
  • PDF
  • Print
  • Email

SKU GDS3710
£358.30 exc. VAT
£429.96 inc. VAT
Select currency
GBP Euro US Dollar
Quantity
Available Options:
Require RFID Cards, Fobs:

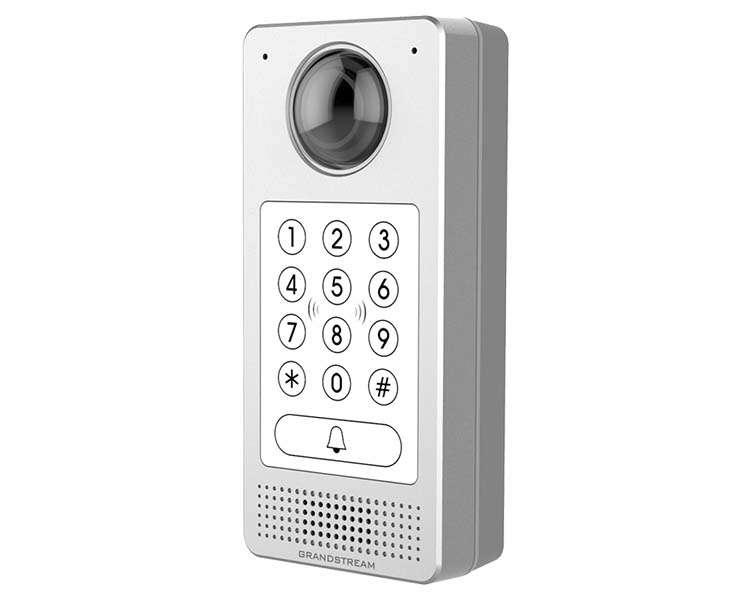

Grandstream GDS3710 IP Door Entry System

The Grandstream GDS3710 HD IP Video Door System is a hemispheric IP video door phone and a high-definition IP surveillance. GDS3710 is ideal for monitoring from wall to wall without blind spots. Powered by an advanced Image Sensor Processor (ISP) and state of the art image algorithms, it delivers exceptional performance in all lighting conditions.

The GDS3710 IP video door system features industry-leading SIP/VoIP for 2-way audio and video streaming to smart phones and SIP phones. It contains integrated PoE, LEDs, HD loudspeaker, RFID card reader, motion detector, lighting control switch and more.

GDS3710 HD IP Video Door System can be managed by Grandstream’s free window based management software: GDS Management Software, a client/server based software which provided RFID card management and basic reports for the door entrance. Along with Grandstream videophone, mobile Apps, and Network Video Recorder (NVR), the GDS3710 provides a powerful recording and monitoring solution. It can be managed with GSURF Pro or any ONVIFcompliant video management system.

It also offers a flexible HTTP API for easy integration with 3rd party applications and other surveillance systems. GDS3710 is ideal for entry places required wide angle monitoring, such as banks, hotels, schools, office building, retail stores and small warehouses, also good for small to median sized enclosed environments

Grandstream GDS3710 Key Features

  • High-performance streaming server allowing multiple simultaneous streaming session accesses.
  • 2 Megapixel Progressive Scan CMOS, 1920H x 1080V.
  • Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms.
  • 2 Channels Input/Output alarm.
  • RS485, Wiegand Input and Output.
  • RFID card reader.
  • Weather proof, vandal resistant.
Grandstream GDS3710 - Technical Specifications

General

  • Video Compression H.264 High/Main/Base Profile, Motion JPEG
  • Image Sensor Resolution 1/2.7”, 2 Megapixel, 1920H x 1080V
  • Lens Type 1/2”, F2.5, FOV: 180°(W) x 180°(H)
  • Day & Night Mode White LEDs with smart brightness control
  • Minimum Illumination 0.5Lux
  • Wide Dynamic Range Yes, up to 120dB
  • Max. Resolution, Frame Rate 1920x1080 (30fps)
  • Multi-stream Resolution High-performance streaming server allowing multiple simultaneous streaming session accesses Primary video stream: 1920*1080 resolution for continuous full HD recording Secondary video stream: 640*480 resolution for SIP/VoIP video calls Third video stream: 320*240 resolution for smartphone Apps
  • SIP/VoIP Support Yes, broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms
  • Audio Compression / Vocodecs G.711 µ/a law; G.722; in-band and out-of-band DTMF (In Audio, RFC2833, SIP INFO); AEC
  • Audio Input Built-in Digital Microphone, up to 1.5m with AEC
  • Audio Output Built-in HD Loudspeaker, sound quality suitable for up to 3 m
  • Alarm Input Yes, 2 channels, Vin < 15V, for door sensor or other devices
  • Alarm Output Yes, 2 channels, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other devices
  • Key Pad / Buttons 12-key touchpad plus a capacitive “Door Bell” button, each with individual LED illumination
  • RFID 125KHz: EM4100 (2 RFID cards included)
  • Expansion Interface RS485, Wiegand Input and Output
  • Snapshots Triggered upon Events, Send via email and/or FTP
  • Embedded Analytics Motion Detection
  • Privacy Mask Support Yes, 4 Zones (May remove, not useful)
  • Time-Lapse Recording Yes (after Beta)
  • Network Interface 10M/100M auto-sensing
  • Network Protocol TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069 (pending), ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE,
  • SSH, SMTP, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, 802.1x, TLS, SRTP
  • QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
  • Security User and administrator level access control (pending), MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
  • Upgrade/ Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 (Pending) or AES encrypted XML configuration file
  • Protection Class IP66 (EN60529), IK09 (IEC62262)
  • Power Supply PoE (Power over Ethernet) IEEE 802.3af Class 3, or 12VDC/1A connection (AC power adapter not included)
  • Weight 0.6kg
  • Dimensions (H x W x D) 173mm(H) x 80mm(W) x 36mm(D)
  • Temperature / Humidity Operation: -30°C to 60°C (-22°F to 140°F) Storage: -35°C to 60°C (-31°F to 140°F) Humidity : 10% to 90% Non-condensing
  • Compliance FCC: Part 15 subpart B Class B; Part 15C; MPE CE: EN55022 Class B; EN55024; EN61000-3-2; EN61000-3-3; EN50130; EN60950-1; EN300330; EN301489; EN50364
  • RCM: AS/NZS CISPR22; AS/NZS4268; AS/NZS 60950.1

Box Contents

  • 1 x GDS3710
  • 1 x Installation Bracket
  • 1 x Frame Back Cover
  • 1 x Wiegand Cable
  • 1 x Drilling Template
  • 4 x Bracket Screws and Anchors
  • 3 x Rubber Gaskets (for sealing the back cable)
  • 6 x Back Panel Screws
  • 2 x Anti-tamper screws
  • 1 x Anti-Tamper Hex Key
  • 2 x RFID cards and RFID Fobs (more can be purchased from Partner/reseller)
  • 1 x Quick Installation Guide
  • 1 x GPL License
