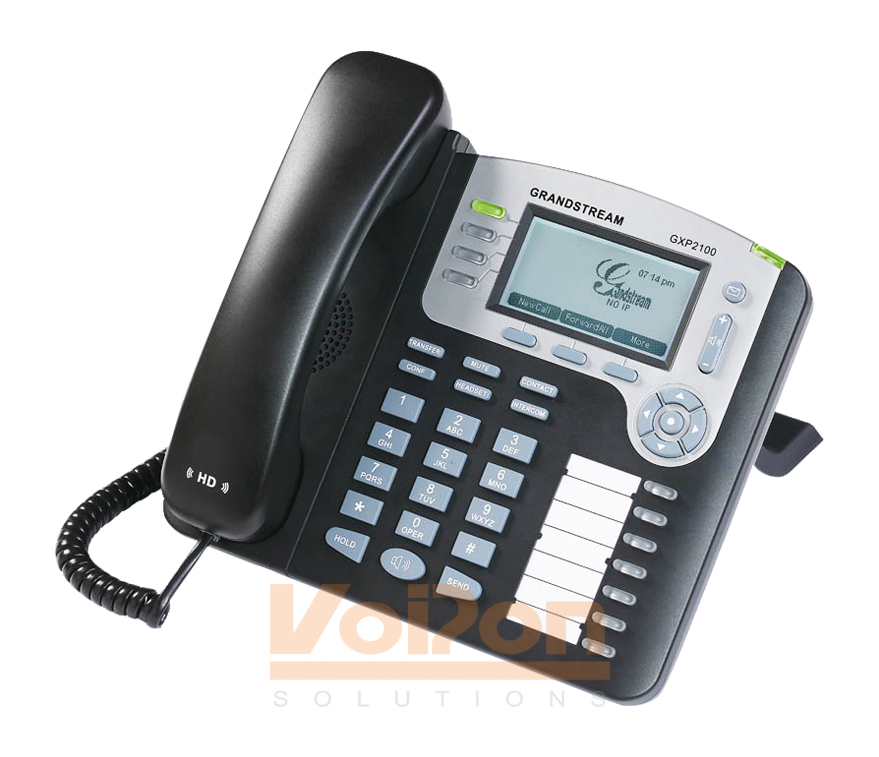

Grandstream GXP2100

Protocols and Standards

• SIP RFC3261
• TCP/UDP/IP
• RTP/RTCP
• HTTP/HTTPS
• ARP/RARP
• ICMP
• DNS (A record, SRV, NAPTR)
• DHCP
• PPPoE
• TELNET
• TFTP
• NTP
• STUN
• SIMPLE
• TR-069
• 802.1x
• IPV6

Network Interfaces

• Dual switched 10/100Mbps ports with integrated PoE

Graphic Display

• Back-lit 180 x 90 pixels graphical LCD display with 8-level greyscale

Feature Keys

• 180 x 90 pixel backlit graphical LCD display with up to 8-level grayscale
• 4 dual-color line keys (with 4 SIP accounts), 3 XML programmable context-sensitive soft keys, up to 5-way conference and up to 11 call appearances with 7 dual-color BLF extension keys
• HD wideband audio, superb full duplex hands free speakerphone with advanced acoustic echo cancellation and excellent double talk performance
• Large phonebook (up to 2000 contacts) and call history (up to 2000 records)
• Automated personal information service (e.g. local weather, stock, currencies, RSS news etc.), personalized music ring tone/ring back tone/music-on-hold, flexible customizable screen content 8 format using XML and advanced Web and enterprise applications integration
• Dual switched auto-sensing 10/100Mbps network ports with integrated PoE
• Automated provisioning using TR-069 or encrypted XML configuration file, SRTP and TLS for advanced security protection 802.1x for media access control

Voice Codec

• Support for G.723.1, G.729A/B, G.711 u/a-law, G.726, G.722 (wide-band) and iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Telephony Features

• Hold
• Transfer
• Forward
• 5-way conference
• Call Park
• Pickup
• Shared-Call-Appearance (SCA) / Bridged-Line-Appearance (BLA)
• Busy-Lamp-Field (BLF)
• Downloadable Phone Book (XML, LDAP, up to 2000 items)
• XML Customization of Screen
• Call Waiting
• Call Log (up to 2000 records)
• Off-hook Auto Dial
• Auto Answer
• Click-To-Dial
• Fexible Dial Plan
• Hot Desking
• Downloadable Ringtones
• Music-on-Hold
• Server Redundancy
• Fail-over Support

HD Audio

• Yes, both on handset and speakerphone

Headset Jack

• Both RJ11 and 2.5mm jacks

Base Stand

• Yes, allows 2 angle positions

Wall Mountable

• Yes

QoS

• Layer 2 (802.1Q, 802.1p)
• Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords
• MD5 and MD5-sess based authentication
• AES based secure configuration file
• SRTP
• TLS
• 802.1x media access control

Multi-language

• English, German, Italian, French, Spanish, Chinese, Korean, Japanese etc.

Upgrades and Provisioning

• Firmware upgrade via TFTP/HTTP
• Mass deployment using TR-069 or encrypted XML configuration file

Power & Green Energy Efficiency

• Universal power adapter (Input: 100-240VAC 50-60Hz; Output: +5VDC, 800mA, UL certified) included
• Integrated Power-over-Ethernet (802.3af)
• Max power consumption: 2.5W (power adapter) or 3W (PoE)

Physical

• 222mm(w) x 210mm(l) x 93mm(h)
• 0.98kg

Temperature and Humidity

• 32 - 104°F / 0 - 40°C
• 10 - 90% (non-condensing)

Package Content

• Grandstream GXP2100 IP Phone
• Handset with Cord
• Base Stand
• Universal Power Supply
• Network Cable
• Quick Start Guide

Compliance

• FCC Part 15 (CFR 47) Class B
• EN55022 Class B
• EN55024
• EN61000-3-2
• EN61000-3-3
• EN 60950-1
• AS/NZS CISPR 22 Class B
• AS/NZS CISPR 24
• RoHS
• UL 60950 (power adapter)
