2N UNI Analogue - 2 button (9153202-E)

0 Based on 0 ratings.
01/11/2021 £177.00 exc. VAT
212.40 inc. VAT
Availability:In stock for next day delivery
Key Features
  • Integrated amplifier
  • Universal switching output socket
  • Security switch

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 15:30.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies
Please Note: All 2N products come with a 3 year warranty as standard however, this can be extended up to 5 years. Customers have the option to extend their warranty by either one or two years. To find out more, please click here or call our sales team on 0330 088 0195.

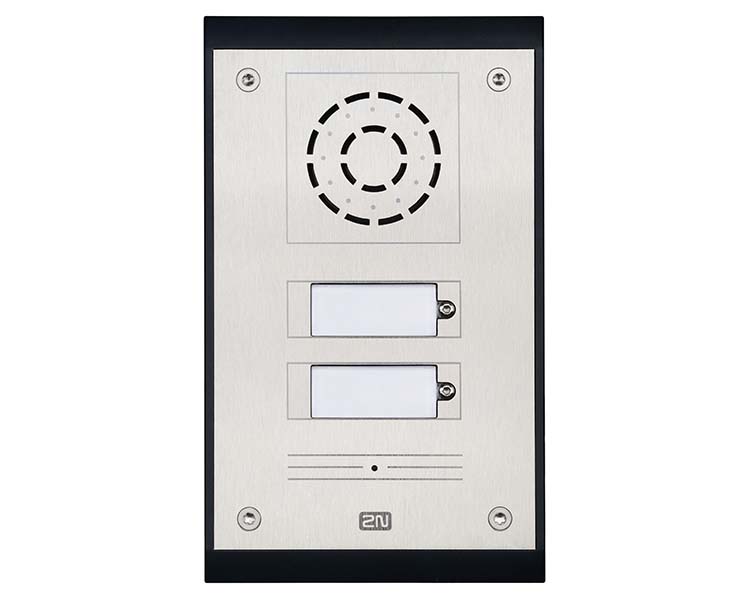

2N UNI Analogue - 2 button (9153202-E)

The 2N UNI Analogue - 2 button (9153202-E) intercom is based on the plug and play concept and works on the principle of an analogue telephone. By simply connecting it to an analogue switchboard, it is integrated into the existing company system, so you can start using it immediately.

What’s more, you can even set up all the intercom functions you need from your telephone, using a simple voice menu. After setting up a telephone number under a specific button, the customer will be able to contact the required department directly and your staff can open the door by simply entering a code on the telephone keypad.

Why Choose 2N Uni

  • Simple installation
  • Remote administration by telephone
  • Powered from the analogue line
  • Integrated amplifier for noisy environments
  • Universal switching output socket
  • Security switch


  • Educational Institutions
  • Office Buildings
  • Residential Complexes
  • Hospitals
  • Public Areas
2N Helios UNI Analogue - 2 button (9153202-E) - Technical Specifications

Telephone Parameters

  • Pulse dialling 40 / 60 ms (20 to 60 mA)
  • Tone dialling pitch -6 and -8 dB ± 2 dB (20 to 60 mA)

Electric Parameters

  • Minimum line voltage 20V (on the hook)
  • Minimum line current 15 mA (off the hook)
  • Band width 300 to 3500 Hz (20 to 60 mA)


  • Button type Transparent buttons with white under-lighting and easily changeable name plates
  • Number of buttons 1 or 2


  • Microphone 1 integrated microphone
  • Amplifier optional – added 0.5 W amplifier

Mechanical Properties

  • Cover ABS plastic, quality stainless steel
  • Operating temperature -25°C to +55°C
  • Relative operating humidity 10% - 95% (non-condensing)
  • Storage temperature -40°C to +70°C
  • Dimensions 193 x 115 x 39 mm
    197 x 119 x 47 mm (flush-mounting box)
    193 x 115 x 57 mm (if mounted on wall surface)
  • Weight Product net 500 g
  • Installation box 135 g
  • Overall incl. packaging 800 g
  • Protection level IP54

Specifications Tab
