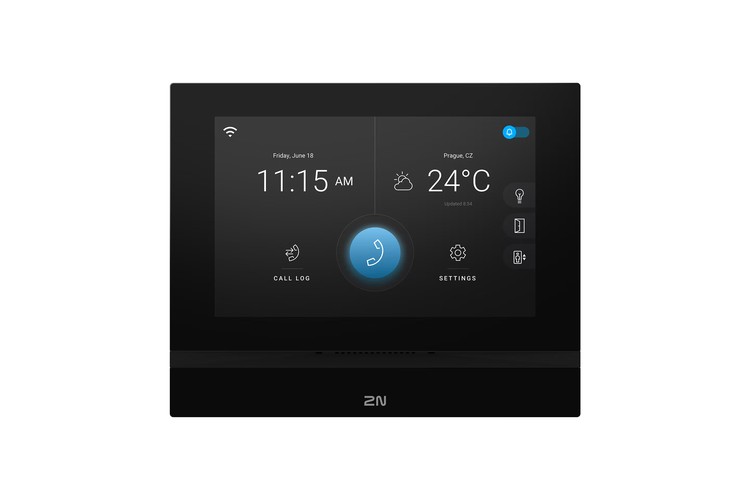

2N Indoor View Wi-Fi Black Indoor Station (91378611)

The 2N Indoor View Wi-Fi Black is a high-end indoor station with a 7" touch display, at home in even the most luxurious of penthouses. It supports widescreen HD video calling and boasts multiple advanced features, including smart home integration.

The large touchscreen makes the unit easy to operate, and the home screen even displays the current weather forecast.

The enlarged video call preview allows residents to read a courier's name tag with ease; widescreen calls are compatible only with Full HD 2N intercoms.

Residents can also view video from places where no intercom is installed, wherever there is an IP camera (e.g. a hallway, yard or garage).

Residents can turn on the air conditioning, lighting, or call the lift directly from the display on their unit — just one piece of hardware to open the door and control the entire home.

This Wi-Fi variant is great for retrofit projects, adding all these advanced features to places without network cabling, while still supporting simultaneous Wi-Fi and Ethernet connectivity.

All new residential installations get free intercom-to-mobile My2N app video calls with every indoor station, for the lifetime of the unit, at no extra cost.

2N Indoor View Technical Specifications:

Power Supply

• Type: 12V DC adapter or PoE 802.3af
• Recommended power supply: 12V/1A
• Reverse polarity protection: Yes

User Interface

• Controls: Capacitive touch panel
• Display size: 7" colour display
• Resolution: 1024x600px

Audio

• Microphone: Integrated
• Speaker: Integrated, 2W/8Ω
• Induction loop output: 600mV RMS
• Codecs: G.711a/u, G.722, G.729, L16/16 kHz

Video

• Codecs: H.264

Interface

• LAN: 10/100BaseT, RJ-45
• Recommended cabling: Cat5e or higher
• Wi-Fi (optional): 2.4GHz and 5GHz, 802.11n and 802.11ac, in-built antenna
• Supports simultaneous Wi-Fi and Ethernet connectivity

Doorbell Input

• Input type: Switching contact (button/relay)
• Contact type: Normally open (NO)
• Contact parameters: Up to 50V/5mA, DC

Other Physical Features

• Operating temperature: 0 to 50°C
• Relative operating humidity: 10 to 90% (non-condensing)
• Storage temperature: -20 to 70°C
• Recommended altitude: 0 to 2000m
• Warranty: 5 years
• Dimensions (W x D x H): 19.3 x 5.0 x 15.7 cm

Package Contents

• 1 x 2N Indoor View Wi-Fi (Black)
