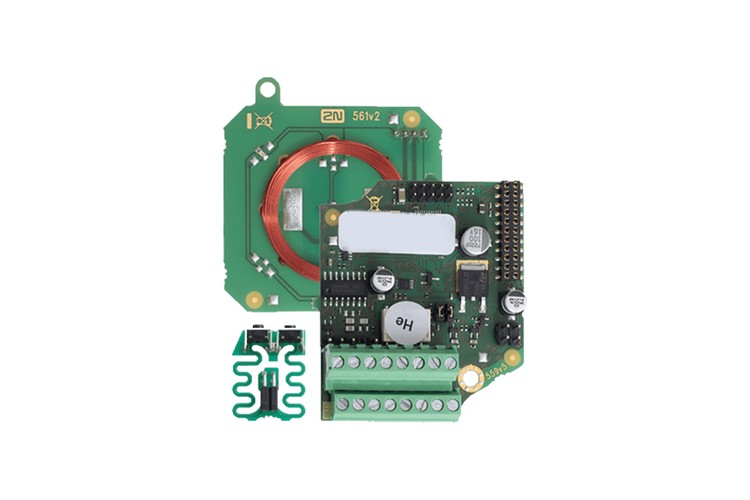

2N RFID Card Reader 125kHz, OSDP, for IP Force (9151022)

Internal RFID card reader for installation in 2N IP Force intercoms. Allows the use of EM4100, EM4102, and HID Proximity cards. Two switches, two logical inputs, and an OSDP interface are also available.

OSDP protocol provides higher security than the Wiegand protocol and encrypts the transmitted data.

It is compatible with the 2N IP Force two-button and pictogram models (9151102CHRW, 9151101CHRPW, 9151102RW, 9151101RPW). It also includes a security switch to signal when the front panel is opened.

2N RFID Card Reader 125kHz, OSDP Technical Specifications:

Parameters

• Includes: RFID reader, OSDP module, tamper switch, active output, relay, two inputs
• Supported cards: EM4100, EM4102, HID Prox
• OSDP interface: input/output mode, located on the RFID card reader module
• Active switch output: 9 to 13V DC depending on power supply (PoE: 9V; adaptor: power supply voltage minus 1V), max 600mA
• Passive switch: NO/NC contacts, up to 30V/1A AC/DC

Other Physical Features

• Operating temperature: -40°C to 55°C
• Storage temperature: -40°C to 70°C
• Operating relative humidity: 10%-95% (non-condensing)
• Warranty: 5 years

Package Contents

• 1 x RFID Card Reader Module, 125kHz, OSDP (9151022)
