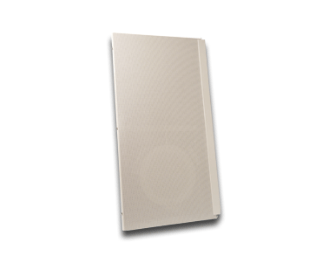

CyberData SIP Ceiling Tile Drop-In Speaker (011401)

0 Based on 0 ratings.
22/12/2019 £478.80 exc. VAT
574.56 inc. VAT
Availability: Usually ships in 1 to 2 weeks
Key Features
  • External volume control
  • Small footprint
  • High efficiency speaker driver

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 15:30.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies

CyberData SIP Ceiling Tile Drop-In Speaker (011401)

Please Note: This product may have a lead time of up to 1-2 weeks. Please call 0330 088 0195 and speak to our sales team who can confirm the current available stock for your requirement

Tthe CyberData SIP Ceiling Tile Drop-In Speaker (011401) combines the market leader in IP Speakers, with the latest design in speaker mounts. It’s streamlined and easy to install, with a 1' x 2' "drop-in" design.

CyberData 011401 Key Features

  • Support for security code to prevent unwanted SIP calls
  • Optional red/green/blue/white strobe kit connection available
  • Autoprovisioning via HTTP, HTTPS, or TFTP
  • HTTPS or HTTP web based configuration. HTTPS is enabled by default.
  • 802.11q VLAN tagging
  • Configurable sense input for use with fault detection or with optional lighted button kit
  • Configurable event generation for device health and status monitoring
  • Support for G.722 codecs
  • Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply (not included)
  • Enhanced interoperability for hosted environments

The SIP Ceiling Tile Drop-In SIP Speaker is a Power-over-Ethernet (PoE 802.3af/802/3at) and Voice-over-IP (VoIP) public address loudspeaker that easily connects into existing local area networks with a single CAT5 cable connection. The speaker is compatible with most SIP-based IP PBX. In a non-SIP environment, the speaker is capable of playing audio from a multicast source.

CyberData 011401 - Technical Specifications


  • SIP (RFC 3261) compatible
  • Night Ringer function
  • Plays audio from Multicast
  • Web-based configuration
  • Paging prioritization and background music
  • User upgradeable firmware via web interface or autoprovisioning
  • External volume control
  • Small footprint
  • High efficiency speaker driver
  • IGMP l SIP endpoint or Multicast group member
  • Network-adjustable speaker volume
  • Can drive one external analog speaker for greater coverage (part #011120/011121 sold separately)


  • Audio Output 802.3af - SPL 109.2 dB @ 1 meter
  • 802.3at - SPL 111.9 dB @ 1 meter
  • Operating Temperature -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
  • Ethernet I/F 10/100 Mbps
  • Protocol SIP RFC 3261 Compatible
  • Power Input PoE 802.3af/802.3at
  • Payload Types G.711 μ-law, G.711 a-law, and G.722
  • Dimensions (Unit) Length: 12 in. [304.8 mm], Width: 3.23 in. [82.04 mm], Height: 23.75 in. [603.25 mm]
  • Dimensions (Boxed) Length: 16.25 in. [412.75 mm], Width 8.125 in. [206.38 mm], Height: 28.25 in. [717.55 mm]
  • Boxed Weight 8.0 lbs. [3.63 kg]
  • Warranty 2 Year Limited
  • Part Number Standard Color 011401, RAL 9002 Gray White (replaces 011128)
