CyberData VoIP Ceiling Speaker V2 (011021)

0 Based on 0 ratings.

Key Features

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

No documents available for download
SKU:011021
Brand:
Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies

Availability: Discontinued

Please note that the CyberData VoIP Ceiling Speaker V2 has been replaced by the CyberData VoIP Ceiling Speaker V2 with Night Ringer (011098A)

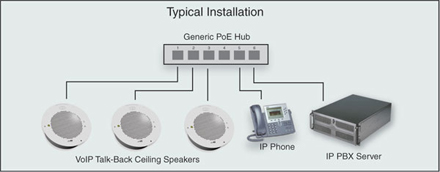

The CyberData SiP-enabled V2 Ceiling Speaker is a Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address loudspeaker that easily connects into existing local area networks with a single CAT5 cable connection. The speaker is compatible with most SiP-based IP PBX. In a non SiP environment, the speaker is capable of broadcasting audio through multicast. Its small footprint and low height allows the speaker to be discreetly mounted almost anywhere.

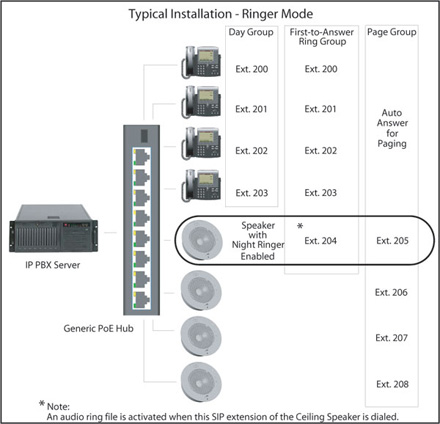

The VoIP Ceiling Speaker supports two SIP extensions. One extension can be assigned to a page group for auto answer paging. The second extension can be assigned to a “First-to-Answer” ring group with IP phones. An audio ring file is activated when the second SIP extension of the ceiling speaker is dialed. If any of the IP phones in the ring group is answered (or if the caller hangs up), the Ceiling Speaker stops ringing.

Use the Speaker Calculator below to determine the approximate number of speakers needed for any given space.

The speaker calculations are based on equal-sided, unobstructed rooms. For elongated rooms like hallways or for obstructed rooms, additional ceiling speakers may be required.

Features:

  • Adaptive full-duplex voice operation
  • SIP (RFC 3261) compatible
  • Plays audio from multicast
  • Web-based configuration
  • Multicast functionality to prioritize paging and music
  • Web-based firmware upgradeable
  • External volume control
  • Small footprint
  • High efficiency speaker driver
  • PoE 802.3af Enabled (Powered-over-Ethernet)
  • IGMP
  • SIP endpoint or multicast group member
  • Network-adjustable volume and microphone sensitivity
  • Peer-to-peer capability
  • Additional 8 Ohm output for external speakers
  • Ringer mode

Specifications

VoIP Ceiling Speaker V2 with Talkback Specifications
Protocol SIP RFC 3261 Compatible
Ethernet I/F 10/100 Mbps
Power Input PoE 802.3af
Operating Temperature -30 to 55C (-22 to 131F)
Payload Types G711 A-Law and u-Law
Output Level 10 Watts Peak
Sensitivity 96dB / 1W / 1M S.P. Level
Regulatory Compliance FCC Class B, UL 60950, CE
Dimension 9" x 2.4"
Warranty 2 Year Limited
Part Number 011021

Installation
