CyberData SIP Paging Adapter (011233)

0 Based on 0 ratings.
297.75 exc. VAT
357.30 inc. VAT
Availability: Usually ships in 1 to 2 weeks
Qty:
Key Features
  • Two SIP extensions
  • Page to Polycom phones
  • Voice prompt Pass code

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 15:30.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:011233
Available Options:

CyberData SIP Paging Adapter 011233

Please Note: This product may have a lead time of up to 1-2 weeks. Please call 0330 088 0195 and speak to our sales team who can confirm the current available stock for your requirement

The CyberData SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with SIP and Multicast-based audio sources. The SPA (SIP Paging Adapter) can be configured to support two separate SIP extensions.

CyberData SIP Paging Adapter Key Features

  • Two SIP extensions
  • Page to Polycom phones
  • Voice prompt Pass code
  • User uploadable Page messages
  • HTTPS status and command interface
  • 10 channel prioritized Multicast ports
  • HTTPS Web Interface and setup
  • Built-in diagnostics

SIP extension one passes audio through to the analog output spoken from the caller’s handset. When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group. The SPA supports up to 9 user-loadable messages that can be played by a DTMF command. The SPA supports a line-In input for playing music on hold.

During a page or a stored audio file message, this input is muted with its output restored once the page has stopped.

Messages can be played either:

  • SIP to Analog
  • Line-in to Analog
  • Multicast to analog
  • HTTPS command interface

CyberData SIP Paging Adapter 011233 Additional Features

  • 10k Ohm input for MOH
  • 600 Ohm Balanced audio out
  • Unbalanced Line-Out
  • Remote amp fault sensor
  • DTMF and programmatic controlled Relay
  • Delayed page support
  • DTMF pass-through
  • Cisco SRST
  • 10/100 802.3af PoE

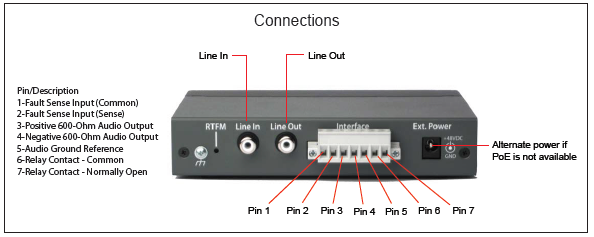

CyberData SIP Paging Adapter 011233 Diagrams

CyberData SIP Paging Adapter 011233 Diagrams

Technical Specifications of CyberData SIP Paging Adapter 011233
  • Protocol: SIP RFC 3261 Compatible
  • Ethernet I/F: 10/100 Mbps
  • Power Input: PoE 802.3af or 48VDC
  • Operating Temperature: -30 to 55 C (-22 to 131 F)
  • Payload Types: G711
  • Regulatory Compliance: FCC Class A, UL 60950
  • Page Port Output: Balanced 600 Ohm 10VPP
  • Line In:
    Input Signal Amplitudes: 2.0 VPP maximum
    Input Impedance: 10k Ohm
  • Line Out:
    Output Signal Amplitudes: 2.0 VPP maximum
    Output Level: +2dBm nominal
    Total Harmonic Distortion: 0.5% maximum
    Output Impedance: 10k Ohm
  • Dimensions: 6.11"L x 4.05"W x 1.15"H
  • Warranty: 2 years limited
  • Boxed Weight: 1.8 lbs.
