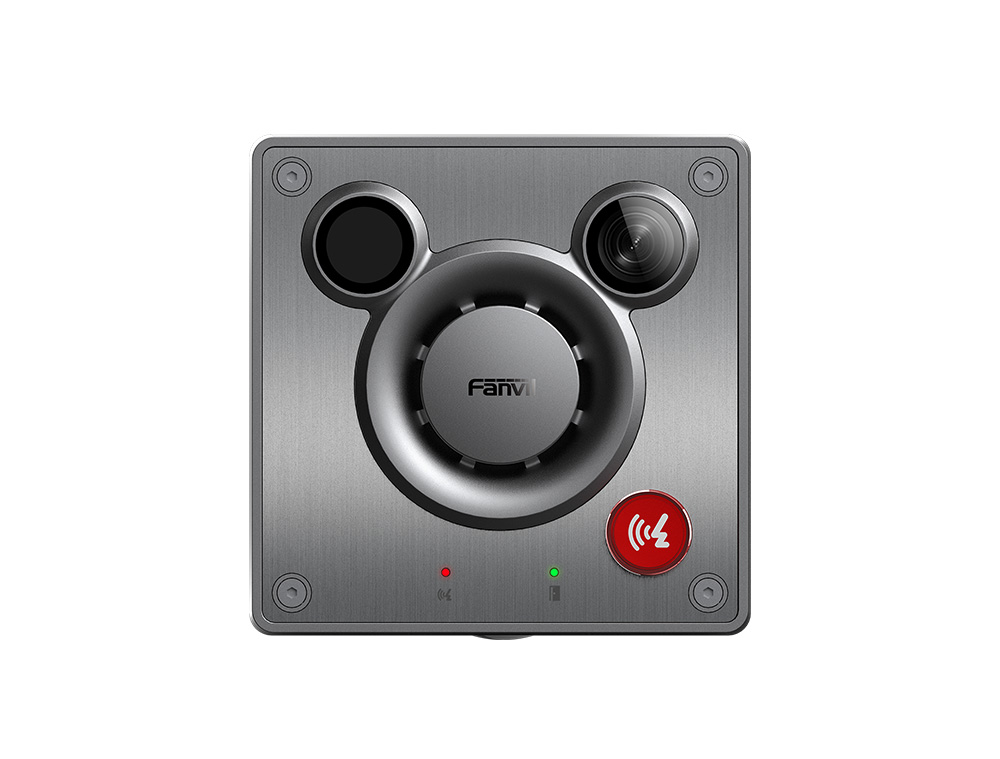

A11V Technical Specification

Generic

• 2 SIP Lines
• Speed dial
• Video calling
• Infrared lighting
• Linkage with IP camera to realize video intercom
• Oral announcement of the IP address (English)
• MP3 broadcasting
• Line-out audio output interface
• Switch signal input and output
• Support TF card
• Support DC 12V-24V/2A power supply and Power over Ethernet (PoE+)

Device Functions

• Auto-answering
• Programmable DSS keys
• Volume adjustment through web page
• Network time synchronization
• Time Plan (task management)
• SIP call forwarding to multicast
• Dynamic multicast function
• HTTP API
• Action URL / Active URI

Call Functions

• Call out / answer / reject
• Call waiting
• Intercom and multicast
• Speed dial
• Anonymous call (Hide caller ID)

Audio

• Narrowband codec: G.711a/u, G.729, iLbc, G.723, G.726
• Wideband codec: G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF: In-band, Out-of-Band (RFC2833 / SIP INFO)

Video

• Sensor: 1/2.9” color CMOS
• Pixels: 4 Mega-pixel HD camera
• Video Coding: H.264
• Resolution: 720P / 1080P
• Minimum Illumination: 0.05Lux, supports infrared illumination
• Viewing Angle:
  • Diagonal: 131°
  • Horizontal: 109°
  • Vertical: 60°

Network

• Physical Ethernet: 10/100 Mbps
• IP Mode: IPv4 / IPv6 / IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN support

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP / RTCP / SRTP
• STUN
• DHCP
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP / TFTP
• HTTP / HTTPS
• TR-069

Deployment & Management

• Auto-Provisioning via HTTP / HTTPS / DHCP OPT66 / SIP PNP / TR-069
• Web management portal
• Web-based packet dump
• Configuration export / import
• Firmware upgrade
• Syslog

Physical Specifications

• Support 1 DSS key
• RJ45 Port ×1
  • Connect the Internet or LAN
  • PoE+ enabled (IEEE 802.3at, Class 4)
• Line-out Port ×1
  • Connect active speaker or amplifier
  • Output impedance: 1000Ω
  • Port: 2-pin terminal socket
• Short circuit output port ×1 (built-in relay)
  • Relay: Max DC30V / 2A, AC125V / 0.5A
  • Active switching output: 12V / 500mA DC (only 1 relay support)
  • Port: terminal socket
• Tamper alarm switch ×1
• Short circuit input ×2
• Line-out interface ×1
• SD card slot ×1
  • Supports SD card connection
• DC Port ×1
  • DC power input: 12V~24V / 2A
  • Port: 2-pin terminal socket
• Protection Level: IP66 and IK10 (except lens)
• Appearance Material:
  • Stainless steel panel decoration
  • Aluminum alloy shell
• Installation: Wall-mounted (standard) & flush-mounted (model: EX611, optional)
• Power Consumption (PoE+): 2.27~13.7W
• Power Consumption (12V/2A Adapter): 1.75~11.7W
• Working Temperature: -40℃ ~ 70℃
• Storage Temperature: -40℃ ~ 80℃
• Working Humidity: 10 ~ 95%
• Quantity per Carton: 16 PCS
• Net Weight per Carton: 9.72kg
• Gross Weight per Carton: 10.23kg
• Device Dimensions: 100.95 × 100 × 45mm (with wall-mounted bracket)
• Gift Box Dimensions: 106 × 55 × 113mm
• Outer Carton Dimensions: 245 × 232 × 246mm (16 pcs)
• Package Contents:
  • 1x Video Intercom
  • 1x Quick Installation Guide
  • 1x Wall-mounted bracket (standard)
  • 1x Mounting Template
  • 1x Package of screws
