Fanvil GA100-8T FXO VoIP Gateway (GA100-8T)

The Fanvil GA100-8T is an 8-port FXO SIP ATA gateway designed to convert analog telephone lines from carriers and enterprise PBXs to SIP protocol for interconnection with softswitch systems on the IP side. It delivers a powerful, stable, reliable, and cost-effective VoIP solution for IP call centres and multi-branch organisations.

The GA100-8T supports SIP/IMS protocols and VPN client functionality, with FXO ports that support polarity reversal detection. Professional hardware-based echo cancellation ensures high-quality voice communication across all 8 concurrent channels.

Fanvil GA100-8T Technical Specifications:

Generic

• 8 concurrent calls
• 8-channel (FXO) voice services
• TDM to IP call conversion
• SIP/IMS protocols
• Secondary dialling
• SIP agent
• NET settings
• Simultaneous registration of multiple servers (primary and backup)
• Centralised management
• Tone detector
• Number change
• Automated gateway configuration deployment
• ACL extension registration and web access support

Audio

• Narrowband codecs: G.711a/u, G.723, G.729A/B, iLBC, AMR
• DTMF: In-band, Out-of-Band (RFC2833 / SIP INFO)
• Acoustic Echo Canceller (AEC)

FXO Features

• Calling number detection
• Secondary dialling
• Polarity reversal signalling
• Tone detection
• Outgoing calls barred
• Incoming call blacklist
• Custom routing
• FXO line disconnect alarm

Network

• 10/100 Mbps Ethernet
• IP mode: IPv4/IPv6
• IP configuration: Static IP / DHCP
• IP address and DNS domain name resolution
• VPN client support
• Firewall

Protocols

• DHCP, TCP/UDP, HTTP/HTTPS, TFTP, NTP, STUN, TR-069, DNS, TELNET, ARP/RARP, SRTP, TLS, SIP/IMS, SNMP

Deployment & Management

• Web management
• Supported languages: Chinese, English, Russian
• Firmware upgrades
• Web-based ping test / tracert test
• Administrator authentication
• System and service status monitoring
• Third-party centralised management support
• Automatic deployment
• Syslog (Error, Warning, Info, Debug)

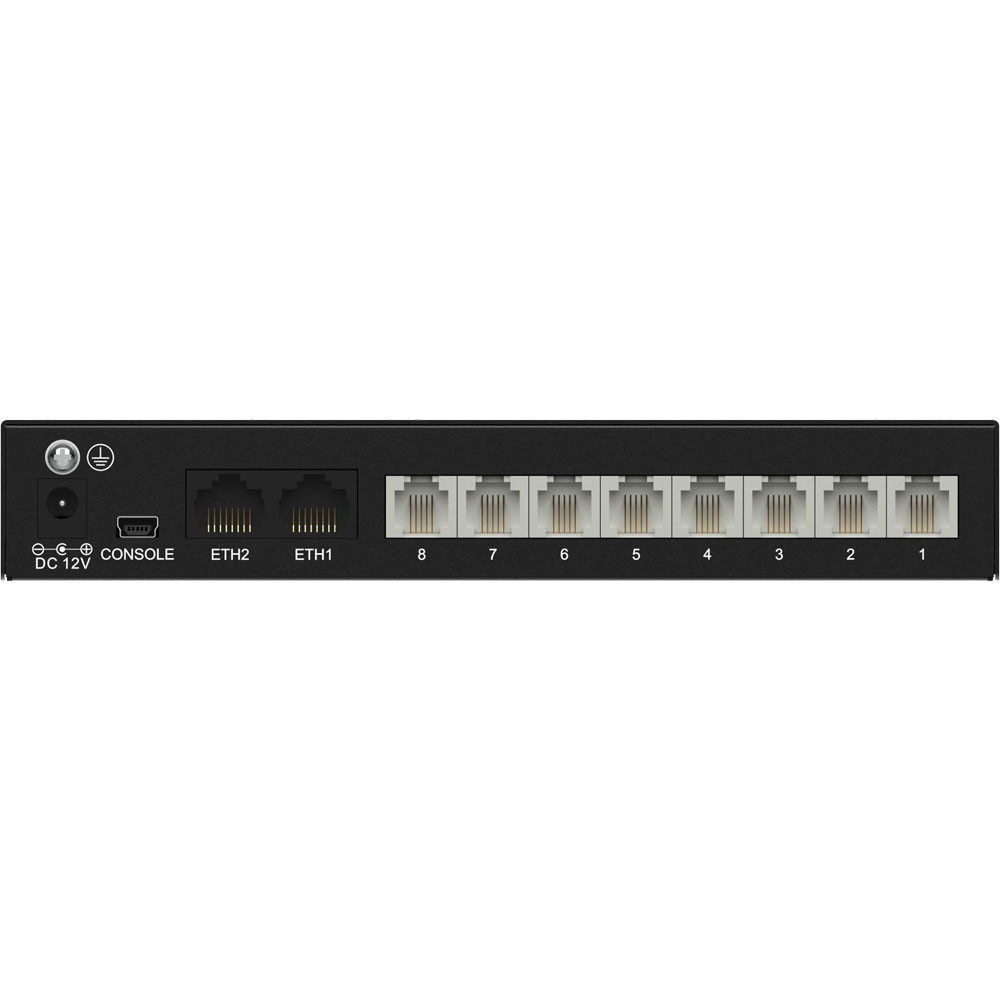

Other Physical Features

• FXO ports: RJ11 ×8
• Ethernet ports: RJ45 ×2
• USB ports: Mini USB ×1
• Lightning protection grade: Level 4
• Reset button: press and hold 8 seconds to restore factory settings
• Indicator lights: PWR, RUN, ALM, FXO
• Power consumption: <3W
• Working temperature: 0°C to 45°C
• Storage temperature: -20°C to 85°C
• Working humidity: 8% to 90%, no condensation
• Storage humidity: 8% to 90%, no condensation
• Product weight: 0.55 kg (0.8 kg with packaging)
• Dimensions (W x D x H): 14.0 x 10.0 x 3.0 cm

Package Contents

• 1 x Fanvil GA100-8T FXO VoIP Gateway
