Fanvil i10D SIP Mini Intercom (i10D)

0 Based on 0 ratings.
Please call for price
Key Features
  • IP54 waterproof and dustproof
  • Built-in 1W speaker
  • High compatibility

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 15:30.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:i10D
Brand: Fanvil
Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies

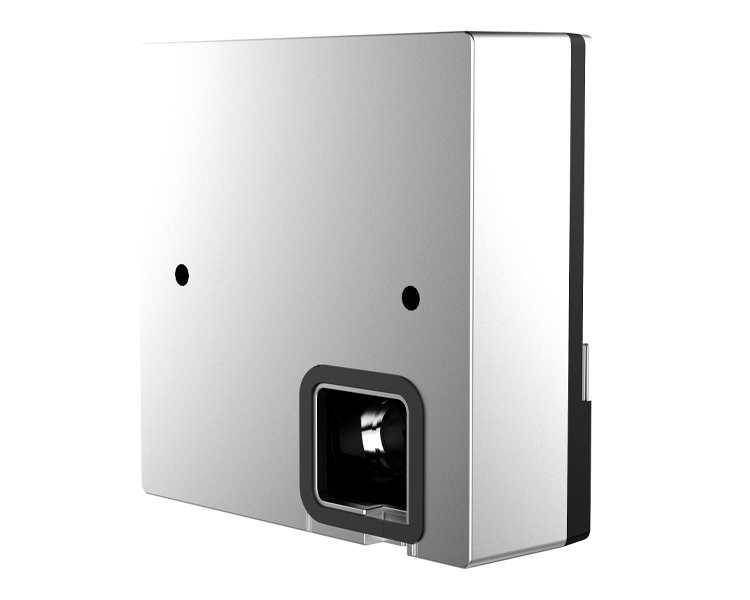

Fanvil i10D SIP Mini Intercom (i10D)

The Fanvil i10D is designed for indoor scenes with IP54 waterproof and dustproof. Supports wall mounting and 86mm wall socket installation. It combines security, audio/video intercom and broadcasting functionalities and offers the qualified communication solution for users.

Fanvil i10D Key Features

  • IP54 waterproof and dustproof
  • -20 °C to 50 °C wide range temperature adaptability
  • Compatible with engineering 86 box size, easy installation and configuration
  • Built-in 1W speaker and Acoustic Echo Canceller (AEC)
  • Built-in 1 short circuit input/output interface
  • Functionality including security, intercom and broadcasting
  • Built-in HD camera and with backlight compensation function (for i10V)
  • Online management and upgrade
  • High compatibility – Compatible with major platforms: Aterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Audio
The Fanvil i10D has a built-in 1W speaker with Acoustic Echo Canceller

Multi-Protection design
The i10D boasts waterproof and dustproof grade IP54 and a wide temperature range from -20℃ to 50℃. This means it can satisfy the special demands in some of the most challenging industries

Functionality
The i10D includes fuctionality such as security, intercom and broadcasting

High Compatibility
The i10D is compatible with multiple major platforms

Fanvil i10D Technical Specifications

General

  • 2 SIP Lines
  • Auto answer
  • Intercom function

Intercom Function

  • Dynamic multicast function
  • Support ONVIF
  • Support customised DSS keys
  • Network Time Synchronisation
  • Action URL / Active URI

Video (i10V)

  • Sensor: 1/4” colour CMOS
  • Pixel: 1 million
  • Video coding: H.264
  • Resolution: 720P
  • Viewing angle: 90°
  • Minimum illumination: 0.1Lux

Audio

  • Wideband ADC/DAC 16KHz sampling
  • Narrowband Codec: G.711a/u, G.729AB, AMR, iLBC
  • Wideband Codec: G.722, AMR-WB, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Deployment and maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Firmware Upgrade
  • Syslog

Networking

  • Physical: 10/100 Mbps Ethernet
  • IP Mode:IPv4/IPv6/IPv4&IPv6
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Physical Specification

  • i10/i10V :1 DSS button (speed dial button);i10D:2 DSS button
  • 1 RJ45 port
  • 1 short circuit input interface
  • 1 short circuit output interface
  • Power: DC12V/1A or POE
  • Housing material: ABS
  • Installation: Indoor installation
  • Working temperature: -20 ~50 °C
  • Storage temperature: -20 ~ 50 °C
  • Relative humidity: 10% - 90%
  • Equipment size: 88 x 88 x 31mm
  • Packing size: 95x108x40mm
  • Equipment weight: 135g
