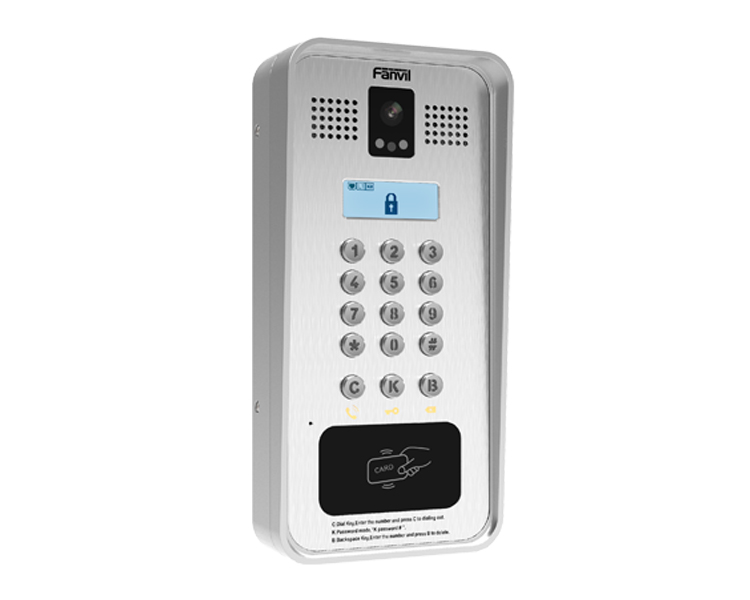

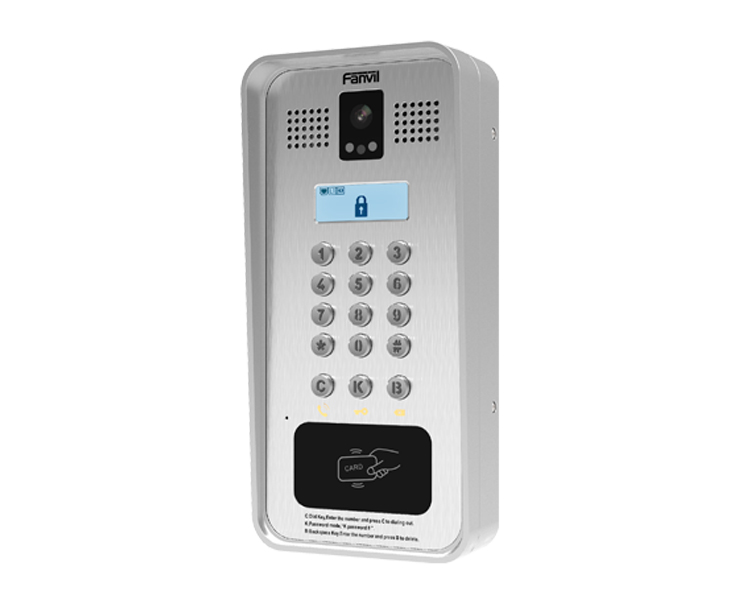

Fanvil i33V Wall-Mounted SIP Video Door Phone (i33V)

The Fanvil i33V is a SIP Video Door Phone with LCD display developed for users in the security industry. It supports the installation of wall-mounting. It is designed for outdoor environment with high reliability, HD Audio/Video, IP65/IK10 protection grade and the wide temperature range from -20℃ to 50℃. It combines with the functions of access control, audio/video intercom and broadcasting for the smoother, safer, clearer communication.

Fanvil i33V Key Features

  • Built-in HD camera with infrared night vision, adopt H.264 codec
  • Access control(by call, code, RFID/IC card and indoor switch
  • All-in-one (Access control, Intercom and Broadcasting)
  • HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller (AEC)
  • Protection level: IP65 and IK10
  • -40°C to 70°C wide range temperature adaptability
  • Support online management and upgrade
  • Compatible with major platforms: Aterisk, Broadsoft, 3CX, Metaswitch, Elastix, etc.

Different Ways to Unlock the Door
Support to open the door with local password, RFID/IC cards and remote DTMF.
Different Ways to Unlock the Door

Number Keypad and Clear Backlight Display
Users can use 12 standard number keys and 3 function keys to dial or enter a password to open the door. A 128X48 pixel lattice screen will simultaneously display the room number of the owner when the visitor calls on i33V/i33VF.

Support HD Video and Two Video Streams
With the HD camera with infrared night vision, i33V/i33VF can easily identify the visitors even at night. It also supports two video streams in which the main code stream works for high-quality video on monitoring and the subcode stream for smooth SIP video calls.

Support HD Video and Two Video Streams

HD Audio
Support HD audio with built-in 3W speaker, Opus, Acoustic Echo Canceller (AEC) and nice background noise reduction.

Multi-Protection Design
Featuring the waterproof and dustproof grade IP65, the anti-collision standard IK10 and the wide temperature range from -40℃ to 70℃, i33V/i33VF can be applied in different kinds of outdoor environment.

Multi-Protection Design

24H Video Surveillance
Connecting with VMS video management system via ONVIF protocol, i33V/i33VF could be used for 24H video monitoring of the door.

Support External Door Magnetic Detector and Wiegand Card Reader
It can be connected to 2 door magnetic detectors which will make an alarm if the door can not be closed after the timeout. It can also connect to a Wiegand card reader to control the door, which is used in the places with high security requirement, such as prisons and banks.

Fanvil i33V Technical Specifications

General

  • 2 SIP Lines, support SIP 2.0 (RFC3261) and related RFC
  • Full-duplex handsfree
  • Default auto answer
  • Intercom function
  • Industrial Standard Certifications: IP65&IK10, CE/FCC

Access Control Function

  • Unlock door method: DTMF, password, RFID/IC card, indoor switch, WEB page
  • Support 2000 Remote access list
  • Support 2000 RFID/IC cards
  • Support 200,000 door open records
  • Support electric lock internal or external power supply options
  • Auto multicast function
  • Support ONVIF
  • Network Time Synchronisation
  • Action URL / Active URI

Audio

  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
  • Wideband CODEC: G.722
  • Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive litter Buffer up to 300ms
  • DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO

Video

  • Sensor: 1/2.7” color CMOS
  • 2 megapixels
  • Video code: H.264
  • Resolution:
    - Main stream: 1280×[email protected]
    - Sub-stream: 704×576(D1)@25fps
  • Viewing angle: 112° (H), 84° (V)
  • Minimum illumination: 0.1Lux, support for infrared illumination

Networking

  • Support PoE
  • Primary and secondary DNS servers are supported
  • Support RTSP
  • Support SNTP client
  • Support VPN L2TP / openVPN
  • Support SRTP
  • Support HTTP / HTTPS web pages
  • Support Qos: 802.1p / q, DSCP
  • DHCP / static / PPPoE
  • Support STUN

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • LLDP
  • PPPoE
  • 802.1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Import/Export
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • LCD Pixel: 128x48 dots
  • LCD Dimension: 64x30.5x5.2 mm
  • Keypad: 15 keys(with backlight),including 12 number keys and 3 function keys (Detail/Password Mode/Backspace)
  • 1 RJ45 port, 10/100M adaptive
  • 1Wiegandport
  • 1 audio output interface
  • 1 recording output interface
  • 2 relays: MAX DC30V / 2A, AC125V / 0.5A for door opener
  • Active switching output: 12V / 500mA DC(only 1 relay support)
  • 2 indoor switch
  • 2 door magnetic detection
  • 1 tamper alarm switch
  • Temperature controller power:12V/1A(external PSU)
  • RFID reader: ID (EM4100,125KHz) &IC(MIFARE ONE,13.56MHz)
  • Power: DC12V/1A or PoE
  • Housing material: aluminum alloy shell
  • Protection level:IP65 and IK10
  • Installation: Wall-mounting(i33V); Flush mounting (i33VF)
  • Working temperature: -40 ~ 70 °C
  • Storage temperature: -40 ~ 70 °C
  • Relative humidity: 10% - 90%
  • Equipment Dimension: 295x142x62mm
  • Packing Dimension: 370x194x111mm
  • Outer CTN Dimension: 413x360x392mm(6 PCS)
  • Equipment weight: 2281g
