Fanvil VIK-01 Video Intercom Kit (VIK-01)

0 Based on 0 ratings.
Write a Review
Please call for price
Key Features
  • Plug-and-play, quickly deployment
  • Flexible door access methods.
  • Remote door opening anytime, anywhere

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:VIK-01
Brand: Fanvil
Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies

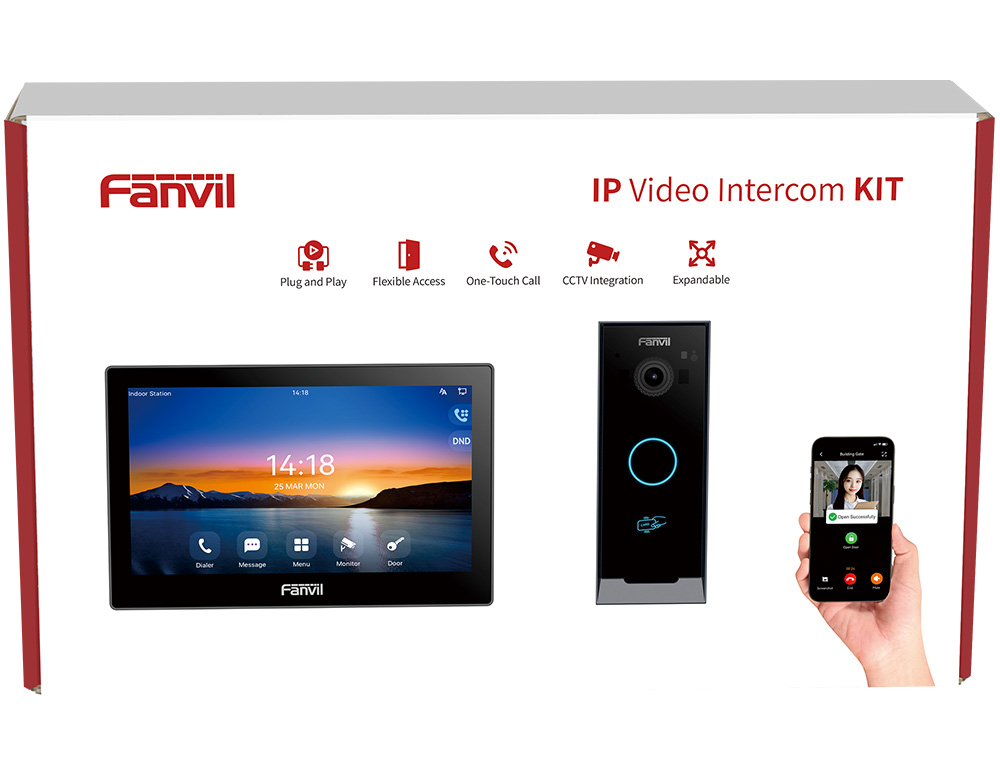

Fanvil VIK-01 Video Intercom Kit (VIK-01)

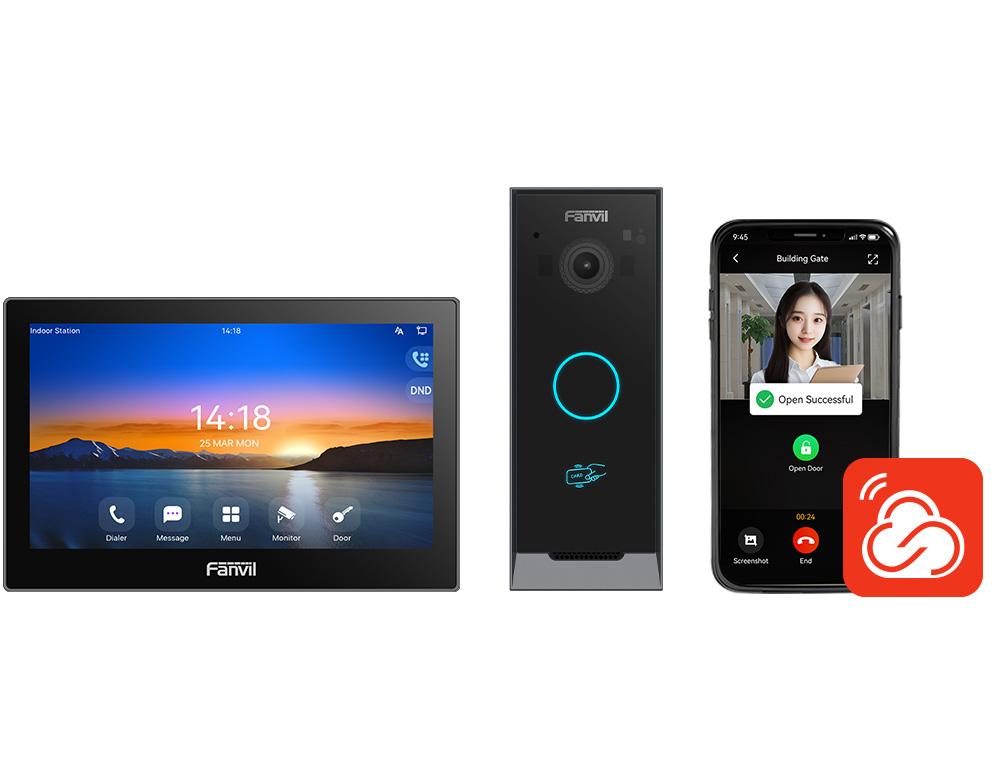

The Fanvil VIK-01 integrates the i504W SIP Indoor Station, i60 Video Door Phone, and Fanvil Link App, ideal for villas and single-family homes. Users can make HD video calls and remotely unlock doors via the indoor unit or Fanvil Link App, with multiple unlocking options and 2.4G/5G Wi-Fi support. Achieve plug-and-play deployment with simple power and network connections.

Fanvil VIK-01 Key Features

  • Plug-and-play, quickly deployment.
  • Flexible door access methods.
  • Monitor door phone camera footage on both mobile and indoor station.
  • Remote door opening anytime, anywhere
  • Support one-touch calling.
  • CCTV integration
Fanvil VIK-01 Video Intercom Kit Technical Specifications

Overview

  • Screen: 7-inch color capacitive touch screen 1024×600
  • Body: ABS
  • Speaker: 2W
  • Wi-Fi: 2.4G/5G（i504W Supported）
  • Interface: 8×Alarm input, 1×Short circuit output, 1×Doorbell input, 1×RS485(Reserved)
  • Network: 10/100 Mbps adaptive
  • Power Supply: DC 12V / 1A
  • Power Consumption: PoE: 3.65~6.64W
  • Working:  -10℃~50℃
  • Storage:  -40℃~80℃
  • Working Humidity: 10%~90%
  • Size (LWH): 177.38x113.99x22.5mm
  • nstallation: Wall-mounted

Functional Capabilities

  • Supported Protocols: SIP 2.0 over UDP/TCP/TLS
  • Audio: Narrowband audio codec: G.711A/U, G.723.1, G.726-16/24/32/40, G.729AB, iLBC, Broadband audio codec: G.722, OPUS, Full-duplex hands-free calling, supports Acoustic Echo Cancellation (AEC)
  • Video: Hardware video decoding: H.264，H.265 (Optional), Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  • Do Not Disturb (DND): Supported, and the time can be user-defined
  • Additionally: Supports viewing video from third-party IP cameras, Supports customizing incoming call ringtones, Supports remote door unlocking, Supports sending/receiving messages

Fanvil i60 Specifications

  • Keyboard: 1 Speed-dial Button
  • Body: ABS+PC
  • Colors: Panel: black, Housing: Gunmetal
  • Sensor: 1/2.9-inch，CMOS
  • Camera: 2 Mpx, Support infrared
  • Viewing Angle: 140°(FOV) 100°(Horizontal) 57°(Vertical)
  • Output video: H.264 (Baseline, Main Profile)
  • Light Sensitivity: 0.1Lux
  • Card Storage: 1,0000
  • Power Consumption: PoE:1.63~6.93W, Adapter: 1.51~6.16W
  • Power Supply: DC 12V / 1A, PoE 802.3af Class 3
  • Working Temperature: -40℃~+70℃
  • Storage temperature: -40℃~+70℃
  • Size of the Panel:  50*130*30mm
  • IP / IK Level: IP65
  • Installation: Wall-mounted Rain cover

Functional Capabilities

  • Supported Protocols: SIP 2.0 over UDP/TCP/TLS
  • Lock Opening: IC Card，By DTMF Code，Remote Door Opening, BLE
  • Interface: Wiegand Input/Output, Short Circuit Input/Output
  • Supported Wiegand Types: 26, 34 bit
  • Supported ONVIF Types: Profile S
  • Supported Standards: DTMF, IC Card, Indoor Switch, BLE, Cards 13.56 MHz
  • Talking Mode: Full duplex (High-definition Audio)
  • Additionally: Built-in relay，Motion detection，Tamper Alarm，TF Card，Open API
