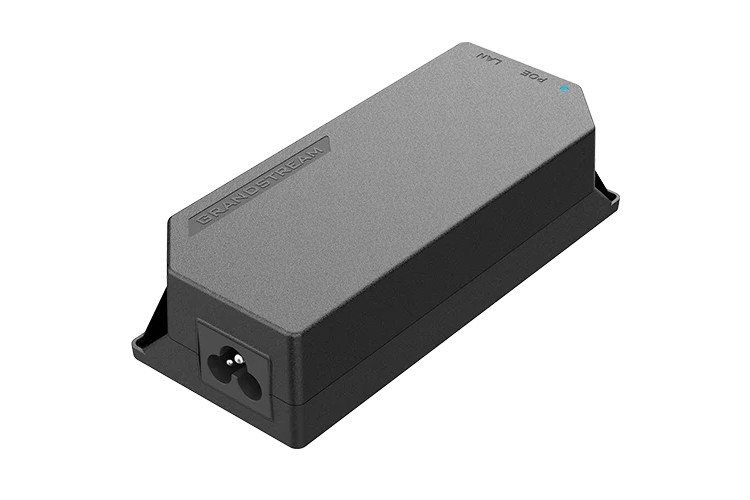

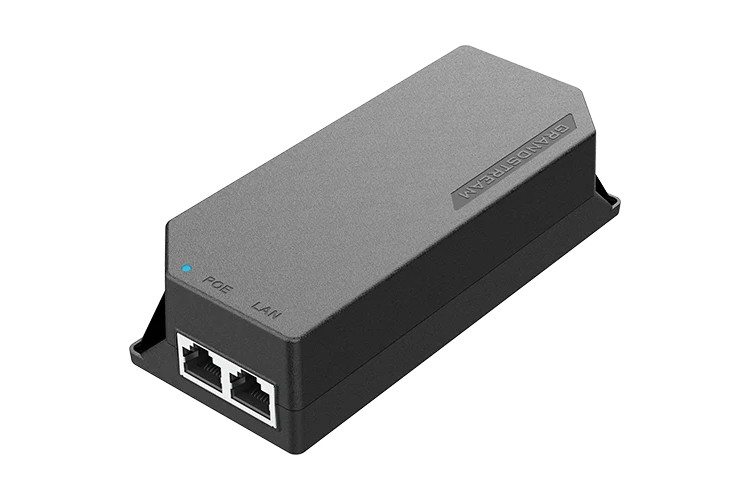

Grandstream GS-POE30W-MG PoE Injector (GS-POE30W-MG)

The Grandstream GS-POE30W-MG is a plug-and-play Power over Ethernet injector designed to provide power to PoE-enabled devices such as GWN series Wi-Fi Access Points, IP phones, and more. It complies with IEEE 802.3af/at standards and features 2 x 2.5 Gbps RJ45 network ports, with a built-in power adapter and a 1.2m AC cable included.

Grandstream GS-POE30W-MG Technical Specifications:

Standards

• IEEE 802.3af/at

Interface Ports

• 1 x AC power jack
• 1 x 2.5 Gbps RJ45 LAN IN
• 1 x 2.5 Gbps RJ45 LAN OUT with PoE

Power

• Input voltage: 100–240VAC, 50/60Hz
• Output voltage: 54VDC (1,2 +; 3,6 -)
• PoE output power: 30.2W

LEDs

• Power On: Blue
• PoE Load: Purple

Other Physical Features

• Operating temperature: 0°C to 45°C
• Storage temperature: -10°C to 60°C
• Humidity: 10% to 90% non-condensing
• Compliance: FCC, CE, RCM, IC
• Dimensions (W x D x H): 14.055 x 6.03 x 3.54 cm
• Weight: 175g

Package Contents

• 1 x GS-POE30W-MG PoE Injector (with built-in power adapter)
• 1 x 1.2m AC Cable
• 1 x Quick Installation Guide
• 1 x Certification Regulatory Paper
