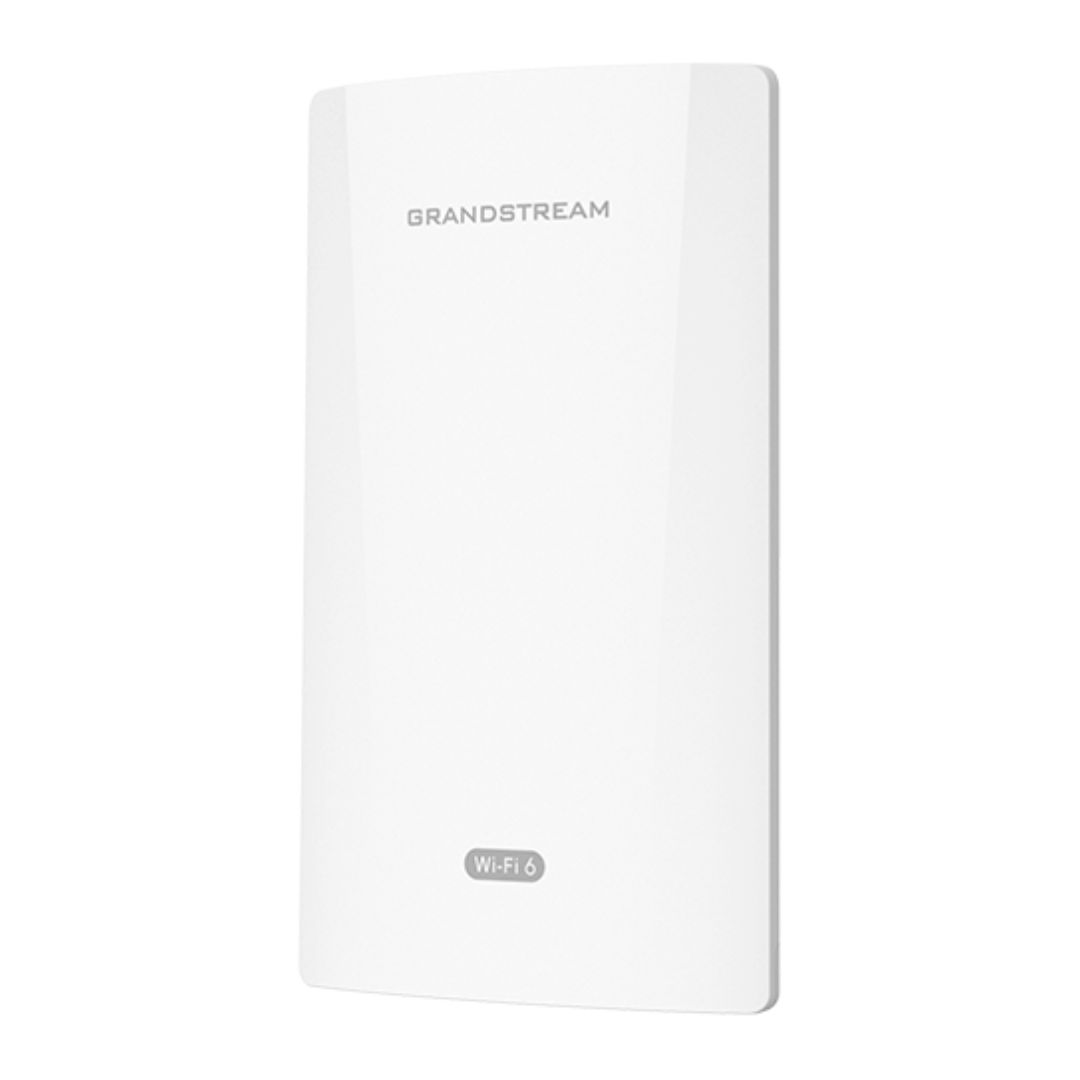

Grandstream GWN7302 PtP/PtMP Fixed Wireless Bridge (GWN7302)

The Grandstream GWN7302 is an enterprise PtP/PtMP Fixed Wireless Bridge ideal for medium-to-large businesses that need to provide long-distance wireless data transmission. It offers single-band 5GHz 2x2:2 MIMO and a sophisticated antenna design with TDMA technology to improve spectrum utilisation efficiency, reduce interference, and enhance network stability. Supporting both PtP and PtMP modes, the GWN7302 is suited to a wide range of deployment scenarios including factories, construction sites, parking lots, and scenic locations.

The GWN7302 offers an outdoor coverage range of up to 5 kilometres and carries an IP66-level weatherproof rating for use in harsh environments. One-key pairing quickly synchronises and connects devices, and signal strength LEDs guide antenna alignment to simplify installation. It features 2 x 1 Gigabit Ethernet ports supporting PoE IN and PoE OUT respectively, and self power adaptation upon auto-detection of PoE+. For management, the GWN7302 supports a controller-less distributed design with a built-in web UI, the GWN App for mobile configuration, and GDMS cloud platform for remote management via SSH tunnelling.

Grandstream GWN7302 Technical Specifications:

Radio

• Antenna: 2 x single internal antennas, 5GHz x2, gain 13.5 dBi
• Beamwidth: H: 30°; V: 30°
• MIMO: 5GHz 2x2:2
• Frequency bands: 5GHz, 5150–5850 MHz (not all frequency bands available in all regions)
• Channel bandwidth: 5G — 20, 40, 80 and 160MHz (x2)
• Wi-Fi data rates (5G): IEEE 802.11ax 7.3–2402 Mbps; 802.11ac 6.5–1732 Mbps; 802.11n 6.5–300 Mbps; 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Maximum TX power (5G): 26 dBm (maximum power varies by country, frequency band and MCS rate)
• Coverage range: up to 5 kilometres (varies based on environment)
• Point to multipoint: 1 to 4

Interfaces

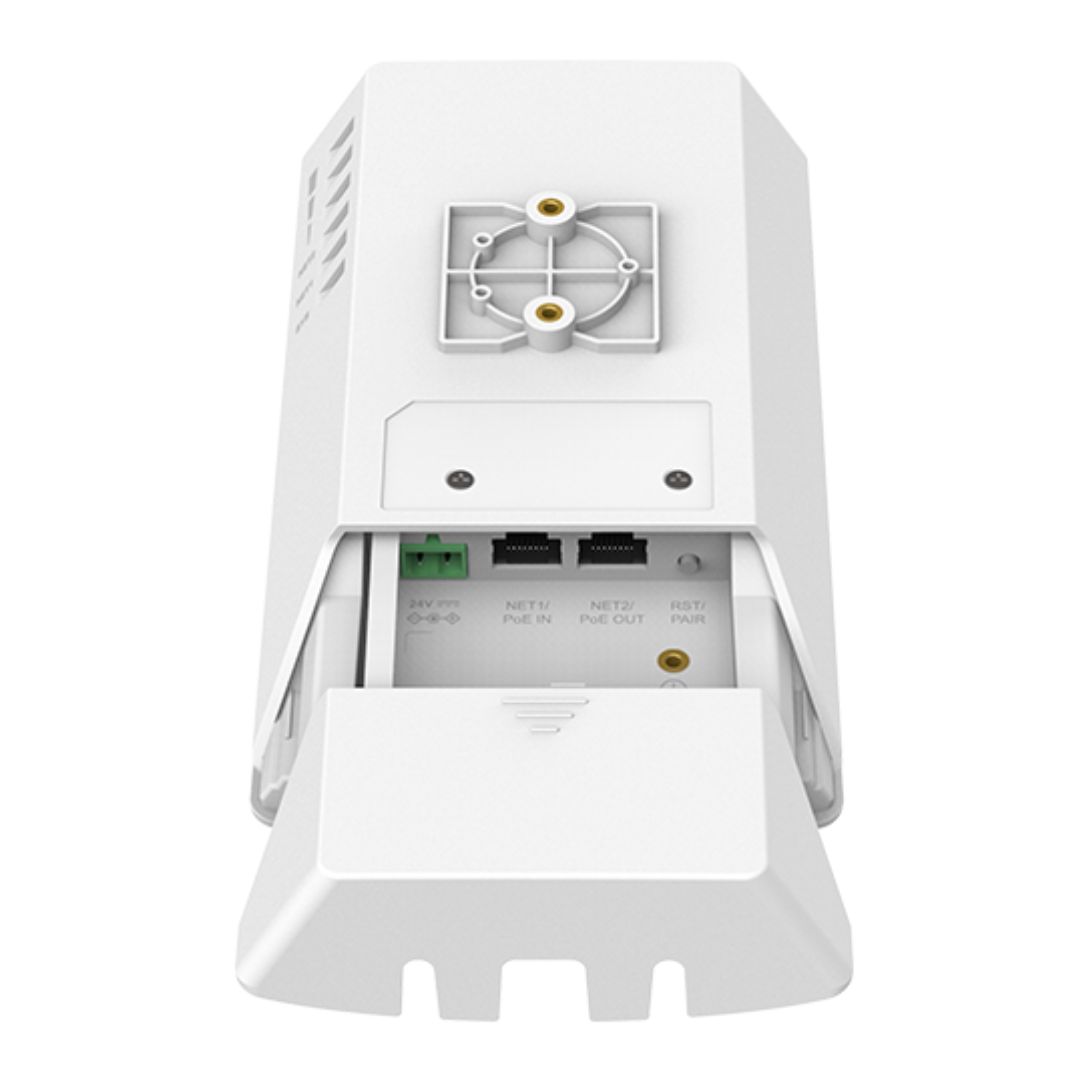

• Network port 1: 1 x autosensing 10/100/1000 Base-T Ethernet (RJ-45), PoE input
• Network port 2: 1 x autosensing 10/100/1000 Base-T Ethernet (RJ-45), PoE output

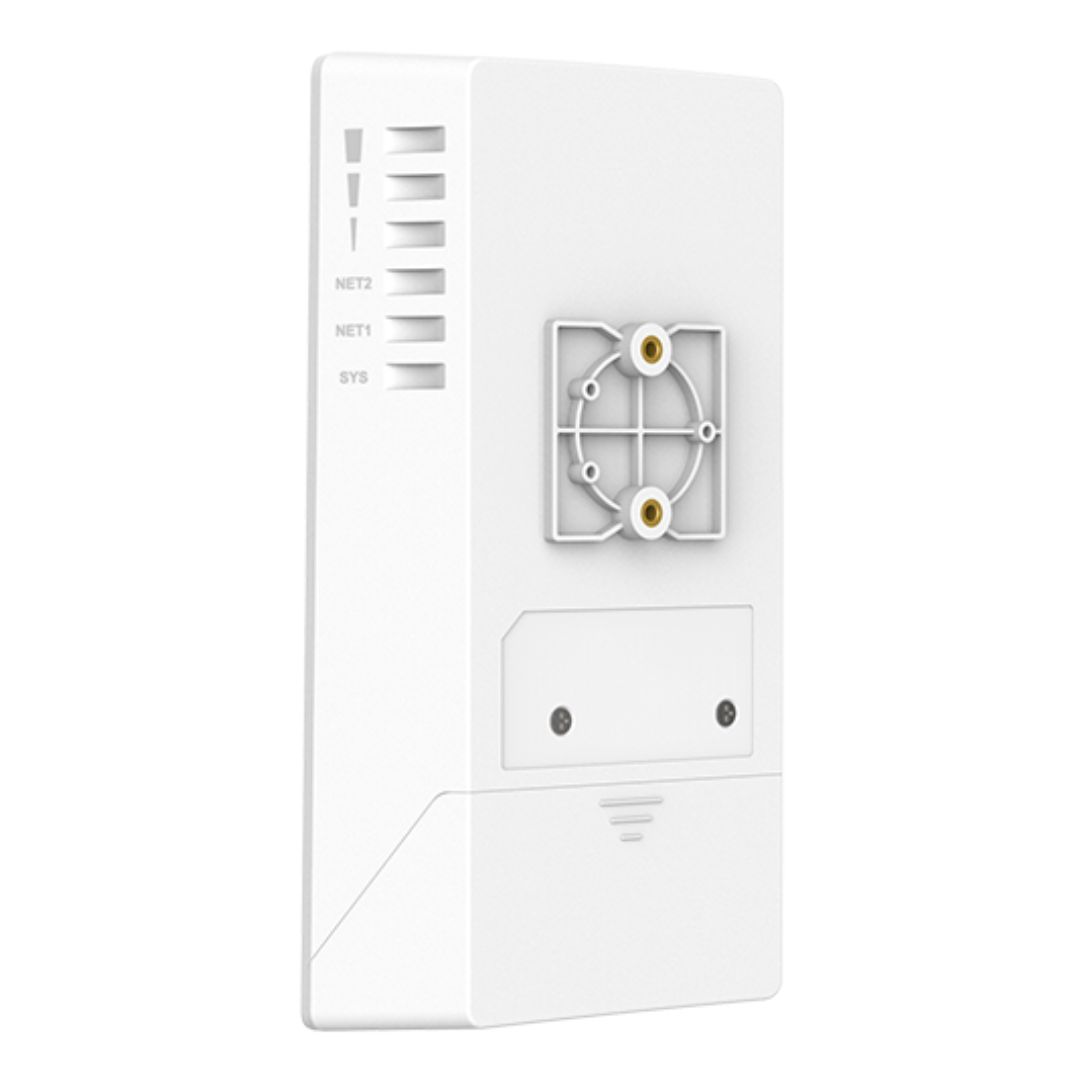

• LEDs: 1 x tri-colour for device tracking/status, 3 x signal strength, 2 x network port status
• Auxiliary: 1 x Reset and Pairing Button

Power

• PoE input: 802.3af/at
• DC input: +24V (compatible with 16V–48V)
• PSE output: max 13W with PoE+ input; max 25W with +24V DC/2A input
• Maximum power consumption: 13W

WLAN

• IEEE 802.11 a/n/ac/ax
• Single 5G SSID (disabled by default)
• Auto channel support
• Transmit power selection
• Management Wi-Fi support
• TDMA support
• Pairing: one-key pairing, web pairing

Network and Security

• Network: Static or DHCP IPv4, VLAN support
• Security: WPA2-PSK, WPA3-PSK
• QoS: 802.11e/WMM, 802.1p, 802.1q, ToS

Management

• Local Web UI, GDMS Networking via SSH tunnelling, GWN Manager, GWN App
• Management protocols: TR-069, SNMP
• System tools: Link Test, Antenna Alignment, Spectrum Analyser

Physical

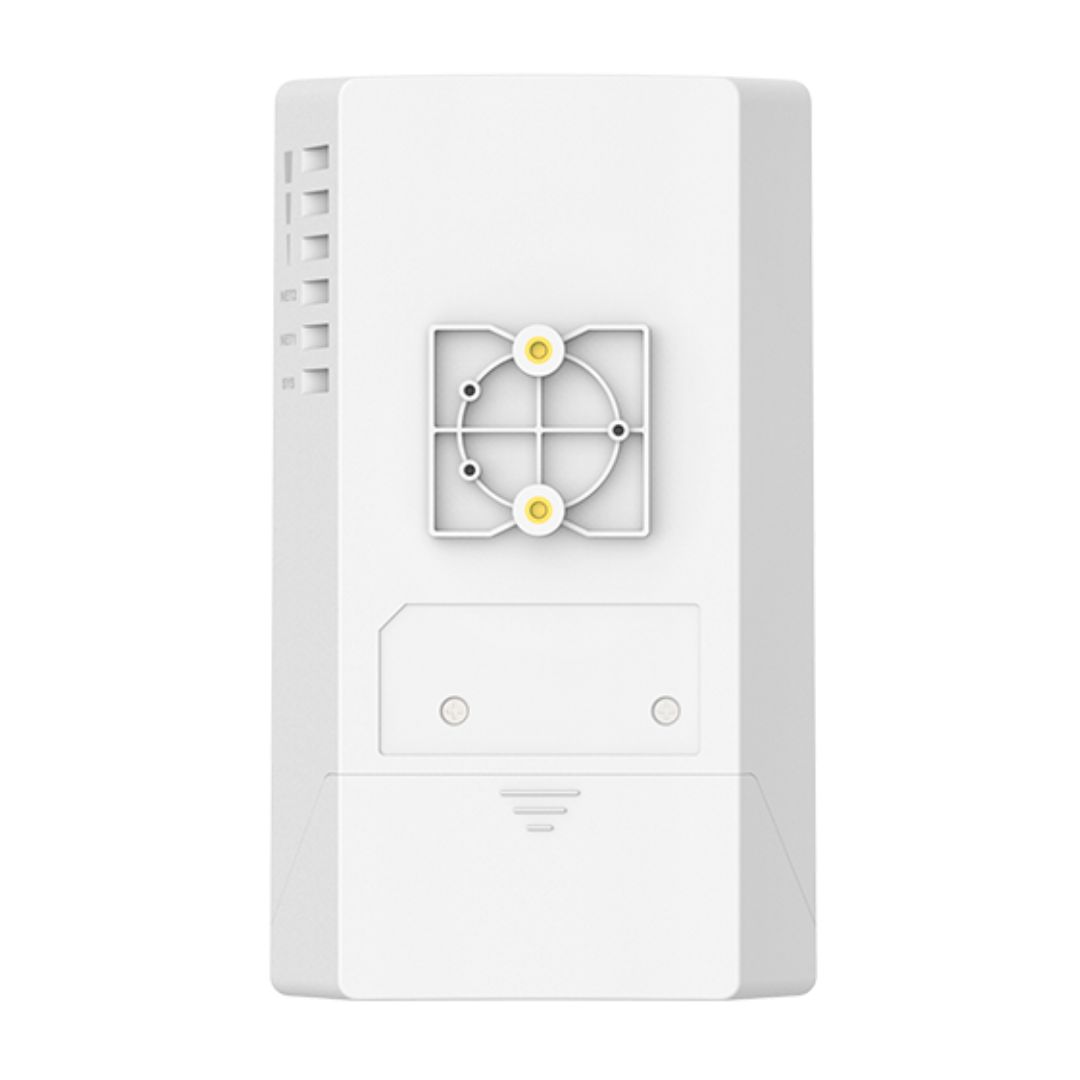

• Mounting: wall mount or pole mount (kits included)
• Weatherproof: IP66
• Operating temperature: -30°C to 60°C
• Storage temperature: -30°C to 70°C
• Humidity: 5% to 95% non-condensing
• Dimensions (unit): 180 x 102 x 38mm
• Weight (unit): 412g
• Compliance: FCC, CE, RCM, IC

Package Contents

• 1 x Grandstream GWN7302 PtP/PtMP Fixed Wireless Bridge
• 1 x Mounting Kit
• 1 x Quick Start Guide
