Grandstream HT801-V2 Analog Telephone Adapter (HT801-V2)
|
|
20/07/2026
/grandstream-ht801v2-analog-telephone-adapter-ht801v2-p-10320.html
36.85EUR exc. VAT
Availability: Availability: In Stock
Key Features
- 1x FXS port
- 1x 10/100Mbps port
- Supports 3-way voice conferencing
Pricing
Volume Price Discounts
| 5+ | 36.38EUR | | 10+ | 36.03EUR | | 20+ | 35.56EUR |
Shipping
Shipping Options
Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.
Support
Product install/setup
Downloads
Documents & Manuals
No documents available for download
SKU:HT801-V2
|
|
Available Options:
- Product Details
- Specification
- Reviews
- White Papers / Case Studies
- Questions

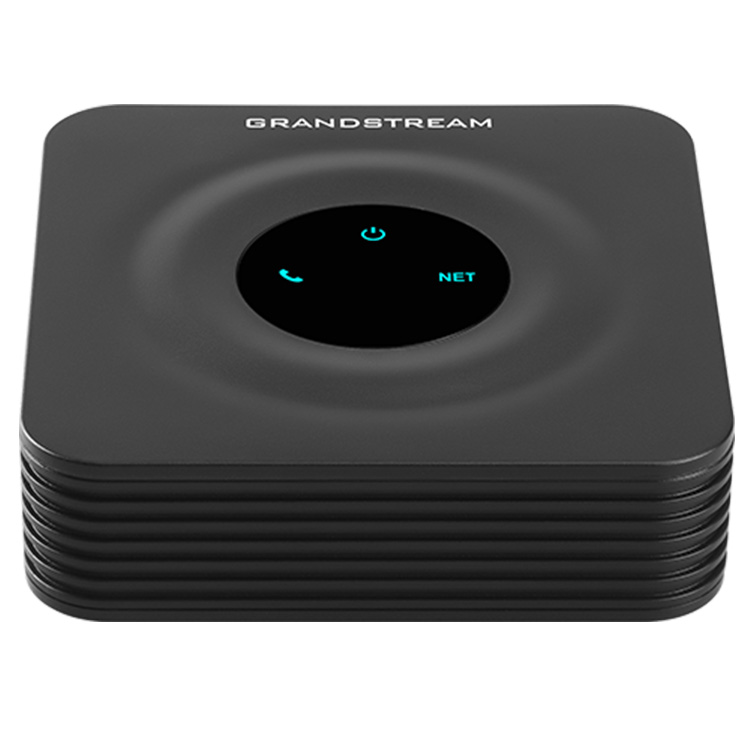

Grandstream Analog Telephone Adapter (HT801-V2)
The Grandstream HT801-V2 is a single port analogue telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution.
- Supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- LED Indicators - POWER, NET, PHONE
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream's UCM series of IP PBXs for Zero Configuration provisioning
- Supports advanced telephony features, including call transfer, call forward, call waiting, do not disturb, message waiting indication, multi-language prompts, flexible dial plan and more
The HT801-V2s ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analogue phones. The HT801-V2 is an ideal ATA for individual use as well as commercial IP voice deployments worldwide.
Grandstream HT801-V2 - Technical Specifications
Interfaces

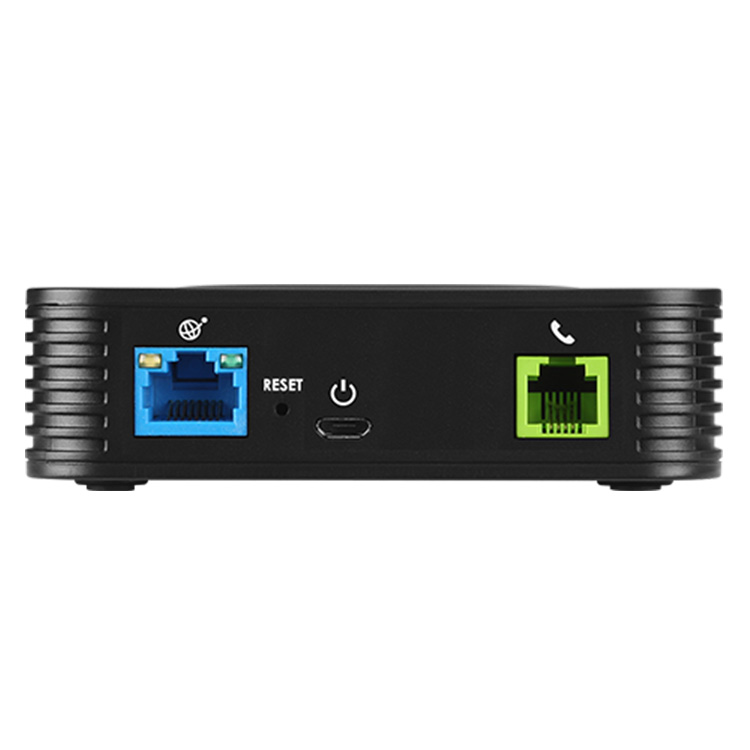

- Telephone Interfaces: One (1) FXS port
- Network Interfaces: One (1) 10/100Mbps auto-sensing ethernet port (RJ45)
- LED Indicators: POWER, INTERNET, PHONE
- Factory Reset Button: Yes
Voice, Fax, Modem
- Telephony Features: Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
- Voice Codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
- Fax Over IP: T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
- Short/Long Haul Ring Load: 5 REN: Up to 1km on 24 AWG
- Caller ID: Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
- Disconnect Methods: Busy Tone, Polarity Reversal/Wink, Loop Current
Signaling
- Network Protocols: TCP/IP/UDP, RTP/RTCP (RFC1889,1890), HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, Telnet, STUN (RFC3489, 5389), SIP (RFC3261), SIP over TCP/TLS, SRTP, SNMP, TR-069, IMS/3GPP, IPoE
- QoS: Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, DiffServ, MPLS)
- DTMF Method: In-audio, RFC2833 and/or SIP INFO
- Provisioning and Control: HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
Security
- Media: SRTP
- Control: TLS/SIPS/HTTPS
- Management: syslog support, SSH, remote management using web browser
Physical
- Universal Power Supply:
- Input: 100-240VAC, 50-60Hz
- Output: 5.0VDC/1.0A
- Environmental:
- Operational: 32º – 104ºF or 0º – 40ºC
- Storage: 14º – 140ºF or -10º – 60ºC
- Humidity: 10 – 90% Non-condensing
- Dimension: Dimensions: 100mm x 100mm x 29.5mm
- Weight: 102g
Compliance
- FCC: Part15B
- CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/NZS CISPR22, AS/NZS60950.1, S003 K.21
 |
