Grandstream Indoor AX6000 Wi-Fi 6 Access Point (GWN7664E)

0 Based on 0 ratings.
Write a Review
19/08/2025 143.05EUR exc. VAT
171.66EUR inc. VAT
Availability:
Availability: Coming Soon

Qty:
Key Features

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:GWN7664E
Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies

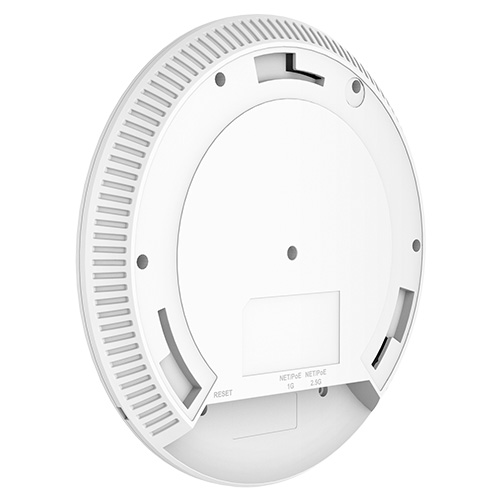

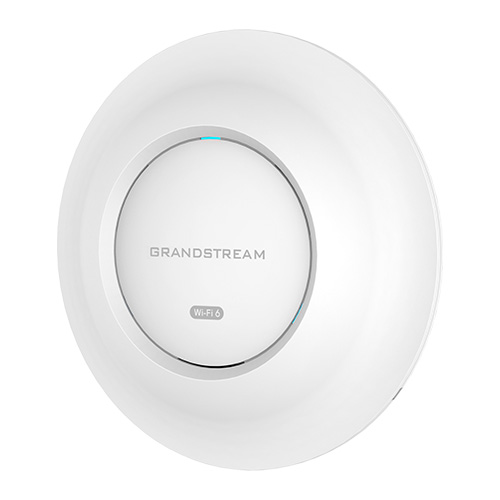

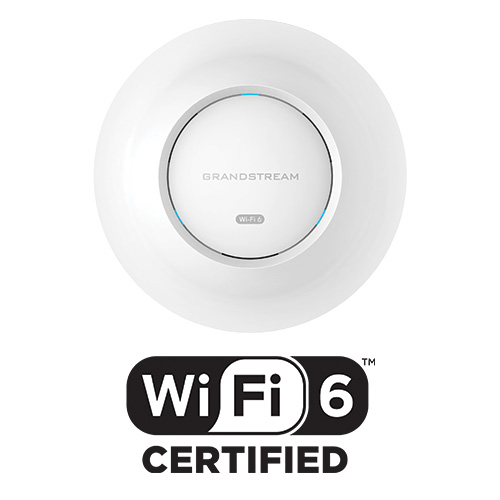

Grandstream Indoor AX6000 Wi-Fi 6 Access Point (GWN7664E)

The Grandstream GWN7664E is a powerful, enterprise-grade high-performance 802.11ax Wi-Fi 6 access point, ideal for small-tomedium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4x4:4 MU-MIMO with OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput of upto 6Gbps and expanded Wi-Fi coverage range. The GWN7664E is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7664E is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 512 concurrent clients and dual 2.5 Gigabit network ports with PoE+, the GWN7664E is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.

Grandstream GWN7664E Key Features:

  • 6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughout
  • Dual-band 4x4:4 MU-MIMO with OFDMA technology
  • Up to 175-meter coverage range
  • Support 512 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self power adaptation upon auto detection of PoE+
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Grandstream GWN7664E Technical Specifications

Mechanical

  • Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
  • Antennas:
    8 individual internal antennas, 4 per band
    2.4GHz, gain 3.5dBi
    5 GHz, gain 4.5dBi
  • Wi-Fi Data Rates:
    2.4G:
    IEEE 802.11ax: 7.3 Mbps to 1147 Mbps
    IEEE 802.11n: 6.5Mbps to 600Mbps
    IEEE 802.11b: 1, 2, 5.5, 11 Mbps
    IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    5G:
    IEEE 802.11ax: 7.3 Mbps to 4804 Mbps
    IEEE 802.11ac: 6.5 Mbps to 3467 Mbps
    IEEE 802.11n: 6.5Mbps to 600Mbps
    IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
  • Frequency Bands:
    2.4GHz radio: 2400 - 2483.5 MHz
    5GHz Radio: 5150 - 5895 MHz
    *Not all frequency bands can be used in all regions
  • Channel Bandwidth:
    2.4G: 20 and 40 MHz
    5G: 20, 40,80 and 160 MHz
  • Wi-Fi and System Security: WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
  • MIMO:
    4×4:4 2.4GHz
    4×4:4 5GHz
  • Coverage Range: Up to 175 meters *Coverage range can vary based on environment
  • Maximum TX Power:
    2.4G: 26.5dBm
    5G: 25.5dBm
    *Maximum power varies by country, frequency band, and MCS rate
  • Receiver Sensitivity:
    2.4G
    802.11b: -97dBm@1Mbps, -89dBm@11Mbps;
    802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
    802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
    802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
    5G
    802.11a: -93dBm @6Mbps, -75dBm @54Mbps;
    802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
    802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
    802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -61dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11;
    802.11ax 160MHz:-55dBm @MCS11;
  • SSIDs: 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
  • Concurrent Clients: 512
  • Network Interfaces: 2 x 2.5G Ports
  • Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock
  • Mounting: Indoor wall mount or ceiling mount, kits included
  • LEDs: 3 tri-color LEDs for device tracking and status indication
  • Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
  • QoS: 802.11e/WMM, VLAN, TOS
  • Network Management:
    Embedded controller can manage up to 50 local GWN APs
    GDMS Networking offers a free cloud management platform for unlimited GWN APs
    GWN Manager offers premise-based software controller for up to 3,000 GWN APs
  • Power and Green Energy Efficiency:
    PoE 802.3at;
    Maximum Power Consumption: 21W
  • Environmental:
    Operation: 0°Cto 50°C
    Storage: -10°C to 60°C
    Humidity: 10% to 95% Non-condensing
  • Physical:
    Unit Dimension: 205.3mmx205.3mmx45.9mm; Unit Weight: 0.714Kg
    Entire Package Dimension: 258mmx247mmx86mm; Entire Package Weight: 1.06Kg
  • Package Content: GWN7664E 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
  • Compliance: FCC, CE, RCM, IC

Specifications Tab
