Grandstream Indoor Wi-Fi 6E Access Point (GWN7665)

The Grandstream GWN7665 is a powerful, enterprise-grade Wi-Fi 6E access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers tri-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi coverage range. The GWN7665 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7665 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, Bluetooth® Low Energy (BLE) 5.2, 384 concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7665 is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.

Grandstream GWN7665 Key Features:

  • 5.4Gbps aggregate wireless throughput 3.5 Gigabit wireline ports
  • Tri-band 2x2:2 MU- MIMO with DL/UL OFDMA technology
  • Up to 175-meter coverage range
  • Support 384 concurrent Wi-Fi client
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self power adaptation upon auto detection of PoE or PoE+
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Grandstream GWN7665 Technical Specifications

Mechanical

  • Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
  • Antennas:
    7 single frequency antennas
    2.4GHz x 2, gain 4.0dBi
    5 GHz x 2, gain 5.0dBi
    6 GHz x 2, gain 4.5dBi
    BT, gain 4.0dBi
  • Wi-Fi Data Rates:
    2.4G:
    IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
    IEEE 802.11n: 6.5Mbps to 300Mbps
    IEEE 802.11b: 1, 2, 5.5, 11 Mbps
    IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    5G:
    IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
    IEEE 802.11ac: 6.5 Mbps to 1734 Mbps
    IEEE 802.11n: 6.5Mbps to 300Mbps
    IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    6G:
    IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
    IEEE 802.11ac: 6.5 Mbps to 1734 Mbps
    IEEE 802.11n: 6.5Mbps to 300Mbps
    IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
  • Frequency Bands:
    2.4GHz Radio: 2412 - 2484 MHz
    5GHz Radio: 5180 - 5825 MHz
    6GHz Radio: 5945 -7125MHz
    *Not all frequency bands can be used in all regions
  • Channel Bandwidth:
    2.4G: 20 and 40 MHz
    5G: 20, 40, 80, and 160 MHz
    6G: 20, 40 80 and 160MHz
  • Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
  • MIMO:
    2x2:2 2.4GHz
    2x2:2 5GHz
  • Coverage Range: Up to 175 meters *coverage range can vary based on environment
  • Maximum TX Power:
    2.4G: 26dBm
    5G: 26dBm
    6G: 26 dBm
    *Maximum power varies by country, frequency band and MCS rate
  • Receiver Sensitivity:
    2.4G
    802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
    802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
    802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
    5G
    802.11a: -90dBm @6Mbps, -72dBm @54Mbps;
    802.11n 20MHz: -71dBm @MCS7; 802.11n 40MHz:-68dBm @MCS7;
    802.11ac 20MHz: -65dBm@MCS8; 802.11ac: 40MHz:- 61dBm @MCS9; 802.11ac 80MHz: -57dBm @MCS9;802.11ac 160MHz: -55dBm @ MCS9;
    802.11ax 20MHz: -58dBm @MCS11; 802.11ax 40MHz: -56dBm @MCS11;802.11ax 80MHz: -54dBm @MCS11;802.11ax 160MHz: -51dBm @ MCS11
    6G
    802.11a: -90dBm @6Mbps, -72dBm @54Mbps;
    802.11n 20MHz: -71dBm @MCS7; 802.11n 40MHz:-68dBm @MCS7;
    802.11ac 20MHz: -65dBm@MCS8; 802.11ac: 40MHz:- 61dBm @MCS9; 802.11ac 80MHz: -57dBm @MCS9;802.11ac 160MHz: -55dBm @ MCS9;
    802.11ax 20MHz: -58dBm @MCS11; 802.11ax 40MHz: -56dBm @MCS11;802.11ax 80MHz: -54dBm @MCS11;802.11ax 160MHz: -51dBm @ MCS11
  • SSIDs: 48 SSIDs total, 16 per radio (2.4GHz & 5GHz & 6GHz)
  • Concurrent Clients: 384

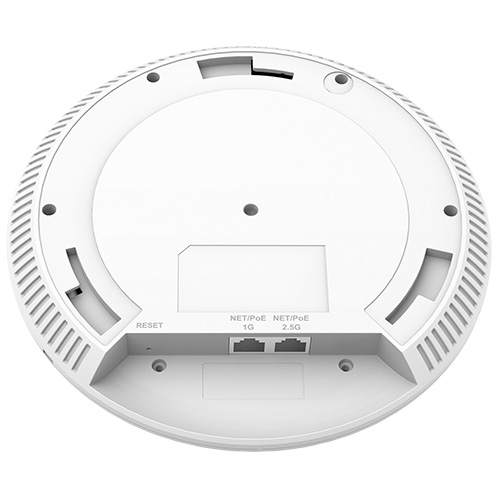

  • Network Interfaces: 1x autosensing 10/100/1000 Base-T Ethernet Port
    1x autosensing 10/100/2500 Base-T Ethernet Port
  • Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock
  • Bluetooth®: BLE 5.2
  • Mounting: Indoor wall mount or ceiling mount, kits included
  • LEDs: 3 tri-color LEDs for device tracking and status indication
  • Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
  • QoS: 802.11e/WMM, VLAN, TOS
  • Network Management:
    Embedded controller can manage up to 50 local GWN APs
    GDMS Networking offers a free cloud management platform for unlimited GWN APs
    GWN Manager offers premise-based software controller for up to 3,000 GWN APs
  • Power and Green Energy Efficiency: PoE/PoE+ 802.3af/at;
    Maximum Power Consumption:  22.55W
  • Environmental:
    Operation: : 0°Cto 50°C
    Storage: -10°C to 60°C
    Humidity: 10% to 95% Non-condensing
  • Physical:
    Unit Dimension: 205.3mmx205.3mmx45.9mm; Unit Weight: 765g
    Entire Package Dimension: 258mmx247mmx86mm; Entire Package Weight: 1106g
  • Package Content:  GWN7665 Wireless AP, Mounting Kits, Quick Start Guide
  • Compliance: FCC, CE, RCM, IC,UKCA
