OpenVox SWG-M204 Wireless Gateway with 4 LTE Channels (SWG-M204L)

0 Based on 0 ratings.
14/07/2020 £423.00 exc. VAT
507.60 inc. VAT
Availability: Usually ships in 1 to 2 weeks
Qty:
Key Features
  • 4 LTE channels
  • Friendly GUI and easy configuration
  • Support SIP/IAX2 Protocol

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 15:30.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:SWG-M204L
Brand: OpenVox
Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies

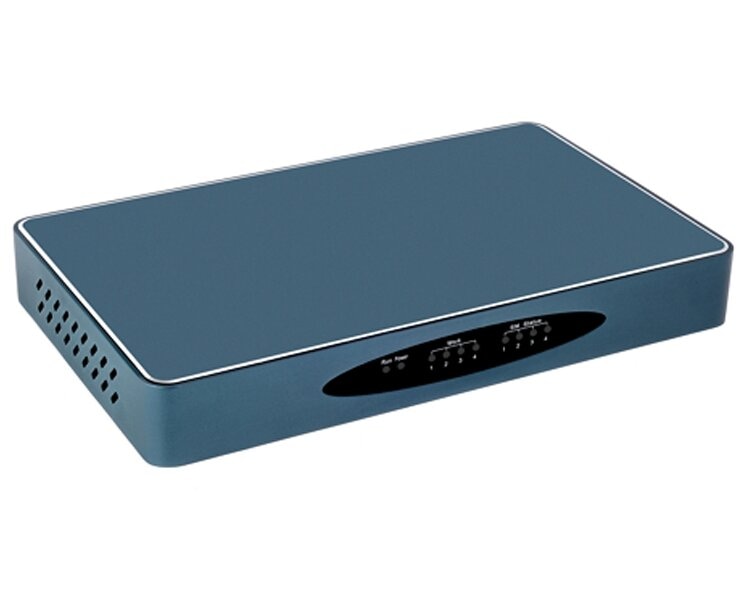

OpenVox SWG-M204 Wireless Gateway with 4 LTE Channels (SWG-M204L)

The OpenVox SWG-M204L provides 4 LTE channels. They can bring you excellent HD voice service with multiple codecs, including G.711U, G.711A, GSM, G.722, G.726, G.729, and also flexible SMS service with multiple SMS API. The SWG-M204L is 100% compatible with Asterisk, 3CX, FreePBX, FreeSWITCH and VOS VoIP operating platform, and help users reduce telecommunications and communication costs.

OpenVox SWG-M204L Key Features

  • Support SIP/IAX2 Protocol
  • DTMF Mode: RFC2833/Inband/SIP Info
  • SIP V2.0 RFC3261 Compliance
  • Abundant Codecs:G.711A, G.711U, G.729, G.722, G.726, GSM
  • Work as both SIP Client and Server mode
  • IPv4,UDP/TCP,ARP, DHCP, NTP, DNS, HTTP/ HTTPS, SSH
  • PPTP VPN
  • Ping & Traceroute
  • Firewall
  • Friendly GUI and easy configuration
  • WEB/SSH Access and Management
  • Support configuration files backup and restore
  • Support multiple languages
  • Firmware Update by Web
  • CDR
  • Detailed Log
  • Network and SIP capture
  • SIP/IAX2/Wireless Group Settings
  • Random call interval
  • Call Duration Limitation
  • Open API Protocol (based on Asterisk)
  • Two-stage dialing
  • Multiple SMS API
  • SMS/USSD
  • PIN Identification
  • SMS Bulk Transceiver and Auto Resend
  • SMS to Email
  • SMS Forwarding and Quick Reply
  • SMS Remotely Controlling Gateway
  • Flexible Call Routings
  • Schedule Reboot
  • Support MMP
  • Support for Custom Scripts, Dialplans
  • Support OpenVox Cloud Service
  • CLID Display & Hide (Need operators’ support )
OpenVox SWG-M204L - Technical Specifications

General

  • Module Type: LTE
  • Module Number: 4
  • Channel Number: 4
  • Band:
    - China/India: LTE FDD: B1/B3/B5/B8, LTE TDD: B38/B39/B40/B41, WCDMA: B1/B8, TD-SCDMA: B34/B39, CDMA: BC0, GSM: 900/1800MHz
    - Europe/Middle East/Africa/ Korea/Thailand: LTE FDD: B1/B3/B5/B7/B8/B20, LTE TDD: B38/B40/B41, WCDMA: B1/B5/B8, GSM: B3/B8
    - Australia/New Zealand/ Taiwan/Brazil: LTE FDD: B1/B2/B3/B4/B5/ B7/B8/B28, LTE TDD: B40, WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8
  • Weight (without antenna): 663g
  • Power: 28W
  • Dimension (without antenna): 206*125*27mm
  • SIM Card: Hot-Swap
  • LAN: 1*10/100M
  • WAN: 1*10/100M
  • Operation Temperature: 0℃ ~ 40℃
  • Operation Humidity Range: 10% ~ 90%
  • Storage Temperature Range: -20℃ ~ 70℃

Specifications Tab
