Sangoma T116 16-Span T1/E1/J1 Tapping Board

0 Based on 0 ratings.
1,758.35 exc. VAT
2,110.02 inc. VAT
Availability:In stock for next day delivery
Key Features

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 15:30.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

Brand: Sangoma
Available Options:

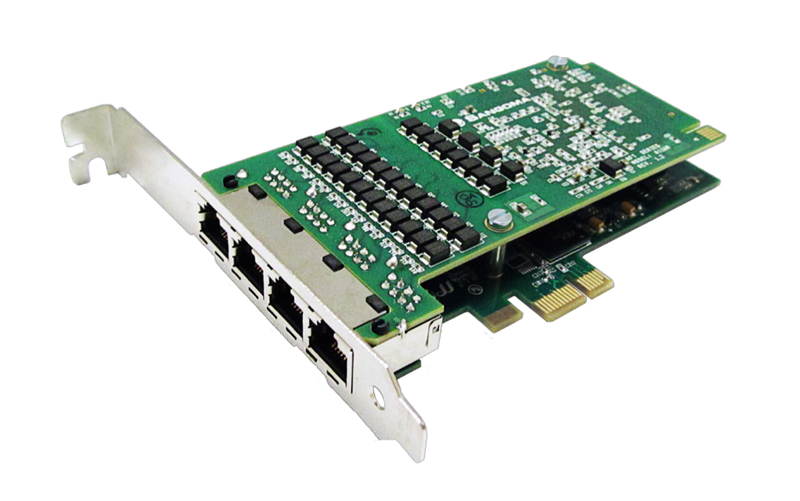

Sangoma T116 16-Span T1/E1/J1 Tapping Board

The Sangoma T116 16-Span T1/E1/J1 Tapping Board is part of Sangoma’s family of Advanced Flexible Telecommunications hardware product line–using the same PCI Express interface that is providing superior performance in critical systems all over the world.

Typical Sangoma T116 Applications:

  • Fraud Detection
  • Call Recording
  • Call Logging and Security

The Sangoma T116 supports the passive tapping of up to 240 voice calls using up to 16 T1, E1 or J1 lines. With Sangoma boards, you can take advantage of hardware and software improvements, as soon as they become available. The T116, like all boards in Sangoma’s AFT family, is field upgradable with crash-proof firmware. Choose the T116 to collect call control information, telecom protocol information and voice/media.

Technical Specification of Sangoma T116

  • 16 Receive-only ports with optimum PCI-Express interface for high performance
  • Support for Asterisk®, FreeSWITCH®, and Yate PBX/IVR
    Projects, as well as other open source and proprietary PBX,
    Switch, IVR, or VoIP gateway applications
  • All of Sangoma's AFT products use the same base PCI
    interface board. Fully compatible with all commercially
    available motherboards—proper PCI-standard interrupt
    sharing without manual tuning
  • Dimensions: 2U Form factor: 120 mm x 55 mm for use in
    restricted chassis; includes high-quality, tested RJ45
    port-splitter cables and short 2U mounting clips for
    installation in 2U rack-mount servers
  • Autosense compatibility with 5 V and 3.3 V PCI busses
  • Intelligent hardware: Downloadable FPGA programming with
    multiple operating modes. Add new features related to voice
    and/or data when they become available
  • Line decoding: HDB3, AMI, B8ZS
  • Framing: CRC-4, Non CRC4, ESF, SF, D4. Also compatible
    with Japan's J1
  • PCI Express: 1 Lane PCI Express bus
  • Maximum operational power: 5.5 W (1.67 A @ 3.3 V)
  • Temperature range: 0–50 °C
  • 32-bit bus master DMA data exchanges across PCI interface
    at 132 Mbytes/sec for minimum host processor intervention
  • Ring buffer DMA handling for minimum host intervention and
    guaranteed data integrity on high volume systems
  • Supports Robbed Bit Channel Associated Signaling
    (CAS) and ISDN PRI
  • T1/E1 and fractional T1/E1, multiple channel HDLC per line
    for mixed data/TDM voice applications
  • Optimized per channel DMA streams and hardware-level
    HDLC handling unload the host CPU
  • Uses raw bitstream interfaces to support arbitrary
    non-standard line protocols, such as non-byte aligned
    monosynch or bisynch
  • WANPIPE® routing stack is completely independent of TDM
    voice application for total system reliability
  • WANPIPE® supports certified, field-tested, and reliable
    Frame Relay, PPP, HDLC, and X.25

Operating Systems

  • Windows® 2003, Windows®
    XP, Windows® Server 2008,
    Windows® Vista, Windows® 7
  • Linux (all versions, releases and distributions from 1.0 up)

Line Protocols

  • Voice CAS, MFC/R2, PRI, ATM, Frame Relay, X.25, HDLC,
    PPP, SS7, Transparent bit-stream, BSC

Higher Level Protocols

  • IP/IPX over Frame Relay/PPP/HDLC/X.25, X.25 over Frame
    Relay (Annex G), BSC over X.25, SNA over X.25, PPPoE,
    PPPoA, IP over ATM


  • FCC Part 15 Class A, FCC Part 68, CISPR 22, EN 55022,
    Class A, CIPSR 24, AFIC-2016, IEC 60950, JATE
  • Technical certifications in Russia and Malaysia

Diagnostic Tools

  • WANPIPEMON, SNMP, System logs
  • Technical certifications in Russia and Malaysia
