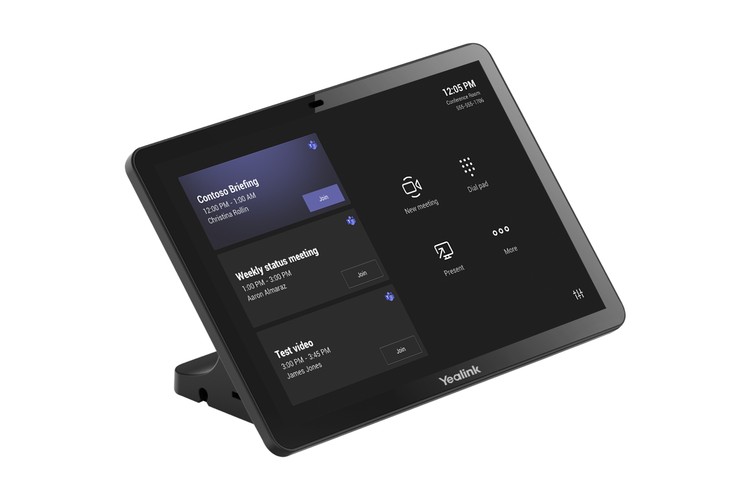

Yealink CTP25 Touch Console

The Yealink CTP25 is a 10.1-inch touch console running Android 13, specifically designed for meeting control. With its IPS display at 1280×800 resolution, high screen-to-body ratio, and multi-point capacitive touch, users can effortlessly join and manage meetings. The CTP25 integrates screen sharing, wired BYOD via USB-C (supporting up to 4K content sharing and up to 45W PD2.0 laptop charging), and ultrasonic proximity detection. It connects directly to conferencing endpoints such as the Yealink MeetingBar A40, and is certified for Microsoft Teams and Zoom. The device supports PoE (IEEE 802.3af and above) or an included 65W PD power adapter, with flexible installation options including tabletop placement, table mount, or wall mount.

Yealink CTP25 Technical Specifications:

Operating System

• Android 13.0

Display

• Screen: 10.1 inch IPS
• Resolution: 1280 × 800
• Contrast ratio: 1000:1
• Brightness: 350 cd/m² (typical)
• Viewing angle: 178°(H) / 178°(V)
• Multi-point capacitive touch
• Anti-glare
• Anti-fingerprint

Audio

• Built-in Ultrasound Unit

Wireless

• Wi-Fi 6: 802.11a/b/g/n/ac/ax
• Bluetooth 5.0

Network

• VLAN, 802.1P/Q, and Diffserv
• 802.1X and LLDP-MED
• HTTPS

Device Management

• Yealink Web Portal
• Yealink Device Management Platform
• Teams Admin Center
• Zoom Device Management

Physical Interface

• 1× USB-A port
• 2× USB-C port
• 1× RJ-45 (PoE IEEE 802.3af compliant)
• 1× Reset hole
• Motion Sensor

Power

• Power Adapter: 65W PD (included)
• PoE: IEEE 802.3af and above
• Power Consumption: Standby 5W / Average 7.3W / Peak 15.2W

Other Physical Features

• Weight: 0.683 kg
• Operating Temperature: -10 – 45°C
• Storage Temperature: -30 – 70°C
• Dimensions (W x D x H): 28.6 x 19.8 x 14.0 cm

Package Contents

• CTP25 Touch Console
• 7.5m Ethernet Cable
• 1.2m USB-C Cable
• PD Power Adapter (65W)
• Screwdriver
• High Stand
• Cable Management Cover
• M3 Screws × 10
• Cable Ties × 5
• Quick Start Guide
• Rotatable Desktop Mount (Optional)
• Wall Mount (Optional)
