Yealink MCoreKit-C5U Microsoft Teams Rooms Kit (MCoreKit-C5U-MS)

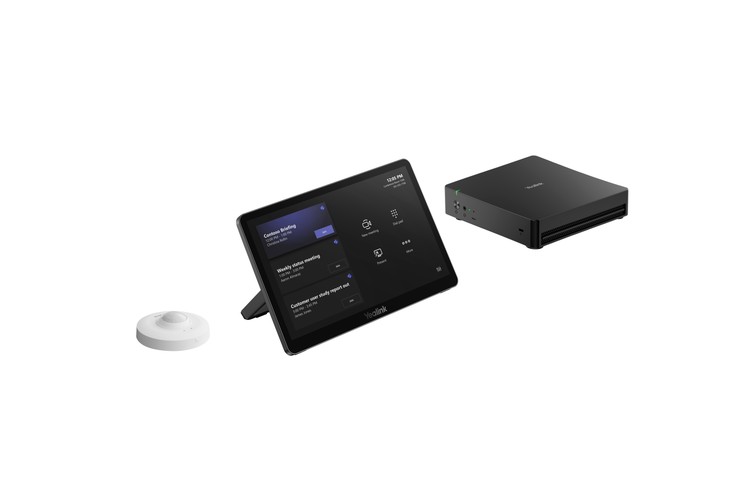

The Yealink MCoreKit-C5U (MCoreKit-C5U-MS) is a Microsoft Teams Rooms system bundle combining the Yealink MCore 4 Mini-PC, the MTouch Plus 11.6-inch touch panel, and the RoomSensor occupancy sensor. Pre-loaded with Microsoft Teams Rooms and Yealink RoomConnect, the system provides a native Teams experience with one-click meeting control, intelligent room management, and flexible wired and wireless content sharing. The MCore 4 is powered by the Intel Ultra5 125H processor with NPU for AI-enhanced conferencing. The RoomSensor operates wirelessly via Bluetooth, detecting room occupancy and displaying real-time temperature and humidity on the MTouch Plus. All devices support the Yealink Device Management Platform for remote monitoring, configuration, and updates.

Yealink MCoreKit-C5U Technical Specifications:

System Preload

• Windows 11 IoT Enterprise x64
• Windows 11 IoT Enterprise licence
• Microsoft Teams Rooms
• Yealink RoomConnect

MCore 4 Mini-PC

• Processor: Intel Ultra5 125H
• Memory: 16 GB (2 × 8 GB) DDR5
• Storage: 256 GB SSD
• HDMI-Out 2.1: × 1
• HDMI-Out 2.0: × 2
• HDMI-In: × 1
• USB 3.0 Type-A: × 4
• MTouch port (RJ-45): × 1
• LAN port for AV network: × 1
• 10/100/1000 Gigabit Ethernet: × 1
• 3.5mm headphone port: × 1
• Power supply port: × 1
• Reset port: × 1
• Security slot: × 1
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT5.2

MTouch Plus Touch Panel

• Display: 11.6-inch narrow bezel IPS
• Resolution: 1920 × 1080
• Screen angle: 30° to 70°
• Support frame angle: 50° to 180°
• Content sharing: Wired (HDMI / USB-C) and wireless (with WPP30)
• Wireless sharing resolution: 1080P / 30 fps
• External PD power supply: Supported
• Deployment: Desktop placement, desktop fixed, or wall-mounted

RoomSensor

• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 95%

Other Physical Features

• Dimensions (W × D × H): confirm — not stated in datasheet

Package Contents

• 1× Yealink MCore 4 (Gen-4 Mini-PC)
• 1× Yealink MTouch Plus (Gen-3 touch panel)
• 1× Yealink RoomSensor
