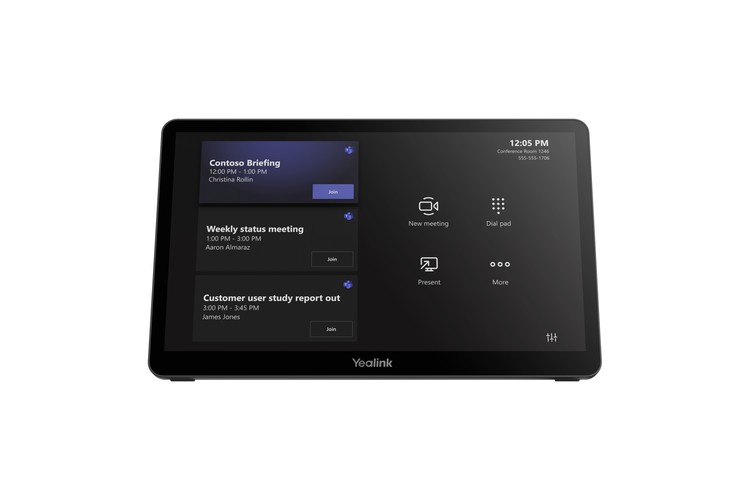

Yealink MTouch Plus-EXT Touch Panel

The Yealink MTouch Plus-EXT is a touch panel extension accessory for the MTouch Plus, enabling a multi-touch console solution with up to five simultaneous control points across different positions in the meeting room. Equipped with an 11.6-inch capacitive touchscreen at 1920×1080 resolution and a narrow bezel design with an 80% screen-to-body ratio, it shares the same design language as the MTouch Plus for a clean and uniform room appearance. Powered and connected via a single PoE network cable (IEEE 802.3af), deployment is simple — place it on the desktop, fix it to a surface, or wall-mount it to suit the room layout.

Yealink MTouch Plus-EXT Technical Specifications:

Display

• 11.6-inch capacitive touchscreen
• Resolution: 1920 × 1080
• Screen-to-body ratio: 80%

Interface

• 1× Type-C Debug Port
• 1× PoE Power Port

Connectivity & Power

• Power: PoE (IEEE 802.3af)
• Bandwidth required: 8 Mbps per unit
• Maximum units per MTouch Plus: 4

Other Physical Features

• Weight: 0.908 kg
• Dimensions (W x D x H): 32.7 x 22.0 x 10.5 cm

Package Contents

• MTouch Plus-EXT Touch Panel
• 1× 7.5m Internet Cable
• 1× 3m Internet Cable
• YL PoE30 (IEEE 802.3af)
• Mounting Bracket
• Double-Coating Tape
