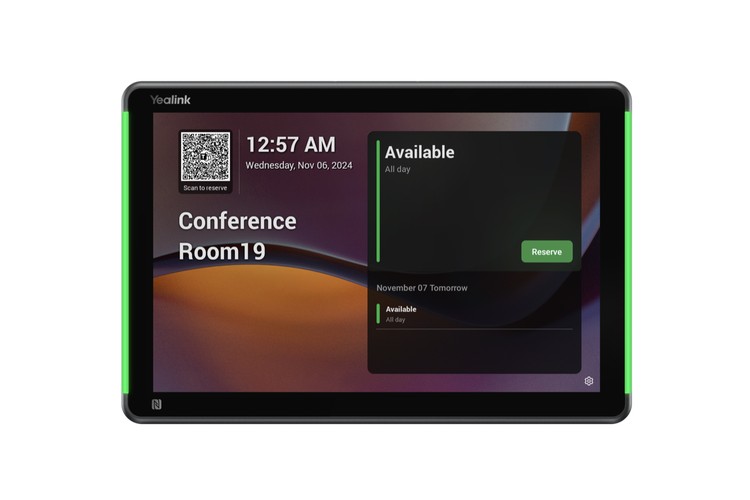

Yealink RoomPanel Plus E2 Meeting Room Scheduling Panel

The Yealink RoomPanel Plus E2 is a 10.1-inch multifunctional meeting room scheduling panel running Android 13, designed for the modern office environment. It features full RGB programmable LED background illumination that instantly communicates room availability from all angles, and includes multi-point touch capability, a built-in NFC/RFID reader, enhanced microphone arrays, and speakers. The RoomPanel Plus E2 can act as a stand-alone gateway, connecting to room occupancy sensors to automatically update meeting room schedules. Ambient light and TOF proximity sensors enable automatic brightness adjustment and screen wake. It supports PoE (IEEE 802.3af) or DC 12V power and can be mounted flat or at 20° inclination on walls, glass, or mullions.

Yealink RoomPanel Plus E2 Technical Specifications:

Basic

• Operating System: Android 13
• Power Supply: PoE (IEEE 802.3af) or DC 12V/1.25A

Display

• Size: 10.1" LCD Panel
• Resolution: 1280 × 800
• Touch Screen: Multi-point capacitive
• Contrast: 1000:1
• Viewing Angle: ±90°
• Anti-fingerprint Coating

Sensors

• Ambient Light Sensor
• TOF Proximity Sensor

Connectivity

• 1× Fast Ethernet port (10/100 Mbps)
• Wi-Fi: 802.11a/b/g/n/ac
• Bluetooth: 5.0
• RFID/NFC: 13.56 MHz
• 1× USB-A port
• Wired network: IEEE 802.1x (EAP-MD5, EAP-TLS, EAP-PEAP/MSCHAPv2, EAP-TTLS/EAP-MSCHAPv2)

Audio

• Microphone: 2×
• Speaker: 2×

Mounting

• Angle: No inclination or 20° inclination
• Method: Wall, glass, or side mount
• Included brackets: 0° Mount Bracket, 20° Mount Bracket, Mullion Mount Bracket

Supported Platforms

• Microsoft Teams, Zoom, Gingco, Gobright, Flowscape, Space Connect, Appspace

Other Physical Features

• Weight: 0.627 kg
• Operating Temperature: 0 – 40°C
• Operating Humidity: 10 – 95%, non-condensing
• Dimensions (W x D x H): 24.76 x [confirm] x 16.64 cm
