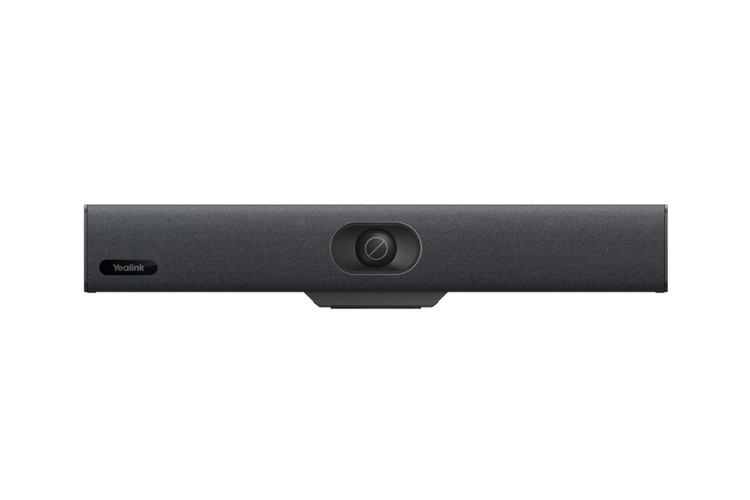

Yealink UVC34 All-in-One USB Video Bar (UVC34)

The Yealink UVC34 is an all-in-one intelligent USB video bar for small and huddle rooms and work-from-home scenarios. It features a 4K/30FPS camera with a 1/2.8-inch CMOS sensor, 120° super-wide-angle lens, and electric lens cap for automatic privacy protection. AI technologies including Auto Framing, Speaker Tracking, and AI Face Enhancement deliver an intelligent conferencing experience. Eight built-in MEMS microphones provide a 5-metre voice pickup range with Yealink Noise Proof Technology and full-duplex audio. Built-in Wi-Fi and Bluetooth 4.2 enable remote device management and wireless connectivity. The UVC34 is compatible with Microsoft Teams, Zoom, Google Meet, Cisco Webex, and most major video conferencing platforms.

Yealink UVC34 Technical Specifications:

Camera

• Sensor: 8MP 1/2.8-inch CMOS
• Field of view: 120°
• PTZ: 5x e-PTZ
• Video output: 4K/30FPS, 1440P/30FPS, 1080P/30FPS, 720P/30FPS
• Electric lens cap: Auto open/close
• Camera presets: 9

Microphone

• Built-in microphone array: 8 MEMS
• Voice pickup range: 5 m
• Yealink Noise Proof Technology
• Beamforming directed voice pickup
• Full-duplex
• Echo cancellation

Speaker

• Built-in speaker: 5W high-fidelity
• Frequency response: 100–20,000 Hz
• Sensitivity: 84 dB SPL @ 1W @ 0.5 m
• Sampling rate: 16 kHz / 32 kHz / 48 kHz
• Sound emission angle: Forward-facing
• THD: < 5% at 5W, 1kHz
• Rated impedance: 4 ohms
• Rated power: 5W / Maximum power: 8W

AI Technologies

• Auto Framing
• Speaker Tracking
• AI Face Enhancement

Connections

• USB 2.0 Type-A (USB 2.0 / 3.0 protocol): × 1
• USB 2.0 Type-B (USB 2.0 / 3.0 protocol): × 1
• Yealink microphone port (RJ-45): × 1
• Power port: × 1
• Security lock slot: × 1
• Reset slot: × 1
• Built-in Wi-Fi
• Bluetooth: 4.2

Compatibility

• Microsoft Teams and Skype for Business
• Zoom Room and Zoom client
• Google Meet, Cisco Webex, BlueJeans
• GoToMeeting, Tencent VooV Meeting, DingTalk, Yealink Meeting, Huawei Cloud WeLink
• Compatible with most video conferencing platforms (UAC1.0 / UVC1.0)

System Requirements

• Windows 7, Windows 8.1, Windows 10, Mac OS 10.10 or higher

Environmental

• Operating humidity: 10–95%
• Operating temperature: 0°C to 40°C

Other Physical Features

• Dimensions (W × D × H): 38.0 × 5.5 × 5.5 cm
• Weight: 1.28 kg
• Power adapter: AC 100–240V input, DC 48V/0.7A output

Package Contents

• 1× Yealink UVC34 all-in-one USB video bar
• 1× VCR20 Remote Control
• 2× AAA battery
• 1× Power adapter
• 1× 7m USB-B to USB-A cable
