Dinstar DAG1000-8S 8*FXS Gateway (DAG1000-8S)

0 Based on 0 ratings.
Write a Review
04/05/2024 £155.50 exc. VAT
£186.60 inc. VAT
Availability: Usually ships in 1 to 2 weeks
Qty:
Key Features
  • Cost effective gateway with 8 FXO port
  • Supports IPv4 and IPv6
  • Elastix/ Broadsoft Certification

Pricing Volume Price Discounts

No volume pricing discounts available

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:DAG1000-8S
Brand: Dinstar
Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies

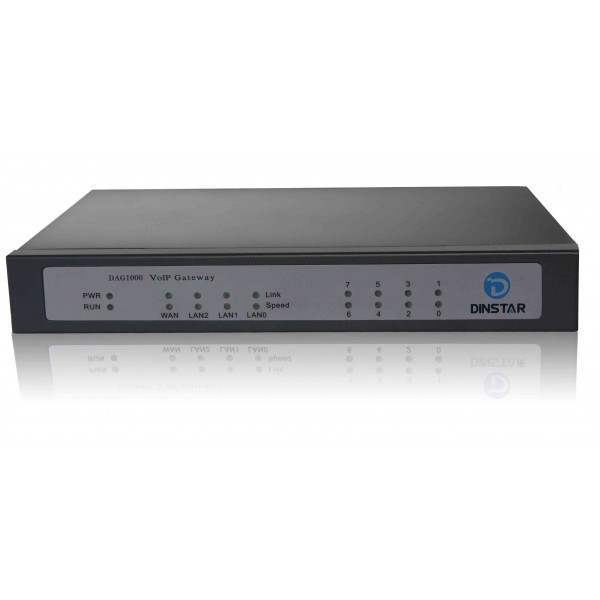

Dinstar DAG1000-8S 8*FXS Gateway (DAG1000-8S)

DAG1000-8S is a multi-functional Analog VoIP Gateway offering seamless connectivity between IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems. The device offers 8 FXS ports, fax over IP and flexible dial plans. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.

Dinstar DAG1000-8S Key Features

  • Supports SIP/MGCP
  • Primary/Backup SIP Servers
  • Flexible Routing and Manipulation
  • Supports Modem/POS
  • Elastix/Broadsoft Certification
  • Supports IPv4 and IPv6
  • Data/ Voice/ Management VLAN
  • Build-in Firewall and Access Rules
  • SNMP/TR069/Provision
  • Cloud-based Management System and Bandwidth Optimization
Dinstar DAG1000-8S - Technical Specifications

Key Features

  • Fax over IP (T.38 and Pass-Through), Support IPv4 and IPv6 , TR069 and SNMP, Elastix/Broadsoft Certification, Multiple codecs: G.711A/U, G.723.1, G.729A/B etc, Fully compatible with leading IMS/NGN, SIP based IP telephony system

Interfaces

  • Telephone Interfaces: 8 FXO, RJ11
  • Ethernet Interfaces: 1* WAN, 3* LAN, 10/100Mbps, RJ-45

Voice & Fax

  • G.711A/U law, G.723.1, G.729A/B, • Silence Suppression • Comfort Noise Generation(CNG) • Voice Activity Detection(VAD) • Echo Cancellation(G.168), with up to 128ms • Adaptive (Dynamic) Jitter Buffer • Programmable Gain Control • T.38/Pass-through • Modem/POS • DTMF mode: Signal/RFC2833/INBAND • VLAN 802.1P/802.1Q • Layer3 QoS and DiffServ

FXO

  • Connector: RJ11 • Dial Mode: DTMF/Pulse Dialing • Caller ID: FSK, DTMF • Polarity Reversal • Answer Delay • Busy Tone Detection • No Current Detection

VoIP

  • Protocol: SIP v2.0 (UDP/TCP), RFC3261 SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311 • RTP/RTCP, RFC2198, 1889 • RFC4028 Session Timer • RFC3266 IPv6 in SDP • RFC2806 TEL URI • RFC3581 NAT, rport • Primary/Backup SIP Server • Outbound Proxy • DNS SRV/ A Query/NATPR Query • SIP Trunk • Early Media/Early Answer • NAT: STUN, Static/ Dynamic NAT.

Network Features

  • Static/Dynamic IP • PPPoE • DHCP Client • IPv4/IPv6 • TCP, UDP,TFTP, FTP, ARP, RARP, Ping, NTP, SNTP, HTTP/ HTTPS, DNS • Ping / Tracert • DHCP Option 66, 120, 121

Maintenance

  • • SNMP v1/ v2/ v3 • TR069 • Auto Provisioning • Web/Telnet • Configuration Backup/Restore • Firmware Upgrade via Web • CDR • Syslog • Network Capture • NTP/Daylight Saving Time • IVR local Maintenance • Cloud-based Management

Power

  • 20W

Environmental

  • Operating Temperature: 0 ℃ ~ 45 ℃ Storage. Temperature: -20 ℃ ~80 ℃. Humidity: 10%-90% (Non-Condensing)

Physical

  • Dimension: 242*152*40mm (LxWxH), Unit Weight- 1 Kg

Compliance

  • Compliance: CE, FCC

Specifications Tab
