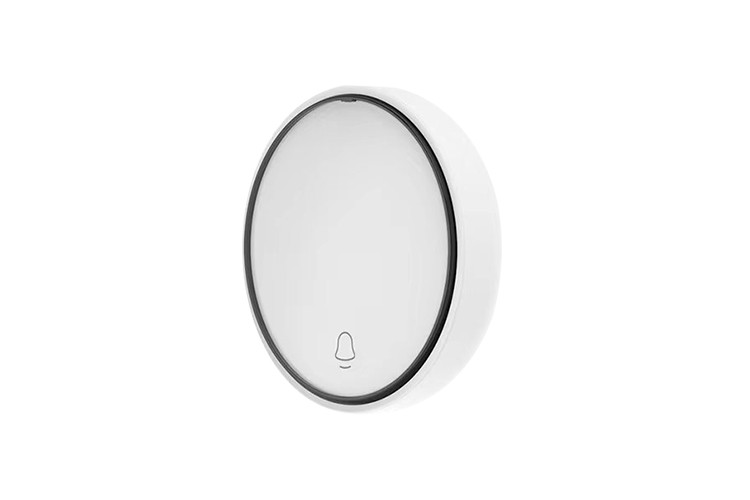

Fanvil KT20 Wireless Button (KT20)

The Fanvil KT20 Wireless Button is a rebound-type kinetic energy wireless button. It uses patented micro-energy harvesting technology, so it requires no battery, and is exceptionally compact in size.

The Fanvil KT20 can be paired with Fanvil Y501 & Y501-Y Series intercoms, the X305 Big Button IP Phone, and i506W & i507W indoor stations for equipment control.

Fanvil KT20 Technical Specifications:

Compatibility

• Compatible with Fanvil Y501 / Y501-Y Series, X305, i506W and i507W

Wireless & Power

• Power supply: Self-powered (battery-free, micro-energy harvesting)
• Radio frequency: 433MHz
• Modulation mode: FSK

Keys & Operation

• Number of keys: 1
• Operating life: ≥ 100,000 times

Operating Range

• Spacious outdoors: 120–130 m
• Spacious indoors: 6–25 m

Other Physical Features

• Material: ABS
• Working temperature: -20 to +55°C
• Dimensions (W x D x H): 7.4 x 4.28 x 7.4 cm
