SANGOMA PBXACT UC SYSTEM
Fanvil VoIP Phones

Fanvil X3S/P PoE VoIP Phone

55 Based on 1 ratings.
42.20 exc. VAT
50.64 inc. VAT
Availability:In stock for next day delivery
Qty:
Key Features
  • EHS support for headsets
  • RJ9 headset port
  • Desktop/ wall mount install options

Pricing Volume Price Discounts

5+ 41.20
10+ 40.20
15+ 39.20
20+ 38.20

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 15:30.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:X3S/P
Brand: Fanvil
Available Options:
Available Product Options:
Power Supply Required?:
Please Note: This product does not come with a power supply. If you wish to purchase one, please select this option from the menu box above.

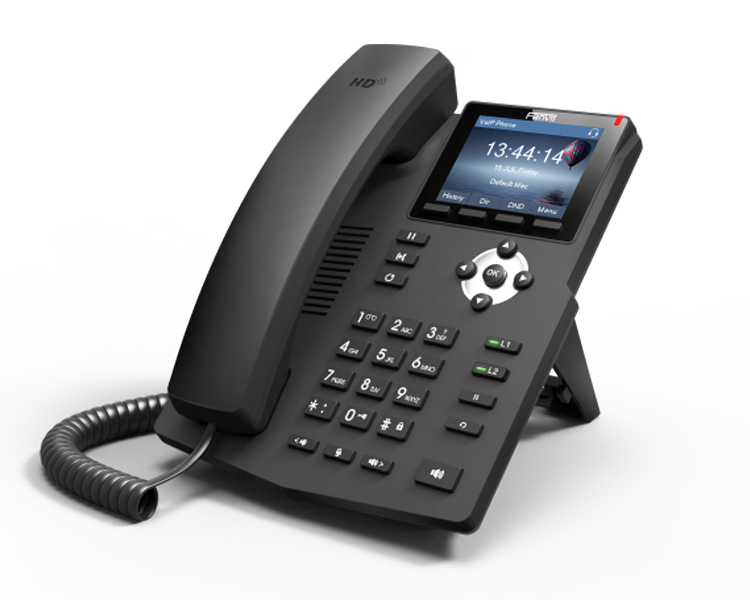

Fanvil X3S/P PoE VoIP Phone

The Fanvil X3S/P IP Phone is a PoE industrial masterpiece that offers superior user experience for home and office use. With an elegant appearance and intelligent software, the X3S/P is designed to optimise communication, whilst also fitting seamlessly into any desktop environment.

Fanvil X3S/P PoE VoIP Phone Key Features

  • 2 SIP lines
  • HD voice, full duplex speaker
  • PoE enabled
  • Colour LCD 320 x 240
  • EHS support for headsets
  • RJ9 headset port
  • Desktop/wall mount install options
  • Easy installation and configuration
  • High interoperability – compatible with major platforms: 3CX, Elastix, Asterisk, Xorcom, etc.

Supports EHS Wireless Headsets
The X3S/P supports EHS wireless headsets, making a professional enterprise VoIP phone.

  Supports EHS Wireless Headsets


Web Page with Mobile Phone
Simply scan the QR code on your X3S/P screen to get web page access on your mobile, anytime, anywhere!

  Web Page with Mobile Phone

3CX Certified

Fanvil X3S/P PoE IP Phone - Technical Specifications

Generic

  • 2 SIP Lines
  • HD Voice
  • Handset (HS) / Hands-free(HF) / Headphone (HP) mode (EHS support for Plantronics headsets)
  • Desktop / Wall-mount installation
  • Economical and Environmental friendly package
  • Industrial Standard Certifications: CE/FCC

Call Features

  • Call out / answer / reject
  • Mute / unmute (microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Call Forwarding (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (depending on server)
  • Redial
  • Do-Not-Disturb (per line / per phone)
  • Auto-Answering (per line)
  • Voice Message (on server)
  • Local 3-way Conference
  • Hot Line

Phone Features

  • Phone Accessibility Control by User PIN
  • Intelligent Phonebook (up to 500 entries total)
  • Remote Phonebook (XML/LDAP)
  • Intelligent Contact Number Matching / Filtering
  •  Call log (300 entries total, in/out/missed)
  •  Voice Message Waiting Indication (VMWI)
  •  Network Time Synchronisation
  •  Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Japanese, Russian, Italian, Turkish, Germany, Dutch, Spanish, Hebrew, Polish, French etc.

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
  • Wideband CODEC: G.722
  • Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

  • Physical: 10/100Mbps (X3S/P), 10/100/1000Mbps(X3G) Ethernet, dual bridged port for PC bypass
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP (Basic Unencrypted) / OpenVPN
  • VLAN
  • QoS

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • PPPoE
  • 802.1x
  • L2TP (Basic Unencrypted)
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR069

RFCs:

  • 354/1321/1350/1769/1889/1890/2131/2132/
    2616/2617/2661/2833/2976/3261/3262/3263/
    3264/3265/3268/3311/ 3489/3711/4346/4566/
    5630/5865

Deployment & Maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Backup/Restore
  • Auto/Manual Online Software Upgrade
  • Syslog

Physical Specifications

  • LCD x1: 2.4/2.8 inch (320x240) LCD colour screen
  • Keypad: 32 keys, including:
     - 4 Soft-keys
     - 12 Standard Phone Digits Keys
     - 5 Navigation Keys
     - 2 Line keys with tri-colour LED
     - 5 Function key
     - 3 Volume Control Keys, Up/Down/Mute (Microphone)
     - 1 Hands-free
  • HD Hands-free Speaker (0 ~ 7KHz) x1
  • HD Hands-free Microphone (0 ~ 7KHz) x1
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • RJ9 Phone Jacket x2: Handset x1, Headphone x1
  • RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 1 Enabled), PC x1 (Bridged to Network)
  • Main Chipset: Broadcom
  • DC Power Input: 5V/600mA
  • Working Temperature: 0 ~ 40℃
  • Working Humidity: 10 ~ 65%
  • Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
  • Colour: Black
  • Package Dimensions: 275x215x62mm (W x H x L)
