Please see the Fanvil X7A

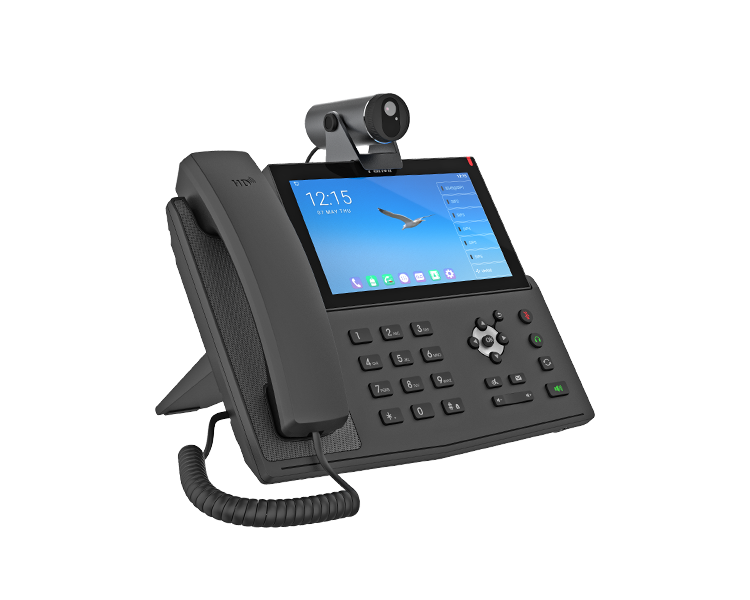

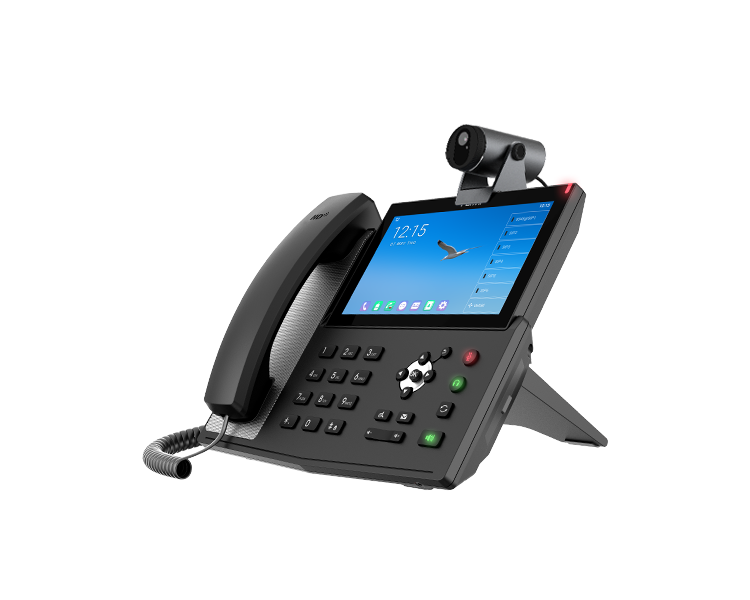

Fanvil X7A Android IP Phone with Camera

The Fanvil X7A with camera is a high-end enterprise IP phone with Android 9.0 OS and provides a more intelligent and smoother touch operation experience for the users. 112 DSS keys on the 7-inch colour touch screen, supported 3rd party apps, built-in WiFi, built-in Bluetooth allows daily communication smarter and simpler. Matching an adjustable USB camera, Fanvil X7A with camera can deliver a superb audio and video for the group conference.

Fanvil X7A with camera Key Features

  • 20 SIP lines, 5-way audio conference, hotspot
  • Support an external Fanvil USB camera (optional).
  • 112 one-touch DSS keys on 7” capacity colour touch screen
  • HD audio with Harman speaker
  • Built-in Bluetooth 4.2 and 2.4G/5G WiFi
  • Support video codec H.264 and 3-way video conference.
  • Dual Gigabit ports, integrated PoE
  • Stand with 2 adjustable angles of 40 and 50 degrees
  • Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.

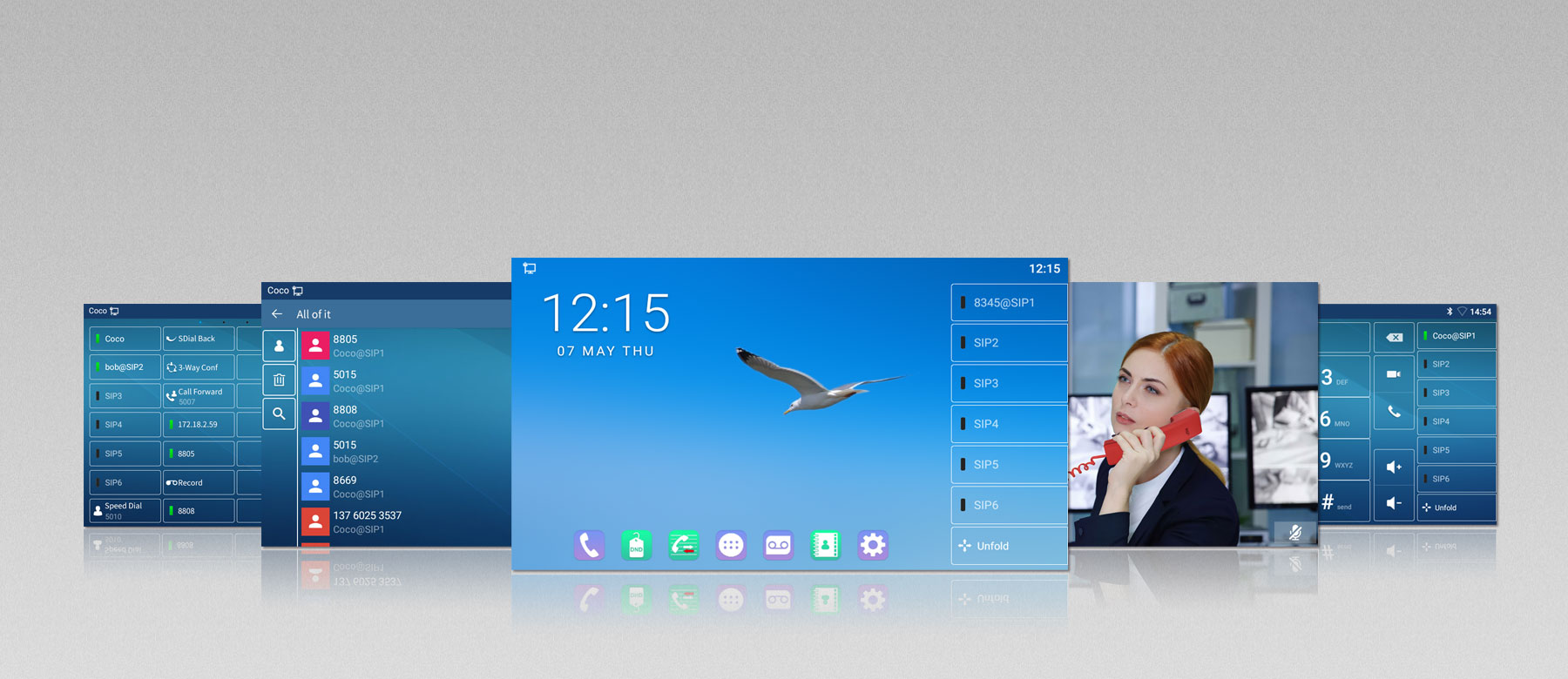

Optimised Android 9.0 Operation System
Android 9.0 OS in Fanvil X7A supports a greater compatibility and more powerful functions.
-Movable icons on interface provide the direct access to frequently-used functions.
-Intelligent touch full keypad with interesting Emoji.

Android 9.0 Operation System

HD Video Call with Fanvil CM60 USB Camera
Matching an optional Fanvil CM60 camera, Fanvil X7A supports the 3-way video conference with HD full-screen image even ina dark environment. Featuring a clip and USB cord, Fanvil CM60 can be installed flexibly on phone, PC or desk.*Fanvil CM60 is coming soon.

HD Video Calling

112 DSS Keys on a 7" Colour Touch Screen
Without any expansion module, Fanvil X7A possesses 112 programmable DSS keys which can be configured as speed dial, call forwarding, BLF, group broadcasting function.

7

HD Audio with Harman Speaker
Featured with Harman Speaker, Wideband Codec G.722 and Audio Codec Opus, Fanvil X7A keeps bringing the most premium sound for the users.

Greater Collaboration with Built-in WiFi and Bluetooth
-No more messy cables on table with built-in WiFi -Enable multi-tasking with Bluetooth headset

Fanvil X7A with camera - Technical Specifications

Generic

  • 20 SIP Lines
  • HD Voice
  • Support receiving video call
  • PoE Enabled
  • 7-inch (1024x600) colour touch screen
  • Handset / Hands-free / Headset mode
  • Intelligent DSS Keys(Virtual buttons)
  • Optional External Power Supply

Operation System

  • Android 9.0 OS with higher security and better compatibility
  • Built-in Applications: Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music
  • Support 3rd Party Applications
  • Secondary Development of API

Phone Features

  • Local Phonebook (2000 entries)
  • Remote Phonebook (XML/LDAP, 2000 entries)
  • Intelligent Search for Contacts and Call Log
  • Call logs (In/out/missed, 1000 entries)
  • Black/White List Call Filter
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronisation
  • Built-in Bluetooth 4.2: Support Bluetooth headset/ Bluetooth of Mobile Device
  • Built-in WiFi:
    - 2.4GHz, 802.11 b/g/n
    - 5GHz, 802.11 a/n/ac
  • Support Recording
  • Action URL / Active URI
  • UaCSTA
  • Audio/Video Recording
  • SIP Hotspot
  • Group Broadcasting
  • Action Plan
  • Group listening

Call Features

  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (On server)
  • 5-way Audio Conference
  • Hot Line
  • Hot desking
  • BLF

Video

  • Video decoding: H.264
  • Video call resolution: CIF/VGA/4CIF/720P
  • Image format: JPEG/PNG/BMP
  • Video format: MP4
  • Bandwidth selection: 64kbps~4Mbps
  • Frame rate selection: 5~30fps
  • Video from remote site can be displayed in full screen
  • 3-way Video Call with External Camera Fanvil CM60
  • Optional Fanvil CM60 USB Camera:
    - 2 Mega Pixel
    - Plug and Play
    - Flexible Placement and Angle Adjustment
  • Video Preview

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.729AB, iLBC
  • Wideband Codec: G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO


Network

  • Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode:IPv4
  • IP Configuration: Static / DHCP
  • Network Access Control: 802.1x
  • VPN: OpenVPN (Requires third-party app support)
  • VLAN
  • LLDP
  • CDP
  • QoS

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • CDP
  • LLDP
  • PPPoE
  • 802.1x
  • OpenVPN (Requires third-party app support)
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069

Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Supports the third party communication APP
  • Supports Web, Telnet
  • Supports encrypted configuration files download with AES
  • Supports Web upgrade
  • Supports factory reset data

Physical Specifications

  • Colour: Black
  • LCD x1:7 inch (1024x600) colour touch screen
  • Keypad: 26 keys, including:
    - 5 Function keys (Hold, MWI, Mute, Headset, Redial)
    - 4 Navigation keys
    - 1 OK key
    - 1 Return key
    - 12 Standard Phone Digits keys
    - 2 Volume Control keys, Up/Down
    - 1 Hands-free key
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • Back Rack x1
  • RJ9 Port x2: Handset x1, Headset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • USB2.0 Port x1: Standard A, Connect with Flash Driver
  • Safety keyhole x1
  • Power: 5V/2A or PoE
  • Power Consumption (PoE): 1.596~11.86W
  • Power Consumption (Adapter): 0.907~9.38W
  • Working Temperature: 0~45ȭ
  • Working Humidity: 10~95%
  • Installation: Desktop Stand
  • Device Dimensions:
    - Desktop Stand (Angles 1): 268x185x189mm
    - Desktop Stand (Angles 2): 268x201x168mm
  • Gift Box Dimensions: 304x297x66mm
  • Outer CTN Dimensions: 616x358x329mm (10 PCS)
