Grandstream GWN7662 Indoor WiFi 6 Access Point

0 Based on 0 ratings.
Write a Review
04/05/2024 £97.80 exc. VAT
£117.36 inc. VAT
Availability:In stock for next day delivery
Qty:
Key Features
  • 5.38 Gbps wireless, 3.5 Gigabit wired speed
  • 5GHz 4x4 MU-MIMO with DL/UL OFDMA
  • Up to 175m coverage range

Pricing Volume Price Discounts

5+ £96.60
10+ £95.40
20+ £94.20

Shipping Shipping Options

Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 16:00.

Support Product install/setup

Want help installing this product? Add premium support to your order.

Downloads Documents & Manuals

SKU:GWN7662
Available Options:
  • Product Details
  • Reviews
  • White Papers / Case Studies

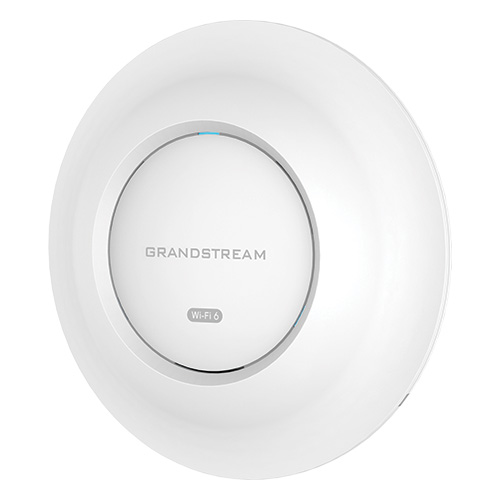

Grandstream GWN7662 Indoor WiFi 6 Access Point

The Grandstream GWN7662 access point is an advanced 802.11ax Wi-Fi 6 solution designed for small to medium-sized businesses, retail, hospitality, and education. It employs 4x4 MU-MIMO on the 5G band and 2x2 MU-MIMO on the 2.4G band, enhancing network speed and coverage for crowded environments.

Grandstream GWN7662 Key Features:

  • 5.38 Gbps wireless, 3.5 Gigabit wired speed
  • 5GHz 4x4 MU-MIMO with DL/UL OFDMA
  • Up to 175m coverage range
  • Supports 256 Wi-Fi clients concurrently
  • Advanced QoS for low-latency app performance
  • Anti-hacking secure boot, data lockdown via signatures
  • Self power adaptation for PoE/PoE+ detection
  • Embedded controller manages 50 local GWN APs; GWN.Cloud offers unlimited AP management; GWN Manager has premise-based software control.

Its installation and management are streamlined through a controller-less approach with an embedded controller in the web interface. Compatibility with GWN.Cloud and GWN Manager offers versatile cloud-based and on-premise Wi-Fi management. Notably, it seamlessly integrates with Grandstream's Wi-Fi IP phones for reliable voice-over-Wi-Fi setups.

The GWN7662 supports advanced QoS, low-latency applications, mesh networking, and accommodates up to 256 clients per access point. With dual Gigabit network ports and PoE/PoE+ support, it's an ideal choice for medium-sized wireless networks requiring solid performance.

Grandstream GWN7662 Technical Specifications

Wi-Fi Standards

  • IEEE 802.11 a/b/g/n/ac(Wave-2)/ax

Antennas

  • 6 single frequency internal antennas
  • 2.4GHz: 3.65dBi
  • 5GHz: 5.26dBi

Wi-Fi Data Rates

  • 5G:
    • IEEE 802.11ax: 8.6Mbps to 4804Mbps
    • IEEE 802.11ac: 6.5 Mbps to 3464 Mbps
    • IEEE 802.11n: 6.5Mbps to 600Mbps
    • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 2.4G:
    • IEEE 802.11ax: 8.6Mbps to 573.5Mbps
    • IEEE 802.11n: 6.5Mbps to 300Mbps
    • IEEE 802.11b: 1, 2, 5.5, 11 Mbps
    • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

  • 2.4GHz Radio: 2412 - 2484 MHz (WIFI)
  • 5GHz Radio: 5180 - 5825 MHz
  • *Not all frequency bands can be used in all regions

Channel Bandwidth

  • 2.4G: 20 and 40 MHz
  • 5G: 20, 40, 80 and 160MHz

Wi-Fi and System Security

  • WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

  • 2×2:2 2.4GHz (MU-MIMO)
  • 4×4:4 5GHz (MU-MIMO)

Coverage Range

  • Up to 175 meters
  • *Coverage range can vary based on environment

Maximum TX Power

  • 2.4G: 25dBm
  • 5G: 27dBm
  • *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

  • 2.4G:
    • 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
    • 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
    • 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
    • 802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @MCS11
  • 5G:
    • 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
    • 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
    • 802.11ac 20MHz: -67dBm@MCS8; 802.11ac HT40:- 63dBm @MCS9;
    • 802.11ac 80MHz: -59dBm @MCS9; 802.11ax 20MHz: -60dBm @MCS11;
    • 802.11ax 40MHz: -58dBm @MCS11; 802.11ax 80MHz: -56dBm @MCS11

SSIDs

  • 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)

Concurrent Clients

  • 256

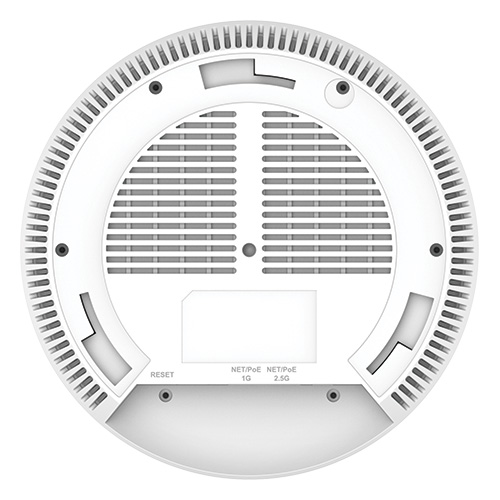

Network Interfaces

  • 1x autosensing 10/100/1000 Base-T Ethernet Port
  • 1x autosensing 10/100/1000/2500 Base-T Ethernet Port

Auxiliary Ports

  • 1x Reset Pinhole
  • 1x Kensington lock

Mounting

  • Indoor wall mount or ceiling mount, kits included

LEDs

  • 3 tri-color LEDs for device tracking and status indication

Network Protocols

  • IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

  • 802.11e/WMM, VLAN, TOS

Network Management

  • Embedded controller manages up to 50 local GWN APs
  • GWN.Cloud offers free cloud management for unlimited GWN APs
  • GWN Manager provides premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

  • Supports 802.3az PoE 802.3af/ 802.3at;
  • Maximum Power Consumption: 16W

Environmental

  • Operation: -10°C to 45°C
  • Storage: -30°C to 60°C
  • Humidity: 5% to 95% Non-condensing

Physical Unit

  • Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H);
  • Unit Weight: 540g

Entire Package

  • Dimension: 258mm(L)x247mm(W)x86mm(H);
  • Entire Package Weight: 910g

Package Content

  • GWN7662 indoor Wi-Fi 6 Wireless AP
  • Mounting Kits
  • Quick Installation Guide

Compliance

  • FCC, CE, RCM, IC, UKCA
