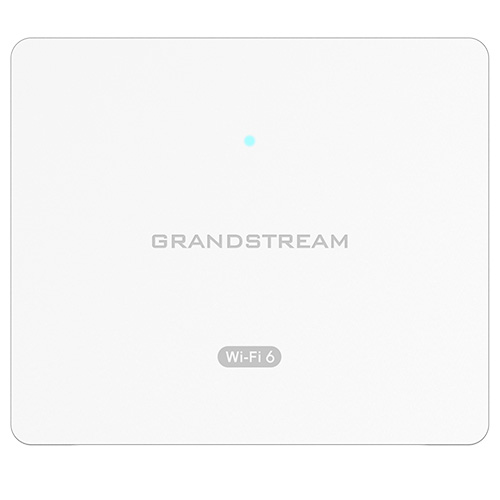

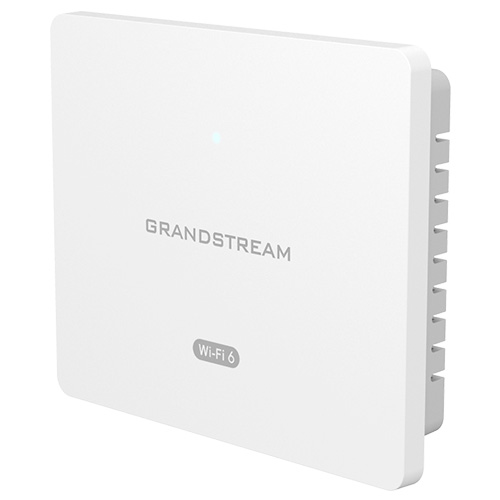

Grandstream GWN7604 Technical Specifications

Mechanical

• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax
• Antennas:
  2 x dual-band internal antennas,1x 5G internal antenna
  Antenna1, 2.4G gain 3.0dBi, 5G gain 3.5dBi
  Antenna2, 2.4G gain 3.5dBi, 5G gain 3.0dBi
  5G Antenna, gain 4.5dBi
• Wi-Fi Data Rates:
  5G:
  IEEE 802.11ax: 7.3 Mbps to 2402 Mbps;
  IEEE 802.11ac: 6.5 Mbps to 1732 Mbps;
  IEEE 802.11n: 6.5Mbps to 300Mbps;
  IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  2.4G:
  IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
  IEEE 802.11n: 6.5Mbps to 300Mbps;
  IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
  IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
• Frequency Bands:
  2.4 GHz Radio: 2412 – 2483.5 MHz
  5GHz Radio: 5150 - 5895 MHz
  *Not all frequency bands can be used in all regions. The band 5150-5350 MHz is restricted to indoor use only in all EU states.
• Channel Bandwidth:
  2.4G: 20 and 40 MHz
  5G: 20, 40, 80, and 160 MHz
• System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
• MU-MIMO:
  2×2:2 2.4GHz
  3×3:2 5GHz
• Coverage Range: Up to 100 meters *Coverage range can vary based on environment
• Maximum TX Power
  5G: 26dBm
  2.4G: 24dBm
  *Maximum power varies by country, frequency band, and MCS rate
• Receiver Sensitivity
  5G
  802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
  802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
  802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
  ; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @ MCS11;802.11ax 160MHz: -52dBm@ MCS11
  2.4G
  802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
  802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
  802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;
• SSIDs: 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
• Concurrent Clients: 256

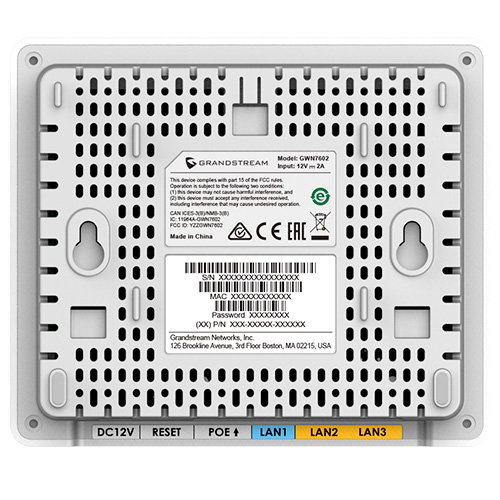

• Network Interfaces:
  1 x 10/100/1000M uplink Ethernet port with POE/POE+
  2 x 10/100/1000M Ethernet port with PSE
  1 x 10/100/1000M Ethernet port
• Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock
• Mounting: Indoor wall mount, kits included
• LEDs: 1x tri-color LEDs for device tracking and status indication
• Network Protocols: IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS: 802.11e/WMM, VLAN, TOS
• Network Management
  Embedded controller can manage up to 50 local GWN APs
  GDMS Networking offers a free cloud management platform for unlimited GWN APs
  GWN.Manager offers premise-based software controller for up to 3,000 GWN APs
• Power and Green Energy Efficiency
  PoE 802.3af/ 802.3at
  PSE max output: Total 12W power budget for LAN2/LAN3
  Maximum Power Consumption: 7.5W (Excluding PoE Output)
• Environmental:
  Operation: 0°Cto 45°C
  Storage: -10°C to 60°C
  Humidity: 10% to 90% Non-condensing
• Physical:

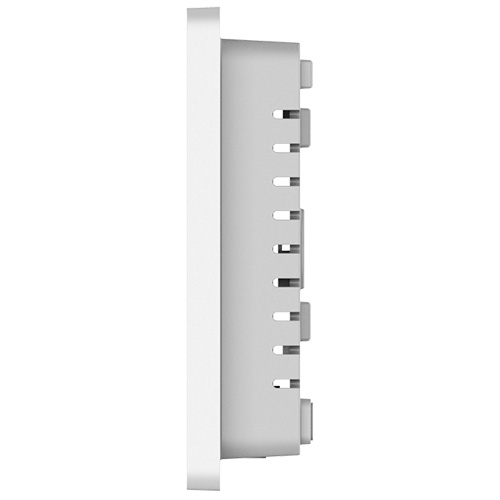

  Unit Dimension: 135 x 115 x 30mm; Unit Weight: 253g
  Entire Package Dimension:171 x 140 x 33mm ; Entire Package Weight: 358g
• Package Content: GWN7604 AP, Mounting Kits, Quick Installation Guide
• Compliance: FCC, CE, RCM, IC
