Grandstream GXP1630 Small Business Gigabit IP Phone
5 Based on 3 ratings.
|
27/01/2021
/grandstream-gxp1630-small-business-gigabit-ip-phone-p-6350.html
£57.00 exc. VAT
Availability:In stock for next day delivery
Key Features
- 4-way audio conferencing
- 132x64 backlit LCD display
- 10/100/1000mbps network ports
Pricing
Volume Price Discounts
No volume pricing discounts available
Shipping
Shipping Options
Shipping costs are calculated based on weight and destination during checkout. For next day delivery our cut off is 15:30.
Support
Product install/setup
Downloads
Documents & Manuals
SKU:GXP1630
|
|
Available Options:
Available Product Options:
Compatible Headsets: |
|
Compatible Wireless Headsets: |
|
- Product Details
- Specification
- Reviews
- White Papers / Case Studies
- Questions
Grandstream GXP1630 Small Business Gigabit IP Phone
The Grandstream GXP1630 is a powerful IP phone for small-to-medium businesses. With a 132x64 backlit LCD display, users of this Linux Based phone can enjoy easy viewing as well as great features including HD audio, 3 XML programmable soft keys and integrated PoE, making it an excellent and reliable office phone.
Grandstream GXP1630 Key Features
- 3 SIP accounts
- HD audio
- Integrated PoE
Grandstream GXP1630 - Technical Specifications
Protocols/Standards
- SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, CDP/SNMP/RTCP-XR
Network Interfaces
- Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE
Graphic
- Display 132 x 64 backlit graphical LCD display
Feature Keys
- 3 line keys with dual-colour LED and 3 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME
Voice Codecs
- Support for G.711µ/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
Telephony Features
- Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 4-way conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over
Headset Jack
- RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio
- Yes, HD handset and speakerphone with support for wideband audio

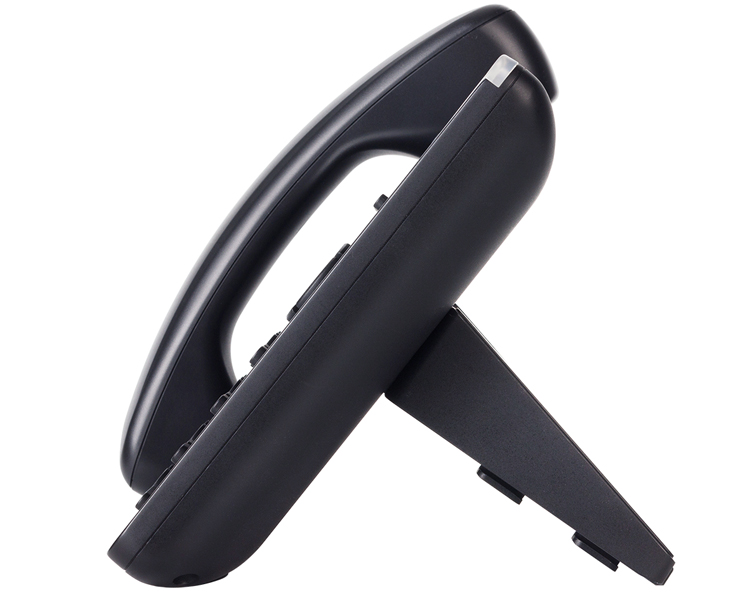

Base Stand
- Yes, 2 angled positions available, wall mountable
Wall Mountable
QoS
- Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
Security
- User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Multi-language
- English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more
Upgrade/Provisioning
- Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file, FTP/FTPS
Power and Green Energy Efficiency
- Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE)
Physical
- Dimension: 222.5mm (L) x 208.5mm (W) x 76.2mm (H) (with handset)
- Unit weight: 0.8kg
- Package weight: 1.2kg
Temperature and Humidity
- Operation: 0°C to 40°C
- Storage: -10°C to 60°C
- Humidity: 10% to 90% Non-condensing
Package Content
- GXP1630 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, brochure, GPL License
Compliance
- FCC: Part 15 (CFR 47) Class BCE : EN55022 Class B, EN55024 Class B; EN61000-3-2, EN61000-3-3, EN60950-1RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1
