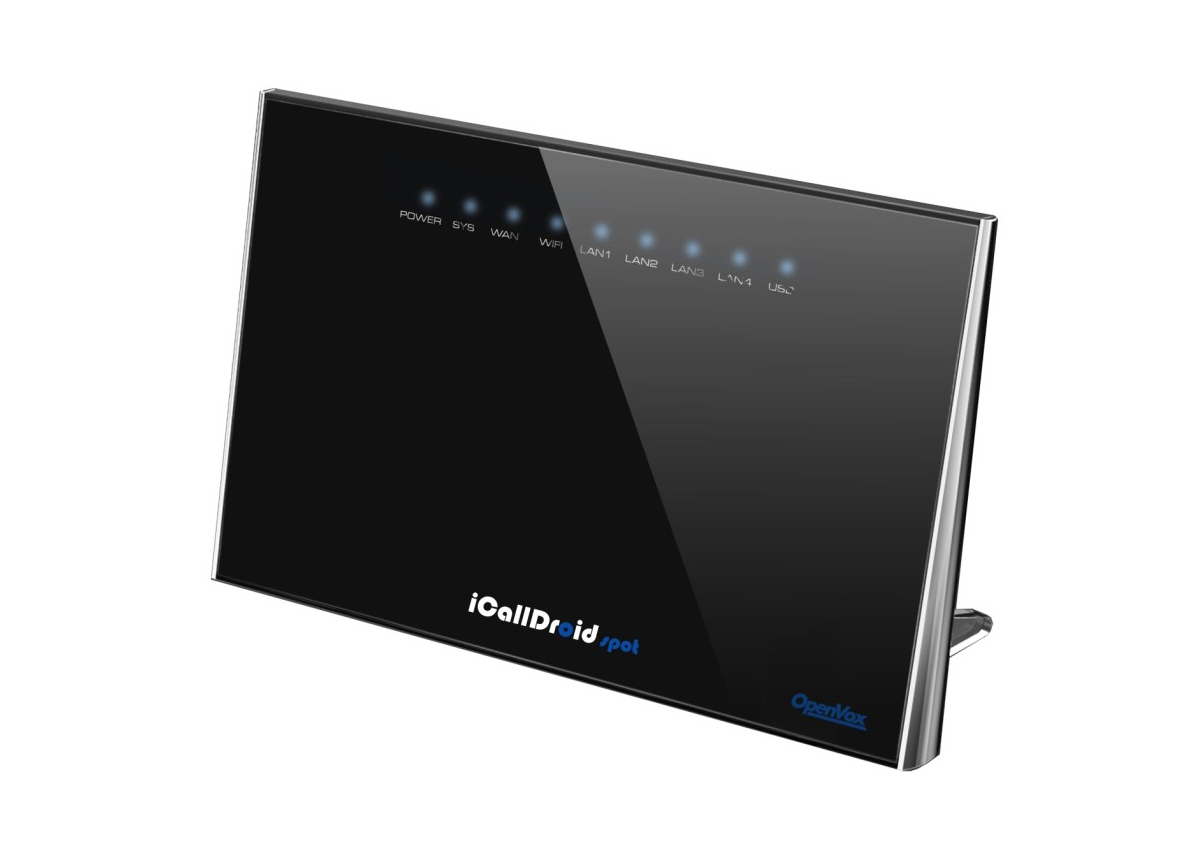

OpenVox IPPBX iCallDroid spot

The OpenVox IPPBX iCallDroid spot is the SOHOs IPPBX based on Asterisk.It is an ideal system for small businesses and home offices which require a pint-sized yet powerful on-premise WiFi router IP PBX.

OpenVox IPPBX iCallDroid spot Features

  • 300M WiFi Router + IP PBX
  • Support standard SIP protocols and compatible with multitudinous SIP phones
  • Friendly User Interface
  • Design for and SOHOs
  • Available for OEM

CallDroid spot supports up to 4 concurrent calls with G.729 codec. The compact solid-state device supports 16 extensions and offers a wide range of IP PBX telephony features.

iCallDroid spot is based on a low-power but high performance MIPS processor and provides complicated communication features including the hardest HD communication protocol, complete router features and QoS (Ensure the voice quality in a case the bandwidth is not enough). Meanwhile, the feature of one touch to deploy makes the configuration much easier and more enjoyable.

OpenVox IPPBX iCallDroid spot Technical Specification

Specification Features

  • Processor: 580 MHZ MIPS
  • 64MB RAM/16MB FLASH
  • 1 RJ45 10/100MB Ethernet port WAN
  • 4 RJ45 Debug port LAN
  • Button: Reset Button, One Touch to auto deploy
  • USB2.0 interface
  • Internal 2T2R 3dBi
  • Power adapter: AC 100~240V input and DC 12V/1A output
  • Power consumption: 1.2-2.0W
  • Operating humidity: 10~95%
  • Operating temperature: 0~45°C
  • Size: 3cm* 10.5cm* 16cm
  • Weight: 350g

IP PBX Features

  • Support max 16 SIP extensions, 4 SIP concurrent calls
  • Ring Groups/Call Queues/VoiceMail/Follow Me
  • Voice Record(only upload the GSM file recording)
  • Support IVR voice multi-level menus, buttons to identify and IVR jump function based on time
  • Support as many as eight party call conference system and multiple independent conference rooms
  • Dial extension intelligence analysis, an extension for BLF support, MWI state
  • Audio codec:G.722, G.711U/A, G.729, GSM
  • Video codec: H263, H264
  • The SIP protocol: based on the TCP/UDP protocol, RFC3261
  • Support SIP Trunk: Registration mode, IP trunk mode
  • Support route setting and multiple devices cluster processing
  • Support background music
  • DTMF: In-Band, RFC2833, SIP Info
  • Support DMZ, uPNP, NAT-PMP

Network Features

  • WAN port: DHCP, Static IP and PPPoE
  • LAN port: Static IP only
  • Support DDNS
  • Support PPTP-VPN, dynamic DNS, firewall, QOS, etc
  • Transmitted power: 802.11n 300M 14dBm, 802.11g 54M 16dBm, 802.11b 11M 17-19 dBm
  • Support multiple security mode: WEP-Auto, WPA-PSK, WPA-PSK2
  • Password type: AES, TKIP
  • Diverse international standard time zone

Specifications Tab
