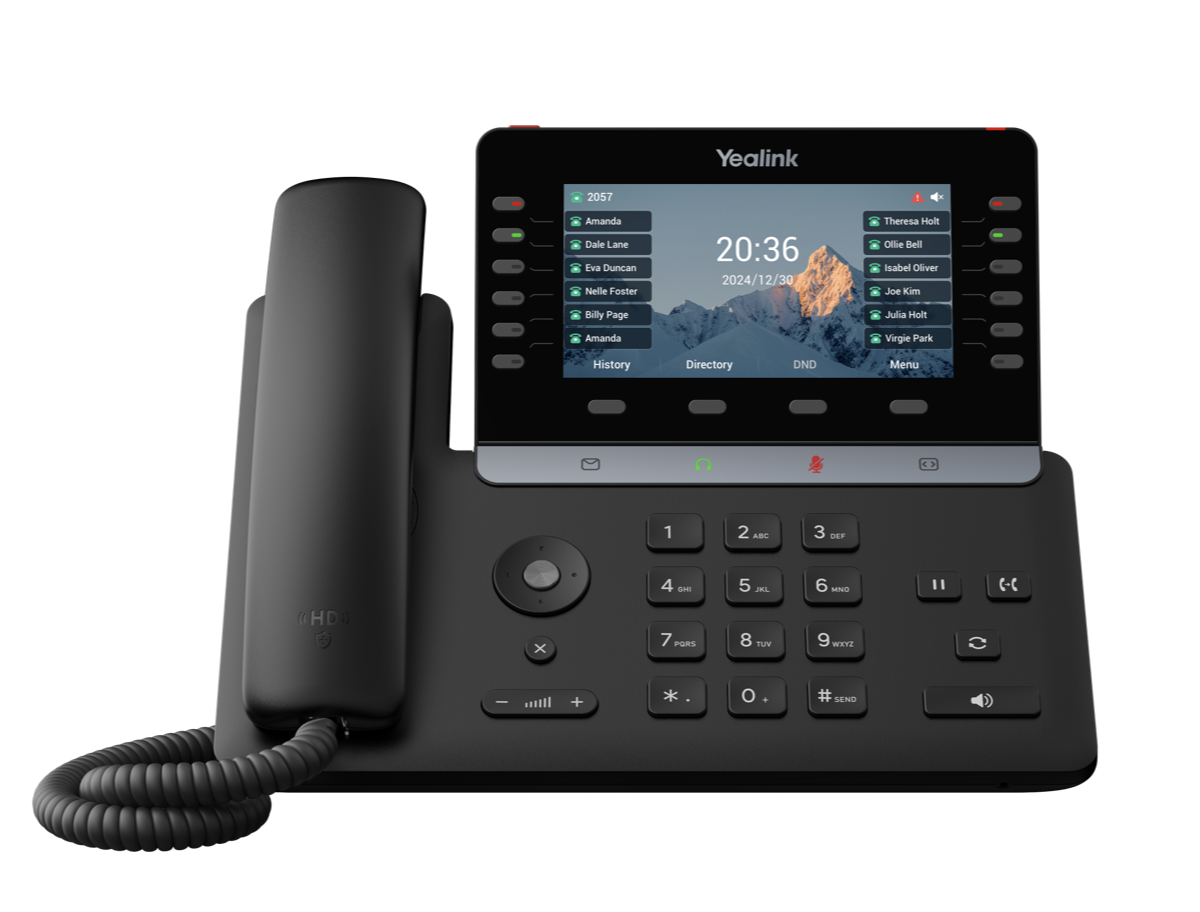

The Yealink T85W WiFi 6 VoIP/SIP Phone is a Prime Business Phone designed for busy executives and professionals, featuring an adjustable 5.5-inch colour LCD screen for comfortable viewing as well as built-in Bluetooth 5.0 and dual-band 2.4G/5G WiFi 6.

It uses a Hall switch handset for quiet operation in office environments, and Yealink's self-developed AI noise cancellation ensures superior audio quality during calls. Ultra-high-definition sound and support for broadband audio codecs provides realistic call audio. Running on Linux 6.1 with a TEE hardware encryption solution, it offers secure storage.

The T85W is also compatible with a wide range of Yealink headsets, supports configuration and upgrades through the LCD, and works with headsets featuring wearing detection for intelligent channel switching.

Yealink T85W Technical Specifications:

Audio Features

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Acoustic Shield
• Smart Noise Filtering
• Audio codecs: AMR-WB (optional), G.722
• Narrowband codec: AMR-NB (optional), PCMU (G.711µ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Display and Indicator

• 5.5" 960 x 480 resolution screen
• 16-bit depth colour
• LED for call and message waiting indication
• Dual-colour (red or green) illuminated LEDs for line status information
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name, number, and photo
• Wallpaper
• Screensaver
• Supports both dark and light themes

Phone Features

• 16 VoIP accounts
• One-touch speed dial, hotline, mute, DND
• Call hold, call forward, call waiting, call transfer
• Group listening
• Emergency call
• Redial, call return, auto answer
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date/time manually or automatically
• Dial plan, XML Browser, action URL/URI
• RTCP-XR
• XML Browser, XML Push
• Custom DSS Key
• Accessibility features

Directory

• Local phone book with up to 1000 entries
• Blocklist
• XML/LDAP remote phone book
• Smart dialling
• Phonebook search/import/export
• Call history: All records/dialled/received/missed/forwarded

IP-PBX Features

• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Message Waiting Indicator (MWI)
• Voice messages, call park
• Call pickup, intercom, multicast
• Music on hold
• Call recording, mobile office, chief assistant
• Server-based recording function
• Visual mailbox user interface

Feature Keys

• 12 linekeys with LED keys (up to 60 DSS keys, 5 pages)
• 4 touch buttons: message, headset, mute, pagination (mute/headset/pagination button with indicator light)
• 4 function keys: call hold, call transfer, redial, hands-free
• 2 volume control keys
• 6 navigation keys

Interface

• Dual-port Gigabit Ethernet
• 2 x USB ports (Type-USB A, Type-USB C):
  • USB flash drive (not included)
  • Connecting a USB headset (sold separately)
  • Connecting to the colour screen expansion module (sold separately)
  • Wireless Headset Adapter EHS40 (sold separately)
• 1 x Security keyhole
• 1 x RJ9 (4P4C) handset interface
• 1 x RJ9 (4P4C) headset jack
• 1 x 5V power port
• Dual USB ports (2.0 compliant):
  • Supports Bluetooth headsets via BT51 (sold separately)
  • Supports connecting Yealink Bluetooth headset BH71/BH71 Workstation/BH71 Workstation Pro/BH72/BH76 via BT51 (sold separately)
  • DECT wireless headset (WH62 Portable/WH63 Portable - sold separately)
  • USB call recording through USB flash drive (not included)
  • USB headset (sold separately)
  • Expansion module EXP55 (sold separately)
  • Wireless Headset Adapter EHS40 (sold separately)
• Supports USB/Bluetooth connection to Yealink CP900/CP700 speakerphone/wireless headset UH38, and USB connectivity to Yealink wired headset UH34/UH36/UH37 (sold separately):
  • Basic functions: answer/end/mute call
  • Enhanced functions: audio optimisation/redial/call hold/volume synchronisation/multiple call control

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
• Auto-provision with PnP
• Broadsoft device management
• Zero-Sp-Touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log
• Supports Yealink Device Management Platform (YDMP/YMCS)

Network and Security

• Built-in Dual-Band WiFi:
  • Network standard: IEEE802.11a/b/g/n/ac/ax
  • Frequency band: 2.4GHz/5.0GHz
• Built-in Bluetooth 5.0:
  • Connecting Bluetooth headset (sold separately)
  • Connect your phone
  • Connect the headphones and the phone at the same time
  • Connect to PC as a PC peripheral
• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy is supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronisation using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• Supports SRTP protocol
• Supports TLS1.3
• HTTPS certificate manager
• Configuration file encryption (AES256)
• Supported authentication mechanisms: MD5/SHA1/SHA224/-SHA256/SHA384/SHA512
• OpenVPN, IEEE802.1X, L2TP VPN
• LLDP/CDP/DHCP VLAN
• ICE
• WPA2/WPA3
• Secure boot
• GARP (Generic Attribute Registration Protocol)
• Linux 6.1 version
• TEE hardware encryption solution

Other Physical Features

• Colour: Classic Grey
• Wall mountable (bracket sold separately)
• External Yealink AC adapter (sold separately): AC 100~240V input and DC 5V/2A output
• USB output currency: 5V 1A
• Power consumption (PSU, sold separately): 1.8W-3.8W
• Power consumption (PoE): 2.3W-4.7W
• Dimensions (W*D*H*T): 266 mm*226 mm*85 mm*54 mm
• Operating humidity: 10 - 95%
• Operating temperature: -10 to 45°C (+14 to 113°F)
• Storage temperature: -30 to +70°C (-22 to +158°F)

Package Contents

• 1 x Yealink T85W Phone
• 1 x 10W UK Power Supply
• 1 x Handset With Handset Cord
• 1 x Ethernet Cable (2m CAT5e UTP)
• 1 x Stand
• 1 x Quick Start Guide
